| Categories | Industrial Air Curtain Door |
|---|---|
| Brand Name: | NANYOO / OME / ODM |
| Model Number: | FM-6009GY / 6012GY / 6015GY |
| Certification: | CE/CB/CCC |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Price: | Negotiated |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 5000 pcs per month |
| Delivery Time: | 30-35 work days |
| Packaging Details: | Carton and foam protection |
| Product name: | Industrial Air Curtain / Commercial Door Air Curtain |
| Fan Type: | Centrifugal Flow Fan |
| Voltage: | 380V-400V / 220-240V |
| Type: | Industrial / Commercial |
| Cover Material: | Metal Casing for fire resistance |
| length: | 900 / 1200 / 1500 mm for options |
| Color: | White, Customer Requirements |
| Application: | Suitable for subway / basement / warehouse |
| Noise Level: | 45db |
| Warranty: | 5 Years For Motor, 1 Year For Main Parts |

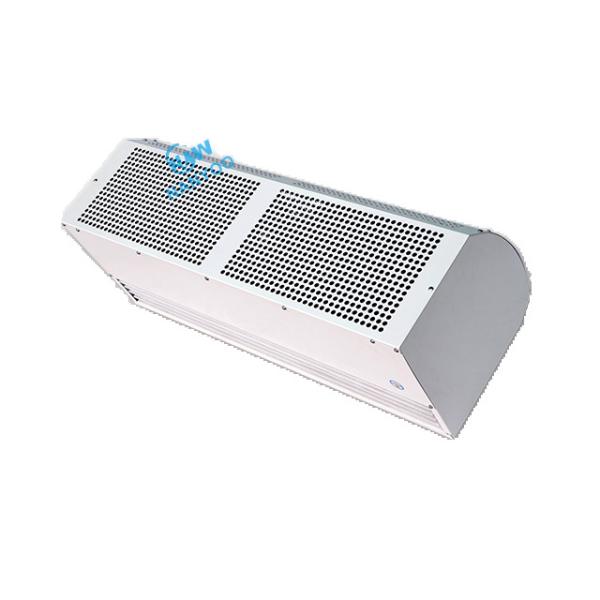

Wall Mounted Industrial Air Curtain Installation For Factory / Logistic Center
Centrifugal Type Industrial Air Curtain Door With Copper Motor / Greater Air Volume
Centrifugal Type Industrial Air Curtain - Specification
110V/60Hz , 110V/50Hz , 220V/60Hz are all available
| Model | Voltage/Frequency | Input Power(w) | Air Volume(CFM) | Noise(dB) | Unit Size(mm) |
| FM-6009GY | 220-240V/50HZ | 800 | 3500/2059 | 63 | 914*345*351 |
| FM-6012GY | 220-240V/50HZ | 1200 | 4650/2735 | 65 | 1218*345*351 |
| FM-6015GY | 220-240V/50HZ | 1600 | 5700/3353 | 66 | 1523*345*351 |
Main Features
1. Metal housing for fire resistance .
2. Powder coating for rust free .
3. New ventilating air duct gives a high pressure , and mouthing height up to 6-8 meters.
CUT OFF COMPLETELY AIRTIGHT
Optimization of centrifugal duct design, up to 326 large air volume, high air pressure, obvious effect of blocking,
Highlight its efficient performance.
Warehouse / Subway / Basement / Extra-large outlet / Adjustable wind direction
An air curtain is a product which creates a uniform stream of directed air, whether heated or unheated,
Across an opening to create a barrier inhibiting the transfer of heat and particulate matter from one zone to the other.
An appropriately designed system will create this barrier across the entire height and width of the opening to create the effects.
|
