2W030-08 Airtac Type Brass Solenoid Valve For Water Air 1/4'' 220V 110V 24V

Categories Brass Solenoid Valve
Brand Name: BRANDO
Model Number: 2W030-08
Certification: None
Place of Origin: Ningbo, China
MOQ: 100pcs
Price: Negotiation
Payment Terms: T/T, PayPal, Western Union
Supply Ability: 100000pcs per month
Delivery Time: about 10 to 15 working days
Packaging Details: Box, Carton, Pallet
Product Name: Solenoid Valve
Port Size: 1/8'', 1/4''
Orifice Size: 1.5mm, 2mm, 3mm, 4mm
Body Material: Brass
Seal Material: PTFE (Standard), FKM (Optional)
Working Medium: Water, Air, Gas, Liquid, etc
Function: 2 Way Normally Closed
Action: Direct Acting
Working Pressure: 0 to 25 bar
Voltage: 220VAC, 110VAC, 24VAC, 24VDC, 12VDC
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

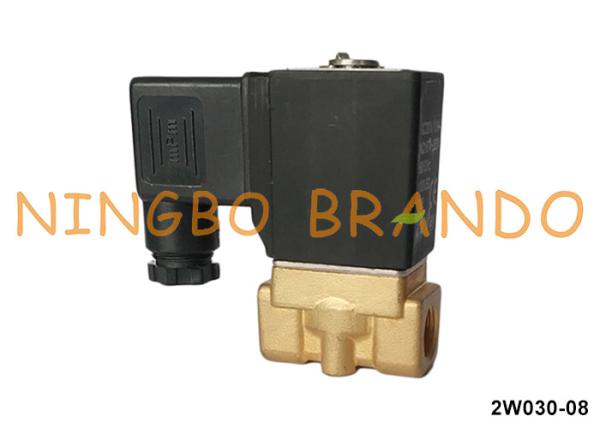

2W030-08 Airtac Type Brass Solenoid Valve For Water Air 1/4'' 220V 110V 24V

2W030-08 Airtac Type Brass Solenoid Valve

Product Features:
1. Working Medium: Water, Air, Gas, Liquid, etc
2. Working Pressure: 0 to 25 bar
3. Medium Temperature: PTFE (-25 to +180ºC), FKM (-10 to +150ºC)
4. Port Size: G1/8'', G1/4''
5. Orifice Size: 1.5mm, 2mm, 3mm, 4mm
6. Body Material: Brass
7. Diaphragm Material: PTFE (Standard), FKM (Optional)
8. Operation: Direct Acting
9. Function: 2 Way Normally Closed
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data:
BRANDO Model
Ref No
Port
Orifice
(mm)
CV
Working Pressure
(bar)
Function
Body
Seal
Voltage
2W015-06
2WX030-06
G1/8''
1.5
0.1
0 to 25
2 Way NC
Brass
PTFE
FKM
220VAC
110VAC
24VAC
24VDC
12VDC
2W015-08
2WX030-08
G1/4''
2W020-06
2WH030-06
G1/8''
2
0.18
0 to 20
2W020-08
2WH030-08
G1/4''
2W030-06
2W030-06
G1/8''
3
0.33
0 to 10
2W030-08
2W030-08
G1/4''
2W040-06
2WL030-06
G1/8''
4
0.55
0 to 5
2W040-08
2WL030-08
G1/4''

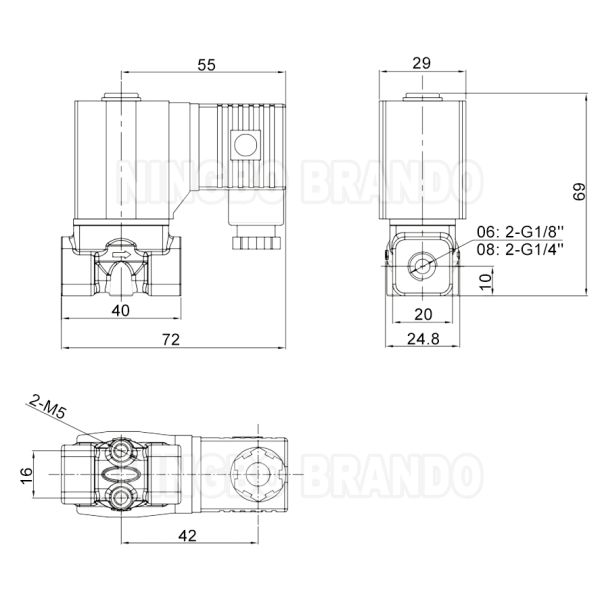

Main Dimension:
Dimension logo

Our Production:

Solenoid Valve Production

More Solenoid Valves:

2W160-15
High Pressure Solenoid Valve 200 bar (1)
PTFE Solenoid Valve (2)

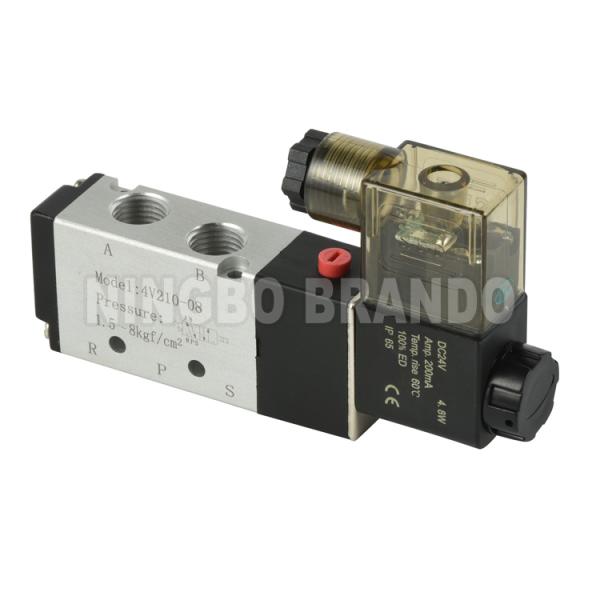

4V210-08 (2)
