Vertical Multi Stage Centrifugal Pump 220V-380V For Water Supply

Professional Vertical Multi-stage Centrifugal Pump for Water Supply Pump

Advantages

1. Vertical type adopts excellent hydraulic model and advanced manufacturing technology, which greatly improves the performance and the service life.
2. Because the shaft seal adopts the mechanical seal made of hard alloy and fluorine rubber, it can improve the reliability of the pump operation and the temperature of the conveying medium.

3.High quality pump corecomponents.Multi-stage impeller interlockingminimizes the gap between eachstage impeller, improves the hydrau-lic efficiency of impeller, and ensurethe stability, reliability and high effi-ciency of pump core components.

4.Cartridge seal;Quick replacement, easy installationand safe operationMechanical seal have the advantagesof high temperature resistance, longservice life and easy replacementthan ordinary seal.

Usage

Water supply: water plant filtration and transportation, water plant division, supercharging in charge, supercharging in high-rise buildings.

Industrial pressurization: process water system, cleaning system, high pressure flushing system, fire protection system.

Water treatment: ultrafiltration systems, reverse osmosis systems, distillation systems, separators and swimming pool water

treatment systems.

Irrigation: field irrigation, sprinkler irrigation, drip irrigation.

Material	Cast iron/Stainless Steel(SS304/SS316L/SS904)
Seal Material	Graphite/ silicon carbide
Max. Flow	240m³/h / 1057GPM
Max. Head	217m FOR CDL (F)12
Temperature type	-15 to 180℃
Max. rev	2950rpm
Motor Power	0.37KW~110KW
Voltage	220V,380V
Frequency	50/60HZ
Max working pressure	4Mpa
Insulation class	F
Connection	Flange/Thread
Warranty	2 years

Application

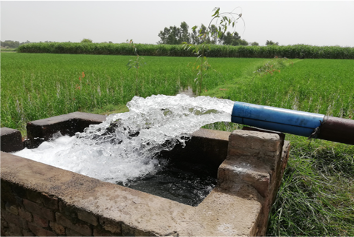

Farming Water Supply

Industrial Water Boosting

Domestic Water Supply

Industrial Conveyance

Water Treatment

Agricultural Irrigation

Workshop On-site

Details Images

Multi-stage impeller pump

Tight connection and easy installation

Sealed junction box

The prevention of rope breakage and rustproof design

Stainless steel body

Strong Anti-corrosion and anti-rust ability

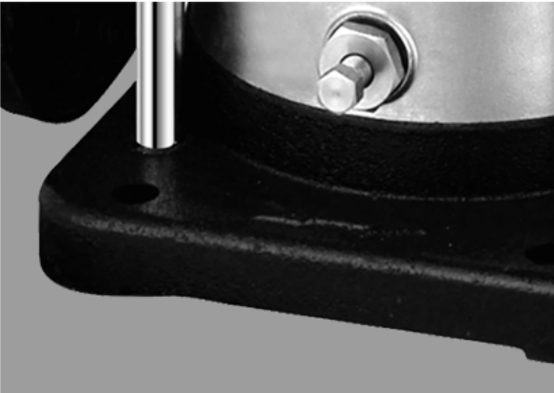

Reinforced foundation
Collapse-proof design safe and stable

Why Choose Us

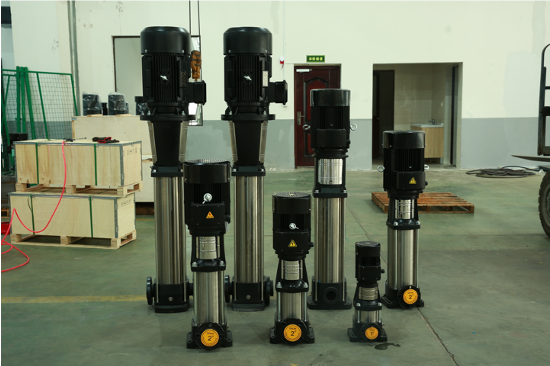

Factory Tour
