| Categories | Titanium Flange |
|---|---|
| Brand Name: | LHTi |
| Model Number: | LH-WN |
| Certification: | ISO9001, TUV etc. |
| Place of Origin: | Baoji, China |
| MOQ: | 1 piece |
| Price: | US dollar $25/pc--US dollar $85/pc |
| Payment Terms: | L/C, D/P, T/T, Western Union，paypal |
| Supply Ability: | 10000 kg per month |
| Delivery Time: | 3-15 work days |
| Packaging Details: | Wrapped by foam contained in plywood box for export |
| Material:: | Titanium Gr2 Gr5 Gr7 |
| Type:: | WN (weld Neck Flange) |
| Standard:: | ASME/ASTM B16.5 |
| Class:: | CL300 |
| Size:: | 2" Sch.20s |
| Quality Test:: | UT,PT Etc. |
| MOQ:: | 1PC |
| The Third Party Test:: | TUV,SGS,BV Etc. |
| Company Info. |
| Baoji Lihua Nonferrous Metals Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

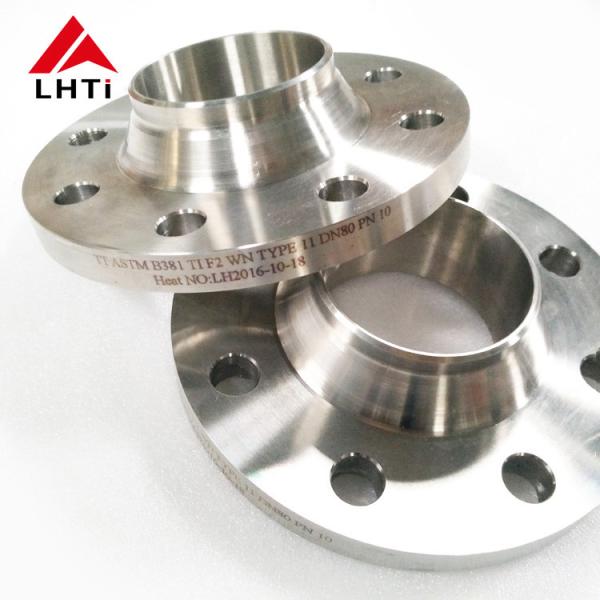

ASTM B381 titanium Gr F2 Welding Neck Flange Titanium Gr2 Raised Face Flange BLRF
Titanium Grade 2 Flanges
Product Name: Titanium welding neck flange
Type:WN
Standard: ASME B16.5
Material: Gr2
Unit Price: $25usd/pc-$85usd/pc
Sealing Surface: RF, FF, TG, RJ etc.
Size: NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure: 150#-2500#
Surface: Polished
Technique: Forged and CNC Machined
Inspection: UT% , PT%
Certificate: ISO9001, TUV etc.
Chemical composition of Titanium grade 2 flanges (Wt%)
| ASTM No. | Fe max | O max | N max | C max | H max | Pd | Al | Bal |
| Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Physical Properties (Min)
| ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation min % | ||
| ksi | Mpa | ksi | Mpa | |||
| Grade 2 | Unalloyed Ti ("Pure") 50A -CP2 | 64 | 440 | 46 | 320 | 18 |

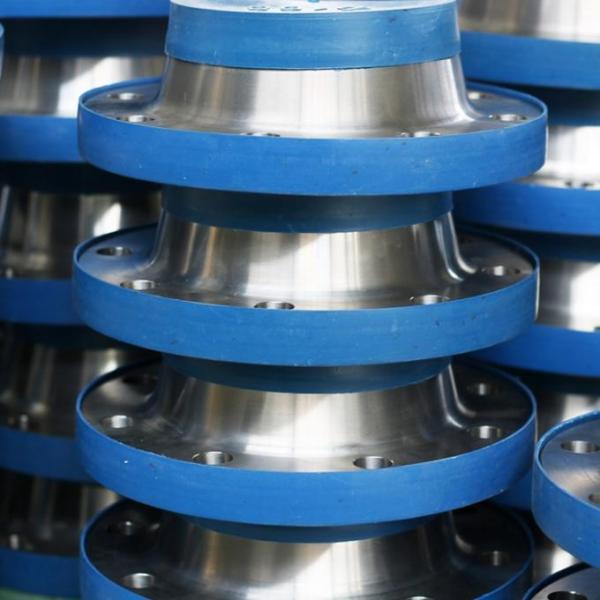

Detailed pictures
Practical application of Titanium grade 2 flanges:
Our Factory
Our factory advantages:
The stock of commonly used titanium flanges is sufficient;
There are many titanium flange blanks, so production time is short;
There is our own machines in factory ,so titanium flange price is low, and quality is high.
Welcome to contact us in any time !

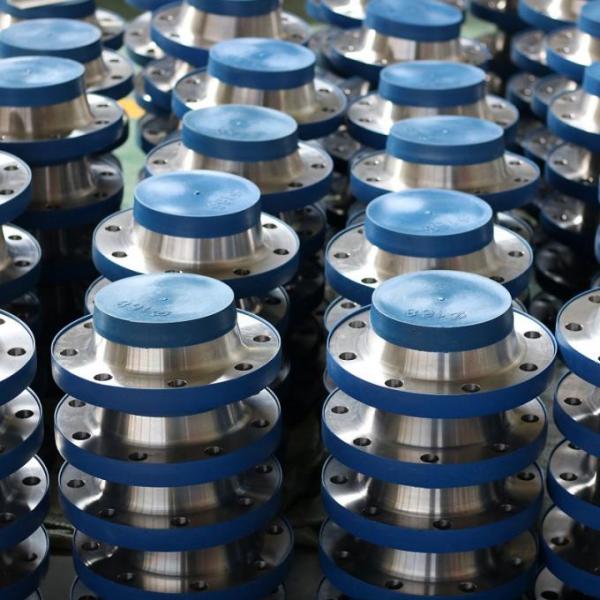

Stock
Quality Inspection
Packaging
About our company:
|
