| Categories | Thermal Conductive Gel |
|---|---|
| Brand Name: | ZIITEK |
| Model Number: | TIF015-07S |
| Certification: | UL and RoHs |
| Place of Origin: | China |
| MOQ: | 1000pcs |
| Price: | negotiation |
| Supply Ability: | 10000/day |
| Delivery Time: | 7-15work days |
| Packaging Details: | 1000tubes |
| Name: | Manufacturer Hot Sale Thermal Conductive Gel Thermally Conductive Gel With Ultra-High Thermal Conductivity 1.5W Thermal Gel |
| Specific Gravity: | 2.5 g/cm3 |
| Color: | Green |
| Continuous Use Temperature: | -45~200℃ |
| Good thermal conductive: | 1.5 W/mK |
| Dielectic breakdown: | 200 V/mil |
| Flame Rating: | V-0 |
| Keywords: | Thermal conductive gel |
| Company Info. |
| Dongguan Ziitek Electronic Materials & Technology Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Manufacturer Hot Sale Thermal Conductive Gel Thermally Conductive Gel With Ultra-High Thermal Conductivity 1.5W Thermal Gel

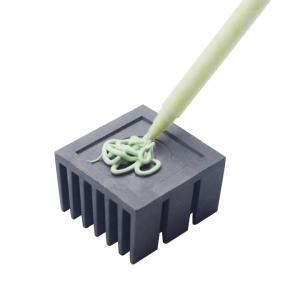

TIFTM015-07 is a soft silicone putty thermal gap filler,which blend with exclusive formula,that offer superior thermal performance, and compressibility. Due to TIFTM015-07 is made by high vicosity silicon oil ,that can prevent thermal formula seprate from it. Besides ,compared with traditionally thermal pad, it can control bonded shifiting issue much better.
TIFTM015-07 operation mold is simliar as grease ,such as silkprint and screen print or automatic injected facility. TIF015-07 can be applied on chip micro processor,PPGAs,Micro BGA package,BGA package,DSP chip,LED lighting and other high power electric component .
TIF015-07-Specification-sheet.-pdf.pdf
Application
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
Feature
> Thermal conductivity: 1.5W/mK
> Soft, very low compression
> Low thermal inpedance
> Operate automaticly
> Proven long-term reliability
| TIFTM015-07 Property | |||
| Color | Green | Visual | |
| Construction & Composition | Ceramic filled silicon material | ********** | |
| Viscosity | 4000 Pa.s | GB/T 10247 | |
| Specific Gravity | 2.5 g/cc | ASTM D297 | |
| Thermal conductivity | 1.5 W/mK | ISO 22007-2 | |
| Thermal diffusivity | 0.847 mm2/s | ISO 22007-2 | |
| Specific heat capacity | 2.2 MJ/m3K | ISO 22007-2 | |
| Continuous Use Temperature | -45 ~200°C | ****** | |
| Dielectric breakdown strength | 200 V/mil | ASTM D149 | |
| Flame Rating | 94V0 | E331100 | |
| Outgassing,%TML | 0.90% | ASTM E595 | |
Package :
30 cc/pc, 98 pc/box; 300 cc/pc 6 pc/box
We offer the custom packaged in syringes for automated despensing applications.
Please contact us for confirming.
