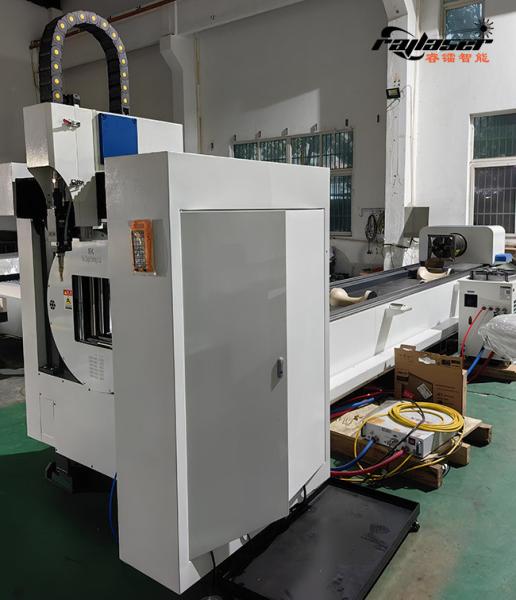

High efficiency Tube Laser Cutting Machine for Hand Railing Windows Metal Furniture cnc laser pipe cutting machine

Machine Configuration

Technical Specification

2) The Crucial Details

The design of a machine is pivotal to its performance

And We build pride by our craftsmanship.

Our Tube Laser Cutting Machine delivers unmatched precision and performance for industrial metal fabrication. Equipped with top-tier components like Raycus/IPG laser sources, Yaskawa servo motors, and HIWIN rail guideways, this machine ensures ≤0.03mm positioning accuracy and ≤0.02mm repeatability, making it ideal for high-demand applications in Southeast Asia, Saudi Arabia, and欧美 (Europe & America).

Key Features & Advantages

✔ Ultra-Precise Cutting – With ≤0.02mm repeat positioning accuracy, it guarantees flawless cuts for tubes, pipes, and structural metals.
✔ High-Speed Performance – 100m/min max speed & 1.2G acceleration boost productivity without sacrificing precision.
✔ Premium Components – Features Raytools/Ospri cutting heads, Yaskawa servos, and MOTOVARIO reducers for long-lasting durability.
✔ Heavy-Duty Capacity – Supports 1500KG load-bearing, handling thick-walled tubes and large metal profiles.
✔ Energy-Efficient Cooling – Hanli/S&A chiller ensures stable laser performance even in high-temperature environments.

Applications

• Automotive & Aerospace – Precision-cut exhaust pipes, frames, and structural components.

• Construction & Architecture – Steel beams, handrails, and customized metal fittings.

• Industrial Machinery – Hydraulic tubes, conveyor systems, and mechanical parts.

• Oil & Gas – High-pressure pipelines and drilling equipment.

Why Choose Our Tube Laser Cutting Machine?

• Global Compliance – Compatible with Schneider/Shanghai Electric standards for worldwide use.

• Low Maintenance – Robust HIWIN rails & LEADER rack and pinion reduce wear and tear.

• Smart Control – O2 proportional valve (<10bar) ensures optimal gas pressure for clean cuts.

Ideal for manufacturers seeking high-speed, high-accuracy tube cutting, our machine enhances productivity while reducing material waste. Contact us today for a customized solution!

FAQ:

1. What laser sources does your machine support?

Our machine is compatible with Raycus, Max, and IPG fiber laser sources, ensuring high cutting precision and energy efficiency.

2. What is the positioning accuracy of this CNC tube laser cutter?

It offers ≤0.03mm positioning accuracy and ≤0.02mm repeatability, guaranteeing ultra-precise cuts for handrails, windows, and metal furniture.

3. Which brands are used for key components?

We use top-tier brands like Yaskawa/Inovance servos, HIWIN guideways, Schneider electrics, and Raytools/Ospri cutting heads for reliability.

4. What materials and thicknesses can it cut?

It easily cuts stainless steel, aluminum, carbon steel, and copper pipes, with optimal performance on thin to medium-thickness tubes.

5. What is the maximum workpiece length?

The Y-axis (6010mm) supports long workpieces, ideal for railings, window frames, and furniture parts.

6. Does it include a chiller system?

Yes, a Hanli/S&A chiller ensures stable laser operation and extends component lifespan.

7. Is training provided for operation?

Yes, we offer installation guidance and operational training for seamless integration into your production.

Shanghai Raylaser Intelligent Technology Co., Ltd. is located in Shanghai, the largest city in China. The economical and innovative centre of China.

        We are the high-tech enterprise dedicated to the research and development, production, and sales of laser application equipment.

       The main products include laser cutting equipment (flat cutting, pipe cutting, 3D cutting), welding equipment (platform welding, Robot welding, non-standard automatic special machine welding), electronics, environmental protection and dust removal, etc.

      The core team members mainly come from top domestic laser light source and system manufacturers. The team has been rooted in the Chinese laser industry for 17 years, witnessing the growth and development of the domestic laser industry, and has a deeper understanding of lasers and their applications.

        Raylaser is committed to manufacturing high-quality and cost-effective laser application equipment to serve new and old friends. At present, the products are mainly sold to domestic and Russian speaking regions, as well as overseas markets such as Brazil and Argentina.
