| Categories | Video Transmitter Module |
|---|---|
| Brand Name: | IWAVE |
| Model Number: | FDM-6600 |
| Certification: | CE, MIC |
| Place of Origin: | CHINA |
| MOQ: | 2pieces |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS/month |
| Delivery Time: | 3-7working days |
| Packaging Details: | Standard |
| Name: | 15km LOS Wireless Broadband Video Data Transmitting Module |
| Networking: | Point to multiple point,Point to Point |
| Frequency: | 800Mhz/1.4Ghz/2.4Ghz |
| Nodes: | 32nodes |
| Data Rate: | 30Mbps |
| Weight: | 50g |
| Communication Range: | 20km los and 1-3km nlos |
| Latency: | 15-25ms |
| Anti-jamming: | FHSS |
| Power input: | DC5V |
| Company Info. |
| IWAVE COMMUNICATIONS CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

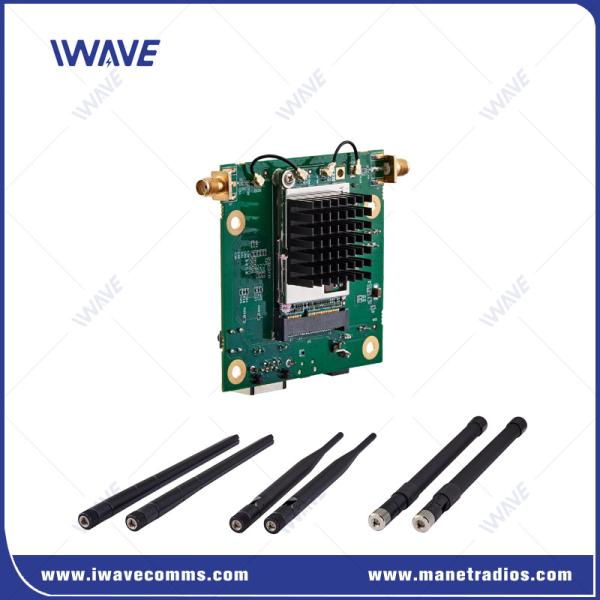

Model:FDM-6600
Introduction
The FDM-6600 is a wireless transmission product developed by IWAVE, featuring a mature System on Chip (SoC) chipset. It supports both point-to-point and point-to-multipoint communication, offering robust data transmission
capabilities for various applications.
Key Features
Node Configuration:
One master node can support up to 16 sub-nodes, sharing a total bandwidth of 30 Mbps for transmitting 1080P video.
Communication Standards:
Designed based on the TD-LTE wireless communication standard, employing OFDM (Orthogonal Frequency-Division Multiplexing) and MIMO (Multiple Input Multiple Output) technologies.
Operates independently, without relying on any carrier's base station.
Data Transmission:
Supports both Ethernet and full duplex TTL data transmission.
Control data transmission is prioritized over network signal transmission, ensuring vital control commands are processed first.
Anti-Interference Technology:
Utilizes automatic frequency hopping technology to enhance resistance to interference, significantly reducing overall system power consumption and the module's size.
Applications
The FDM-6600 is suitable for a variety of applications, including:
Surveillance Systems: For real-time video monitoring in security operations.
Broadcasting: Facilitating live video feeds in media production.
Industrial Automation: Enabling data transmission in smart manufacturing setups.
If you need further details or specific sections, just let me know!
Specification
| GENERAL | ||
| TECHNOLOGY | Wireless based on TD-LTE Technology Standards | |
| ENCRYPTION | ZUC/SNOW3G/AES(128) OptionalLayer-2 | |
| DATA RATE | 30Mbps(Uplink and Downlink) | |
| RANGE | 10km-15km(Air to ground)500m-3km(NLOS Ground to ground) | |
| CAPACITY | Star Topology, Point to 17-Ppint | |
| POWER | 25dBm (2w or 10w on request) | |
| LATENCY | One Hop Transmission≤30ms | |
| MODULATION | QPSK, 16QAM, 64QAM | |
| ANTI-JAM | Automatically Cross-Band frequency hopping | |
| BANDWIDTH | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz | |
| POWER CONSUMPTION | 5Watts | |
| POWER INPUT | DC5V | |
| SENSITIVITY | ||
| 2.4GHZ | 20MHZ | -99dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| FREQUENCY BAND | ||
| 2.4Ghz | 2401.5-2481.5 MHz | |
| 1.4Ghz | 1427.9-1467.9MHz | |
| 800Mhz | 806-826 MHz | |
| COMUART | ||
| Electrical Level | 2.85V voltage domain and compatible with 3V/3.3V level | |
| Control Data | TTL mode | |
| Baud rate | 115200bps | |
| Transmission Mode | Pass-through mode | |
| Priority level | Higher priority than the network port. When the signal transmission is crowed, the control data will be transmitted in priority | |
| Note:1. The data transmitting and receiving is broadcast in the
network. After successful networking, each FDM-6600 node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you need to define the format yourself | ||
| INTERFACES | ||
| RF | 2 x SMA | |
| ETHERNET | 1xEthernet | |
| COMUART | 1x COMUART | |
| POWER | DC INPUT | |
| INDICATOR | Tri-COLOR LED | |
| MECHANICAL | ||
| Temperature | -40℃~+80℃ | |
| Weight | 50grams | |
| Dimension | 7.8*10.8*2cm | |
| Stability | MTBF≥10000hr | |
|
