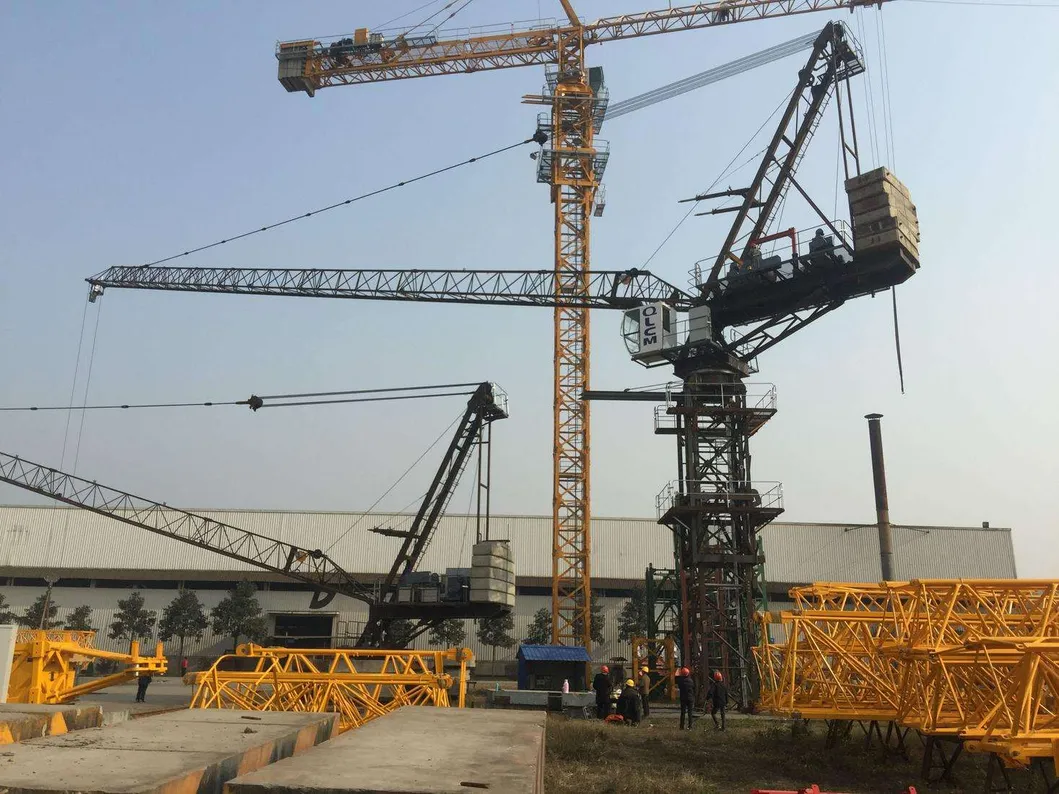

Chinese Top Brand Zoomlion 25 Ton Luffing-Jib Tower Crane L400-25 In Dubai for Hot Sale
1. Performance parameters of L400-25: performance parameters and
technical indexes reach both domestic and international advanced
level.
• Max. jib length: 60m; Jib length under different assembling modes
can decrease progressively by 5 meters and the Min. jib length is
30 meters.
• Max. lifting capacity 25t;
• Hoisting capacity at jib tip:4.71t;
• Max. lifting moment 400t.m;
• Hoisting mechanism: H90FL125-910; power:90 kW; rope capacity:
910m;
• Slewing mechanism: HPW75F1.130A/HPW75F2.130A;power:3×145N.m(equal to 3×7.5kW)
• Trolleying mechanism: L60FL80; power: 60kW
2. Electrical control system
With PLC control, the electrical control system enjoys better
reliability and safety. Produced by professional manufacturers with
advanced foreign technology, the electrical elements feature
service lives that are 3 or 4 times longer than that of domestic
products, less faults, easy maintenance and repair as well as
reliable operation.
3. Technical features
• The crane boasts of multiple operation modes and wide
application;
• The complete machine adopts internationally well-received
beautiful shape;
• The crane features high working speed and excellent speed
regulation performance. Stepless speed regulation by frequency
control, the world's most advanced solution, is adopted for the
trolleying mechanism and slewing mechanism, thus ensuring more
stable and reliable operation ;
• The cab is independently installed externally with good vision
and large inner space, thus offering a good working environment for
operators;
• A variety of safety devices are equipped, which are all
mechanical or mechatronic products that are applicable to severe
working conditions, so as to ensure the tower crane's reliable
operation.
| Rated liftingmoment (t.m) | 400 | ||||||||
| Max. lifting height (m) | Free-standing stationary crane | 49.95 | |||||||
| Anchored crane | 205.55 | ||||||||
| Working radius (m) | Max. working radius | 60 | |||||||
| Min. working radius | 3.8 | ||||||||
| Max. lifting capacity (t) | 25 | ||||||||
| Hoisting mechanism | Rope fall | α=2 | α=4 | ||||||
| Speed (m/min) | 0~37.5 | 0~75 | 0~94 | 0~18.8 | 0~37.7 | 0~47 | |||
| Lifting weight (t) | 12.5 | 6.25 | 3 | 25 | 12.5 | 6 | |||
| Power (kW) | 90 | ||||||||
| Slewing mechanism | Speed (m/min) | 0~0.72 | |||||||
| Power (kW) | 3×7.5kW | ||||||||
| Trolleying mechanism | Speed (m/min) | 3 (15°~85°) | |||||||
| Power (kW) | 60 | ||||||||
