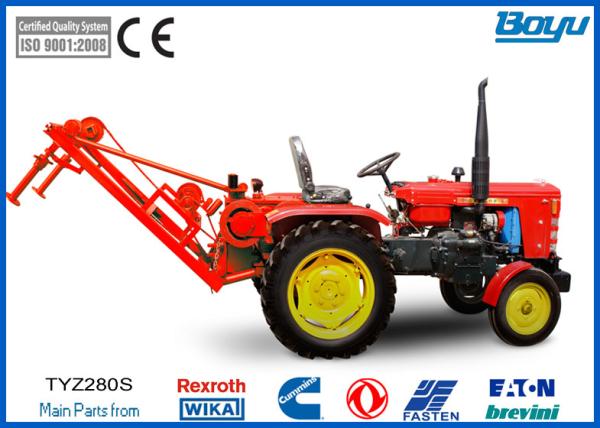

16mm steel rope Tractor Puller 110V 325mm Wheel with 6 Groove

16mm steel rope Tractor Puller 110V 325mm Wheel with 6 Groove

Quick details:

1. Tansmission Line Stringing Equipment
2. Tractor Puller
3. Max pull: 45kN
4. Max rope diameter: 16mm
5. Wheel diameter: 325mm
6. Groove number: 6
7. Boyu Brand

Description

Modified from Shanghai 50-tractor, this mechanically driven machine has the advantages such as simple operation, high tractive force and fast speed, making it not only a good choice for pole setting, tower erecting and stringing in construction but also an ideal tool for long-distance traction or tension stringing.

Characteristics

1. Puller wheel diameter: 325mm
2. Groove number: 6
3. Max diameter of applicable steel rope: 16mm
4. Total weight: 2260kg
5. Overall dimension (length*width*height): 3360×1750×2320mm

Performance

Company Introduction

Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.
We are in east of China, near the biggest city in China Shanghai about 3 hours by car.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
Overhead Transmission line stringing equipment and accessories and tools.
Nonmetallic galvanized the production equipment (Achieved high-tech products)
Numerical control machine
Low voltage no power-arc furnace compensation system

Our goods have been used in 500KV/330KV/220KV/110KV and below voltages transmission line stringing project, providing perfect products and after sales services for safe operation of electrical network.

There are 160 employees in Boyu, including 16 engineers. There are also more than 40 sets of processing equipment, consist of 35 sets mechanical processing equipment (including lathe, filing machine, planer, grinder, ect), 2 sets vertical test equipment.

Our company used about 10% of term of accounting’s value of sale in every year for R&D. Our company developed many types of product to content requirement of customers, and Product won the customers high praise.

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.

Company

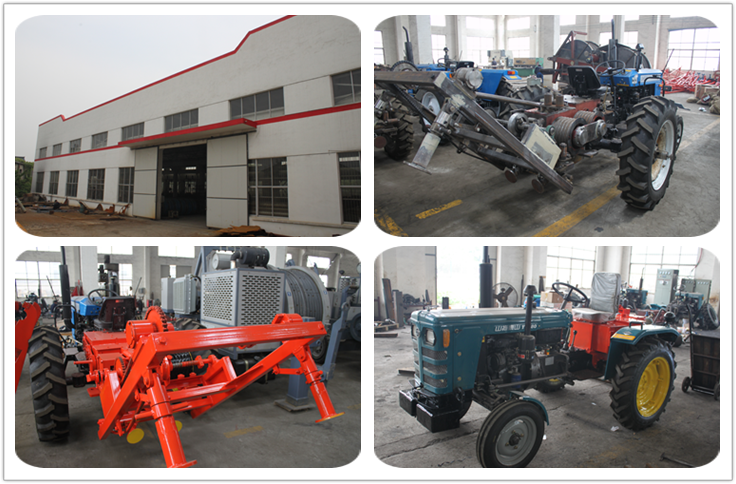

Workshop

Construction Site
