| Categories | Low Bed Semi Trailer |
|---|---|
| Brand Name: | FUDENG Brand Low bed trailer |
| Model Number: | Low bed trailer |
| Certification: | CE , ISO,ADR/DOT |
| Place of Origin: | Shandong China(Mainland) |
| MOQ: | One Unit Low bed trailers |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Units Per Month |
| Delivery Time: | 20 days after deposit |
| Packaging Details: | Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ; |
| Price: | Negotiation |
| Axles: | Fuwa/BPW/Chinese brand |
| Suspension: | Mechanical suspension and Air suspension |
| Load capacity: | 40-80Tons |
| Color: | Customized |
| Size: | 12.5mx3mx1.5m Or Customized |
| King Pin: | 50 # Or 90 # |
| Landing Gear: | JOST 28 Tons with two Speed |
| Material: | Q345B carbon steel |
Gooseneck Lowboy 3 Axles Low Loader Semi Trailer for Sale tri-axle low bed trailer
Low Bed Trailer which is known also low loader and can carry heavy loads , excavators , construction machines, transformer,
generator , cranes , caravans , army tanks and different kind of big machines. Lowbed Semi Trailers can be produced between 2
axles to 8 axles and loading capacity starting from 20 Tons to 180 Tons , rear or front loading Lowbed Trailers and platform as
customer demand with different kind of specification according to demand.
Features of Low Bed Trailer:
1.Mechanical or hydraulic climbing ramp is an option for easy loading and unloading
2.Lower height (hydraulic and air suspension be able to adjust
height)
3.Detachable gooseneck is an option
4.Small turning radius, up to 55° steering angle
5.Both automatically and manually all wheels steering
6.Drop deck minimize trailer’s platform height, increase traffic
ability for over height cargo
7.Side bracket is an option(for increase overall width), removable
and swinging
LOW BED TRAILER Specification:
| Tare Weight | About 8.5-13T |
| Dimension | 12000mm-18000mm*2500mm-3500mm*3050mm Please indicate the working platform height and length. |
| Loading Capacity (T) | 45 T |
| Axle | 13 T/16T, FUWA /BPW Brand |
| Rim | 6.5-20/7.5-20/8.00-20/8.5-20 |
| Tire | 8.25R20/10.00R20/11.00R20/12.00R20 |
| Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
| Main beam | Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel . |
| Side beam | 16mm -25mm channel steel ( Material is Q235steel ). |
| Ladder | Manual or Hydraulic type |
| Gooseneck | For choose |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand);Two pieces of 45L air tanks |
| ABS | Optional |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
| Valve | WABCO valve |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO |

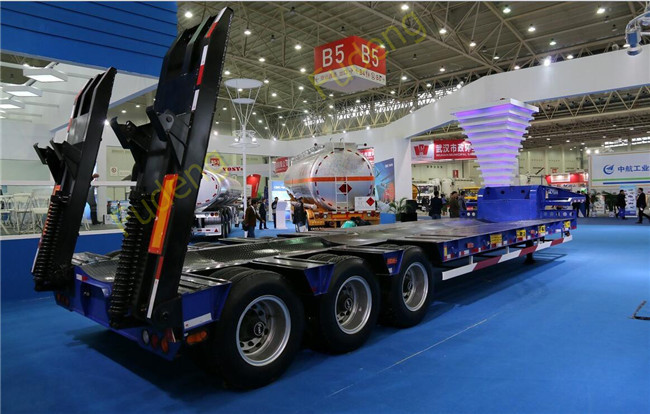

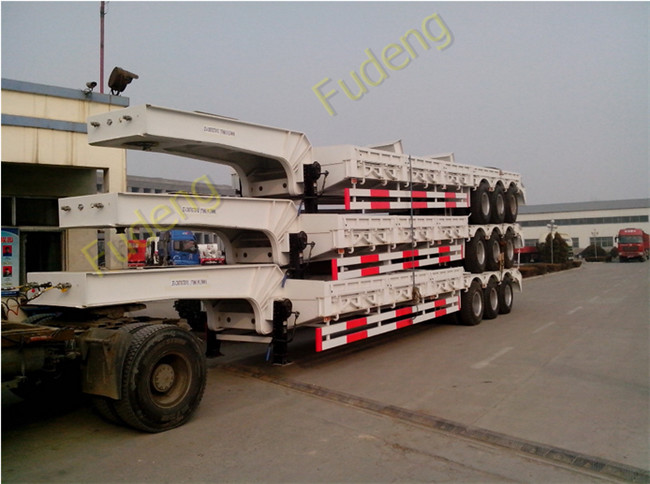

3 Axles low bed semi trailers.

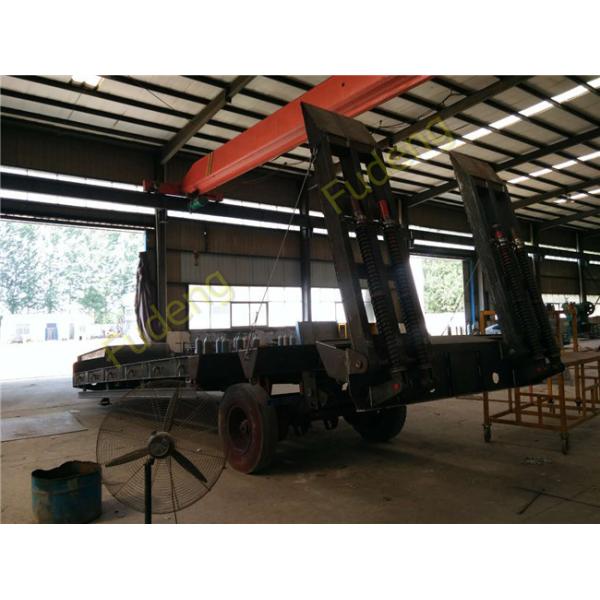

Factory Overview.
Our factory use high quality carbon steel to Customized trailer ,About low bed trailer we can provide Mechanical Ladder /
Hydraulic Ladder /Hydraulic folding ladder by you choose ;
Welcome to visit our factory.
|
