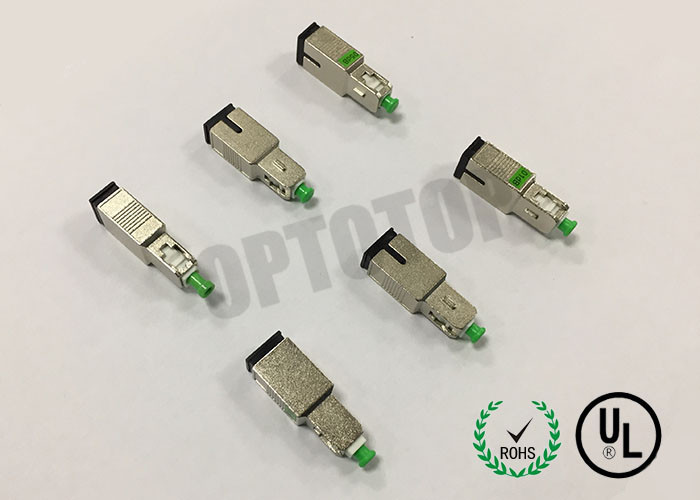

SC UPC APC Metal Material Optical Fiber Attenuator WDM and DWDM systems channel balancing

Categories	Fiber Optic Attenuator
Brand Name:	Geehe or OEM
Model Number:	Optical Pad Attenuator SC/UPC , SC/APC
Certification:	ROHS, REACH, UL, ISO
Place of Origin:	Wuhan, China
MOQ:	50 PCS
Price:	Price Negotiable
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1,000pcs per day
Delivery Time:	5-7 working day
Packaging Details:	plastic zip bag and carton
Material:	Attenuation Fiber , Metal material , Ceramic Furrule
Connector Type:	SC
Interface Polish:	UPC or APC
Attenuation Value:	1dB, 2dB, 5dB, 10dB... 20dB...30dB
Type:	Male to Female
Features:	High Return Loss Type

Contact Now

Add to Cart

Company Info.

Wuhan Geehe Optical Communication Co.,ltd

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

SC UPC APC Metal Material Fiber Optic Attenuator WDM and DWDM systems channel balancing

Fiber Optic Attenuator is often used to limit the optical power received by the photodetector to within the limits of the optical receiver.

Features:

Plastic or metal housing material

High durability
Attenuation levels from 1dB to 30dB
Low back reflection and Low PDL
Precision ceramic ferrule

Applications:

Optical power equalization

Receiver padding

CATV, LAN, telecommunications

WDM and DWDM systems channel balancing

Package & Specifications:

Packaging	Description
Packaging	Clear Ziploc bag, 1 unit per bag
Physical Characteristics	Parameter	Value
	Plastic material	UL 94V-0 ABS high-impact thermoplastic
	Fiber material	Metal-ion doped optical fiber
Mechanical Characteristics	Parameter	Value
	Operating temperature (℃)	-40 ~ +85
	Storage temperature (℃)	-40 ~ +85
Optical Performance	Parameter	Value
	Operating bandwidth	1250nm~1625nm
	Center wavelength	1310nm and 1550nm
	Attenuation tolerance	1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB
	Return loss UPC(dB)	≥45
	Return loss APC(dB)	≥55
	PDL	≤0.1

Ordering information:

EX: OAT-HF-SC-2A-05
