DTH Hammers , Drills and Bits 89 mm - 1200mm Down The Hole Drilling For Rock Drilling

Down The Hole (DTH) Hammers, Drills and Bits 89 mm - 1200mm Down The Hole For Rock Drilling

Down The Hole (DTH) Hammers, Drills and Bits

Roschen is the world's leading designer and manufacturer of rock drilling equipment for drilling holes from 3 ½ – 48 inches (89 – 1219mm) in diameter.

Roschen Down The Hole Hammer and Down The Hole Hammer bits quality can be replaced of by atlas copco, basis on the quality grade, and in the after sales service.

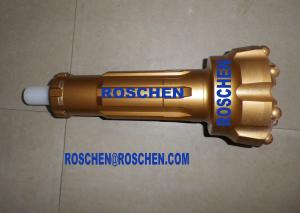

When percussion or hammer drilling the percussion mechanism is called a DTH or down the hole hammer. This drilling tool is located directly above the down hole hammer bit. The driller transfers weight to the bit through the drill pipe as well as provides some rotation. Through the use of a compressor, the pressurized air is forced to the down hole hammer. As the drilled hole gets deeper the driller adds more drill pipe to the string. The piston strikes the impact zone of the hammer bit; hammers are always used as part of a casing advancement system and can be used in reverse circulation applications. DTH hammers are common when drilling blast holes and water wells.

Since the down hole hammer piston impacts the hammer bit directly there is a very efficient transmission of energy. This means that the impact energy does not have to pass through many other components making it possible to drill fairly deep holes.

Roschen can easily provide all of your down hole tools including custom down hole hammers, percussion drilling tools, hammer drilling tools and more. There have been excellent advances in air flow technology which allows today's hammers to deliver more force to the down hole tools than ever before; this enables the piston to hit harder and more frequently. In some instances it becomes difficult to hammer drill when you are under a large column of water. Fortunately, all of Roschen DTH hammers come with adjustable chokes which greatly affect the performance of down hole tools. Another drilling supply that Roschen has helped to develop is a blow back sub which can be mounted above the down hole hammer. Roschen under water, if it becomes to difficult to push the water, the blow back sub will allow some air to escape thereby lowering the average density of the surrounding water and allowing the down hole hammer to continue operating.

Roschen Down Hole Hammers shanks types availabes:

1. IR340 DTH hammer shank
2. SD4 DTH hammer shank
3. QL50 DTH hammer shank
4. IR350 DTH hammer shank
5. SD5 DTH hammer shank
6. QL60 DTH hammer shank
7. IR360 DTH hammer shank
8. SD6 DTH Hammer shank
9. MACH60 DTH hammer shank
10. QL80 DTH hammer shank
11. IR380 DTH hammer shank
12. D8 DTH hammer shank
13. SD10 DTH hammer shank
14. IR310 DTH hammer shank
15. SD12 DTH hammer shank
16. QL120 DTH hammer shank
17. IR112 DTH hammer shank
18. SD15 DTH hammer shank
19. IR112S DTH hammer shank
20. SD18 DTH hammer shank

Applications:

1. Drilling blasting holes, drainage and ventilating holes, center holes of raising boring, deep blasting holes in traditional drilling and blasting method of raising, pipe holes and other deep holes in all of various strength rocks in open pit and underground mining.

2. Drilling holes in road cutting and other stone constructions (e. g. ports and hydroelectric station constructions, etc.).

3. Drilling water wells, exploratory boreholes and injected holes.

This hammer can work with dry dust collection and also with wet dust removal using mixture of air and water.

The specific DTH hammers as follow:

TS series----for deep hole and super deep hole drilling
TG series----for drying drilling
TH series----for wet drilling

All our Hammers can be easily adapted to accept different types of bit shanks as COP, BR, DHD, SD, XL QL, MACH, Halco and Mission by simply changing a few basic components. Several models are available in Heavy-Duty format to suit particularly arduous and abrasive drilling conditions.
