Industrial Open Frame Sunlight Readable LCD Monitor 24 Inch With 1000 Cd/M² Brightness

Categories Sunlight Readable LCD Monitor
Brand Name: ITD/OEM
Model Number: ITD24OFN1HB02
Certification: CE,ROHS,FCC
Place of Origin: China
MOQ: 1PCS
Price: TBA
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 10000 units per month
Delivery Time: 10-12 work days
Packaging Details: Foam,gift box,master carton,woonden case,pallet
Screen Diagonal: 24 inch
Aspect Ratio: 16:9
Physical Resolution: 1920X1080
Brightness: 1000 cd/m²
Backlight/Backlight Lifetime: LED Backlight with 50000 Hours’ Lifetime
View Angels: 85/85/80/80
Operating Temperature Range: -10~60°C (-20~70°C Optional)
Video input: VGA/DVI/HDMI
Touch Options: Resistive, IR, PCAP, SAW
Touch Drivers: Windows, Linux, Android, Mac, Raspberry Pi
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

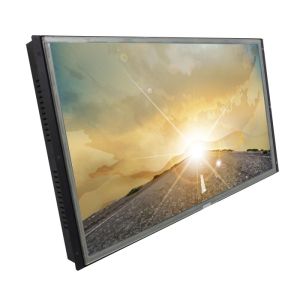

Industrial Open Frame Sunlight Readable LCD Monitor 24 Inch With 1000 Cd/M² Brightness

industrial open frame sunlight readable LCD monitor 24"


ITD sunlight readable LCD monitors and displays are used in locations where direct and indirect (reflected) sunlight or high ambient light conditions are present. Brightness levels range from 700 to 3000 nits (depending on LCD panel) which provides the clarity and brilliance your application requires without screen washout or glare.


Specifications:


Open Frame High Brightness LCD Monitor


Model NameITD24OFN1HB02
IP RatingN/A

LCD Panel


Screen Diagonal (Inch/cm)24”
Display Active Screen Size (mm)531.36(H) ×298.89(V)
Aspect Ratio16:9
Physical Resolution1920×1080
Maximum Resolution Supported1920×1080
Colors16.7M
Brightness (cd/m²)1000 cd/m²
Contrast Ratio1000:1
View Angels85/85/80/80
Backlight/Backlight LifetimeLED Backlight with 50000 Hours’ Lifetime

Touch Panel


Touch OptionsResistive, IR, PCAP, SAW
Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

Input / Output


Video Input1 × VGA
1 × DVI-I
1 × HDMI
Audio1 × PC-Audio
Touch Connector1 × USB
Power Connector1 × DC2.0

Operation


Operating Temperature Range-10~60°C (-20~70°C Optional)
Humidity Range (RH)10-90%
24/7/365 UseSupported

Power


Power IndicatorGreen LED
Power InputAC100-220V
Power Consumption60W

Order Information


24”1000nits Open Frame LCD Monitor with Resistive TouchITD24OFT1HB02
24”1000nits Open Frame LCD Monitor with IR TouchITD24OFT2HB02
24”1000nits Open Frame LCD Monitor with SAW TouchITD24OFT3HB02
24”1000nits Open Frame LCD Monitor with PCAP TouchITD24OFT5HB02
24”1000nits Open Frame LCD Monitor with Tempered GlassITD24OFG1HB02
24”1500nits Open Frame LCD Monitor with Resistive TouchITD24OFT1HB01
24”1500nits Open Frame LCD Monitor with IR TouchITD24OFT2HB01
24”1500nits Open Frame LCD Monitor with SAW TouchITD24OFT3HB01
24”1500nits Open Frame LCD Monitor with PCAP TouchITD24OFT5HB01
24”1500nits Open Frame LCD Monitor with Tempered GlassITD24OFG1HB01


FEATURES

  • Exceptional quality and highly engineered industrial monitors
  • Optional touchscreens like resistive, IR, SAW, PCAP
  • All steel construction designed for harsh and industrial environments
  • Easy-to-install cabinet and open frame rear-mount display
  • Multiple mounting options (75/100mm VESA mount and side brackets)
  • High brightness from 1000nits to 1500nits optional
  • Long lasting product cycle for continuity thru all phases of project
