| Categories | Forged Steel Rolls |
|---|---|
| Brand Name: | SEEC |
| Model Number: | Rolling mill |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 10 |
| Supply Ability: | As required |
| Delivery Time: | 3-6months |
| Packaging Details: | Standard international package |
| type: | hot rolling mill and cold rolling mill |
| material: | forged steel |
| application 1: | Work Rolls for Skin Pass Rolls |
| application 2: | Deflector Pinch Roller |
| drawing: | as confirmed |
| standards: | ISO 9001 |

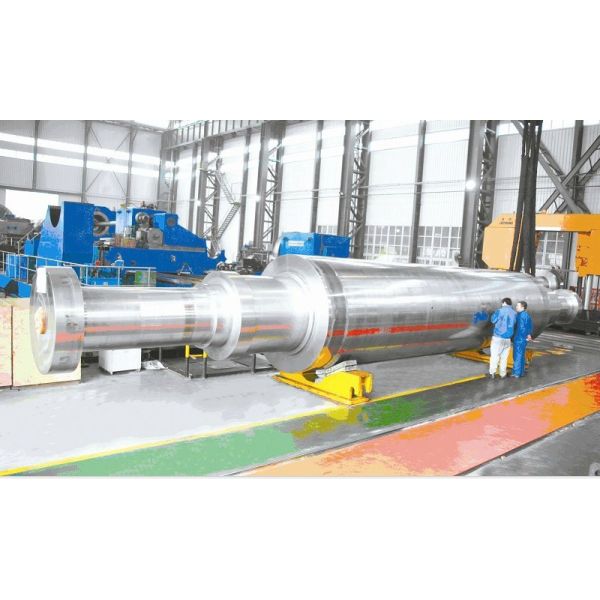

Forged Steel Rolls Work Rolls for Skin Pass Rolls Deflector Pinch Rollr Pinch Roll
The details of Deflector Pinch Roll as follows:
1.Material: SUJ2, C35,34CrNiMo6,C45,EN19, SAE 52100,etc.
2.Dimension: Diameter: 60mm-1000mm; Length: ≤8000mm.
3.Surface Hardness: Max 100 HSD.
4.Ultrasonic Test: Sep 1921-84 - Test Group 3 Class D or ASTM A388 - FBH max 4mm.
5.Quality Management Certification: ISO 9001:2008.
6.Manufacturing Process: Steel Ingot - Forging - UT - Rough Machining - UT - QT - Heat Treatment - Finishing Machining.
7.We are a factory and we have had ten years of experiences in manufactring.
| Product Name | Specification(mm) | Main Materials | Note |
| Deflector Pinch Roll | Φ60-Φ1000 | 1035, 1045, C35E, C40E, C45E | GB/T 13314-2008 |
| GB/T 15547-1995 |
If you are concerned about Deflector Pinch Roll, maybe you will be interested in the following products:
| Name | Specification | Material |
| Work Roll | Dia. 60~ Dia. 1000mm | 9Cr2Mo, 86CrMoV7,MC3,MC5,etc. |
| Back Up Roll | Dia. 240~ Dia. 1000mm | 9Cr2Mo, MC3,MC5,etc. |
| Intermediate Roll | ≤Dia. 1000mm | 9Cr2Mo, 86CrMoV7,MC3, etc. |
| Leveling Roll | Dia. 60~ Dia.1000mm | 60CrMoV, H13, 80CrMoV, etc |
| Table Roll | Dia. 100~ Dia. 1000mm | 1035, 1045, C35E, C40E, C45E, etc |
| Pinch Roll | Dia. 80~ Dia. 1000mm | 1035, 1045, C35E, C40E, C45E, etc |
| Driving Roll | Dia. 80~ Dia. 1000mm | 1035, 1045, C35E, C40E, C45E, etc |
| Cradle Roll | Dia. 80~ Dia. 1000mm | 1035, 1045, C35E, C40E, C45E, etc |
| Guide Roll | Dia. 80~ Dia. 1000mm | 1035, 1045, 4150, 4340, 4140, etc |
| Piercing Roll | Dia. 80~ Dia. 1000mm | 1035, 1045, 4150, 4340, 4140, etc |
| Straightening Roll | Dia. 80~Dia. 900mm | H13,4140,4340,EN9,EN19,EN24,EN31,51200,etc |
- Products with Customers' Designs
- Strong Machining & Heat Treatment Abilities
- Strict Quality Control
- Prompt Deliver
| Name | Specification | Material |
| Forged Work Roll | Dia. 60~ Dia. 1000mm | 9Cr2Mo, 86CrMoV7,MC3,MC5,etc. |
| Forged Back Up Roll | Dia. 240~ Dia. 1500mm | 70Cr3Mo,9Cr2Mo,86CrMoV7, MC3,MC5,etc. |
| Forged Intermediate Roll | ≤Dia. 1000mm | 9Cr2Mo, 86CrMoV7,MC3,MC5 etc. |
| Forged Leveling Roll | Dia. 30~ Dia.1000mm | 60CrMoV, H13, 80CrMoV, etc |
| Forged Table Roll | Dia. 100~ Dia. 1000mm | 1035, 1045, C35E, C40E, C45E, etc |
| Forged Pinch Roll | Dia. 80~ Dia. 1000mm | 1035, 1045, C35E, C40E, C45E, etc |
| Forged Driving Roll | Dia. 80~ Dia. 1000mm | 1035, 1045, C35E, C40E, C45E, etc |
| Forged Cradle Roll | Dia. 80~ Dia. 1000mm | 1035, 1045, C35E, C40E, C45E, etc |
| Forged Guide Roll | Dia. 80~ Dia. 1000mm | 1035, 1045, 4150, 4340, 4140, etc |
| Forged Piercing Roll | Dia. 80~ Dia. 1000mm | 1035, 1045, 4150, 4340, 4140, etc |
| Forged Straightening Roll | Dia. 80~Dia. 900mm | 60CrMoV,801CrMoV,H13,4140,4340,EN9,EN19,EN24,EN31,51200,etc |
|
