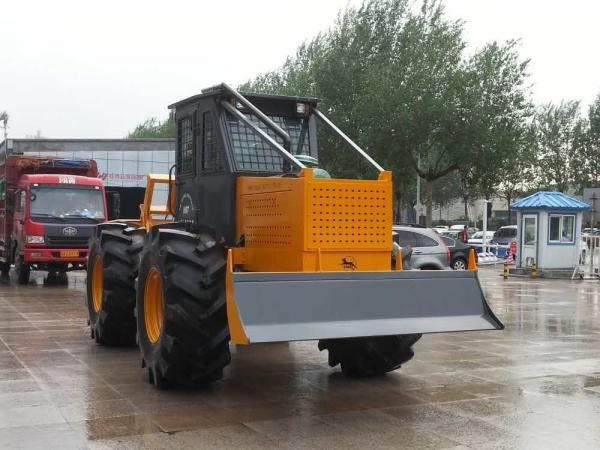

Cable log skidder J80A logging tractor skidder 8ton

HIGH QUALITY CABLE LOG SKIDDER 8TON J80A

---Tractor type: Wheel type, four wheel drive, articulated steering

---Max. Qty of wood skidding: Big end of wood forward---4m3

Small end of wood forward---6m3

---Outline dimension: (L*W*H) 6040*2317*2813mm

---Wheel tread: 1850mm

---Wheel base: 2805mm

---Ground clearance: 528mm

---Structural mass: 8000 kg

---Rated tractive force: 33KN

---Max. tractive force: 46.2KN

---Suitable working slope: Lengthways direction---Max. 20 degree

Transverse direction---Max. 15 degree

---The calculated running speed: 2.81-41.36km/h

2, Skidding equipment specification

---Winch rotation speed: 51-373rpm

---Dia of the steel cable of winch: 17mm

---Length of steel cable: 60m

---Track-clearer dimension: (H*W) 440*1960mm

3, Engine specification

---Engine model: LR6B3-2

---Rated power: 73.5kw at 2200rpm

---Max. fuel consumption: 228.5g/kw.h
