| Categories | Rock Drilling Tools |
|---|---|
| Brand Name: | Mirco |
| Place of Origin: | China |
| MOQ: | negociated one |
| Price: | negociated one |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Delivery Time: | 10-15 days |
| Packaging Details: | wooden box or plastic box |
| Model: | Tapered cross bit |
| Type: | Drill Bit |
| Machine Type: | Drilling Tool, Drilling Equipment |
| Material: | Tungsten Carbide & Steel |
| Processing Type: | Forging |
| Use: | mining drilling |
| Bit Diameter: | 32mm 34mm 36mm 38mm 40mm 42mm etc |
| taper angle: | 7/11/12 degree |
| Company Info. |
| KSQ Technologies (Beijing) Co. Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Specification
| Product | Taper Cross bit |
| Diameter | 32mm |
| Taper degree | 7D |
| For class of rock | 8~12 |
| Weight | 0.3 KG |
| Color | Green (customized according to customer needs) |

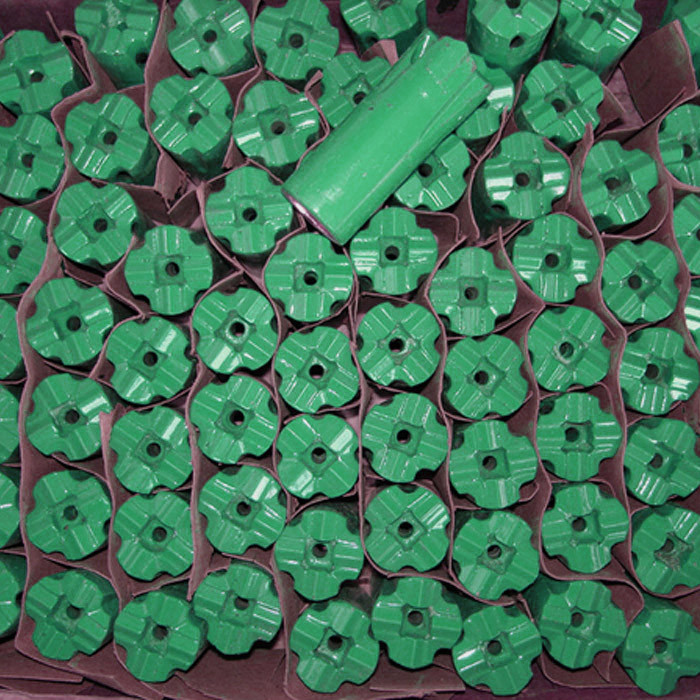

Tungsten Carbide Tapered Cross Drill Bit Rock Tools Drilling Equipments
1. Tapered button bits connect with tapered drill rod for drilling holes
2. Stale and mature welding technology ensure good quality of bits
3. Accurate dimension of taper degree perfectly matches the rods
4. Work reliable and very cost-effective
5. High grade tungsten carbide inserts
6. Bit bodies manufactured from high grade steel and processed
using state-of-the-art CNC machinery and heat treatment
Product Characteristic:
1. Button bit taper angle: 7/11/12 degree
2. Length: 50/55/71/80 mm
3. Diameter: 20-45 mm
4. Button bit shape: spherical/ballistic/conical
5. Socket inside diameter: 15/19/22/25(mm)
6. Material and process: high quality alloy steel bar and tungsten
carbides, through heat treatment
Application:
The taper drill bit is widely used in metallurgy mine, geological
exploration, water conservancy construction, electricity, traffic,
tunnel, quarry, national defence stone project etc.
| Description | Diameter | Length | Weight |
| mm | mm | kg | |
| cross bit | 24 | 71 80 | 0.18 |
| Taper:a=7°,11°,12° | 26 | 71 80 | 0.19 |
| Socket inside Dia. D=19, 22, 25 | 28 | 71 80 | 0.19 |
| 29 | 71 80 | 0.2 | |
| 30 | 50 67 71 80 | 0.3 | |
| 32 | 50 67 71 80 | 0.3 | |
| 33 | 71 80 | 0.32 | |
| 34 | 67 71 80 | 0.34 | |
| 35 | 67 71 80 | 0.35 | |
| 36 | 71 80 | 0.36 | |
| 38 | 67 71 80 | 0.42 | |
| 40 | 71 80 | 0.43 | |
| 41 | 71 | 0.45 | |
| 42 | 69 80 | 0.46 | |
| 44 | 80 | 0.47 | |
| 45 | 80 | 0.5 | |
| 46 | 80 | 0.51 | |
| 48 | 80 | 0.53 | |
| 50 | 80 | 0.6 | |
| 55 | 85 | 0.7 |
| Description | Diameter | Length | Weight |
| mm | mm | kg | |
| chisel | 20 | 65 | 0.15 |
| Taper:a=7°,11°,12° | 22 | 65 | 0.15 |
| Socket inside Dia. D=15,19, 22, 25 | 25 | 69 | 0.15 |
| 28 | 60 | 0.2 | |
| 30 | 55 80 | 0.2 | |
| 32 | 55 64 71 80 | 0.25 | |
| 34 | 71 80 | 0.29 | |
| 36 | 71 80 | 0.35 | |
| 38 | 71 80 | 0.4 | |
| 40 | 71 80 | 0.42 | |
| 42 | 71 80 | 0.42 | |
| 45 | 71 80 | 0.45 |
Our Services
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater
to the needs of the construction and mining industries, with
consideration on providing solutions to the following unique
problems:
· Hazardous environment
· Acts, regulations, and other government guidelines that has to be
followed
· Significant differences in the way people work, mostly due to
physical constraints
· Avoiding downtime on major equipment which can cost tens of
thousands of dollars per hour. The best solution with the most
reasonable cost is a significant driver.
|
