| Categories | 10 100M Media Converter |
|---|---|
| Brand Name: | NEWBRIDGE |
| Model Number: | ND-820SW-S20-4 |
| Certification: | FCC,CE |
| Place of Origin: | SHENZHEN,CHINA |
| MOQ: | 1PC |
| Price: | Negotiation |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Power dissipation: | ＜2.5W |
| Fiber Connector: | SC standard, ST/FC optional |
| fiber distance: | 20KM |
| power supply: | DC 5V,AC 100-240V; |
| UTP Rate: | 10/100M |
| MTBF: | 50000 hours |
100BASE-TX/FX ,IEEE802.3, Ethernet To Fiber Media Converter dual fiber Singel Mode for 4 ports
Feature
The suit of 10/100M IP Switch :
1X7 10/100M IP Switch (A) &
1X1 10/100M media converter(B)
1. 10/100M single fiber single mode,1310TX/1550RX,SC port,0~20KM;
2. External power supply: DC/5V,AC/100-240V;
3. Stand alone type;
Specification
| Standard | IEEE802.3 (10BASE-T),IEEE802.3u 100BASE-TX/FX (Fast-Ethernet),IEEE802.3x (Flow Control),IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| 10/100 BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 100BASE-FX | 50/125umfiber cable (5km), 62.5/125um multimode fiber cable (2km) 9/125um singlemode fiber cable (20/40/60/80/100km) |
| Conversion Mode / Delay Time | Store-and-Forward < 10us, straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | SC standard, ST/FC optional |
| Wavelength | 1310/1550nm |
| Input Voltage | DC 5V1A with External power adapter |
| Power Consumption | <2.5W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| MAC Address Table | 1K |
| Buffer Size | 1M |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -40°C~70°C |
| Storage Humidity | 5%~90% non-condescending |

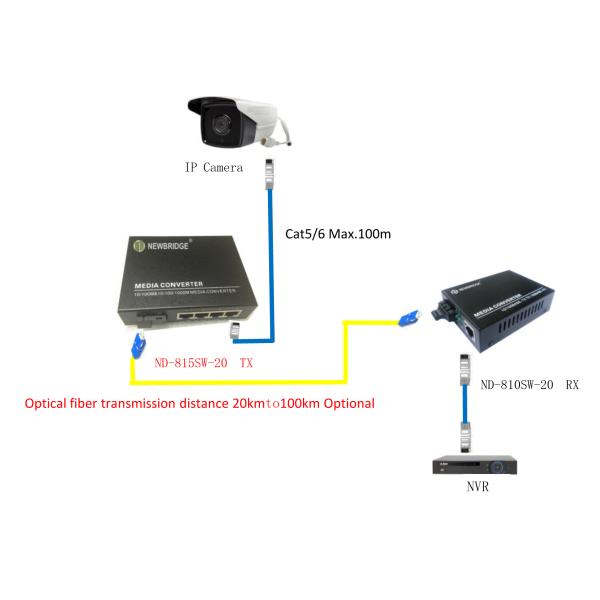

Connection Diagram
Order info
| Part No | Description of product | Unit |
| ND-820SW-S20-4 | 10M/100M bps, Single mode,1310nm,0-20KM,SC |
|
