| Categories | HD SDI Surge Protector |
|---|---|
| Brand Name: | NEWBRIDGE |
| Model Number: | ND7110 |
| Certification: | FCC,CE |
| Place of Origin: | SHENZHEN,CHINA |
| MOQ: | 1PC |
| Price: | Negotiation |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Model: | ND7110 |
| Connectors: | BNC |
| SDI Impedance: | 75 Ohms |
| Dimension: | 93 x 25 x 25 mm / 3.66 x 0.98 x 0.98 inches |
| Weight: | 70g |
| Data Throughput: | 270Mbps, 1.485Gbps |

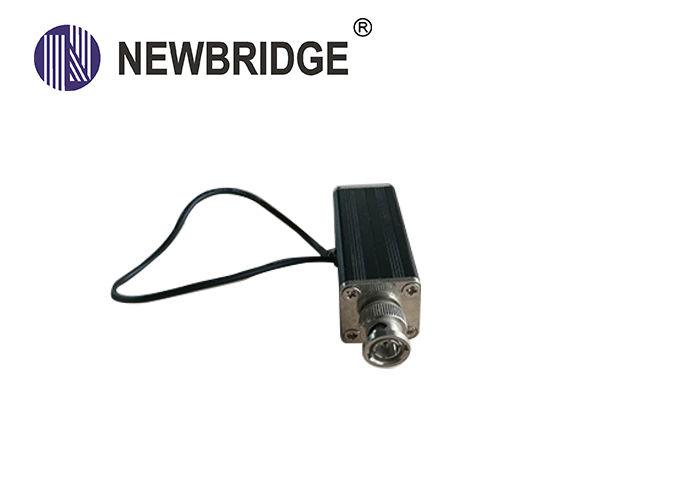

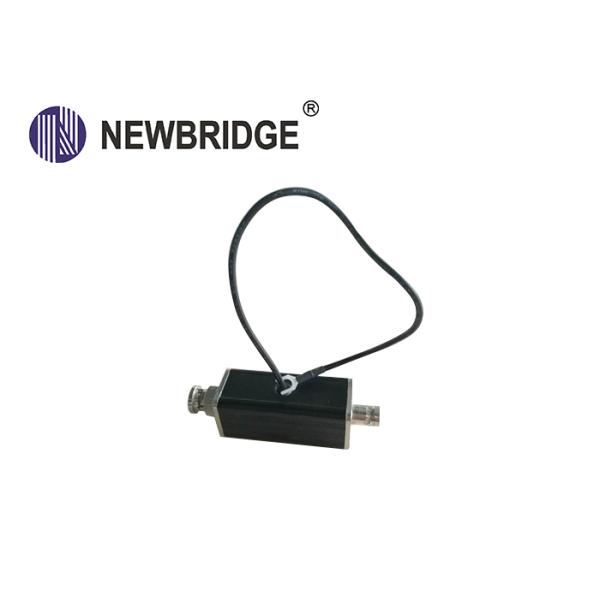

Mini HD SDI Surge Protector for outdoor Surge Protector With Anti Thunder
Overview
Newbridge® HD-SDI Surge Protector is a Surge Protection device for HD SDI Camera, video switcher, segmentation and monitoring equipment..The device provide protection from high voltage surges such as near lightning strikes. The device would shunt high voltage by transferring to ground and prevent high electric current from passing onto sensitive electronic equipment such as VCR’s, DVR’s, cameras and multiplexers.
Features
★ Comply with the standards of GB18802.1, GB/T 18802.21
★ Transmission Rate: 270M~1.485G
★ Resisting Surge above 6KV
★ Discharging Current could achieve 10KA
★ Reaction Speed is 1 us
★ Outstanding quality HD-SDI signal output
★ Less than 0.05UI Superposition Jitter
★ Excellent Eye Pattern performance
★ Transmission rate: 270M~1.485G
★ Ta≤1us, Up≤10KV, Isn≤5KA
Specifications
| Model | N7110 |
| Connectors | BNC |
| SDI Impedance | 75 Ohms |
| Connector/Coax Return Loss | Return |
| Data Throughput | 270Mbps, 1.485Gbps |
| Resisting Surge | < 6KV |
| Discharging Current | 10KA |
| Reaction Speed | 1uS |
| Operating Temperature | -10°C ~ 60°C / 14°F ~ 140°F |
| Storage Temperature | -30°C ~ 70°C / -22°F ~158°F |
| Relative Humidity | 20~90% RH (Non-condensation) |
| Dimension | 93 x 25 x 25 mm / 3.66 x 0.98 x 0.98 inches |
| Weight | 70g |
Connection diagram
Order Information
| Part No | Description of product | Unit |
| ND7110 | HD-SD-SP | pcs |
|
