Solar Water Pumping High Efficiency Solar Cells / Solar Electrical Energy Panels

Categories Solar Panel Solar Cell
Brand Name: OLLIN PV
Model Number: OL-60P-280
Certification: CE
Place of Origin: zhejiang Pr. China
MOQ: 1 piece/unit
Price: Negotiable
Supply Ability: 1500PCS PER WEEK
Delivery Time: 20DAYS
Packaging Details: 2PC per carton or 27pcs per pallet
Material: monocrystalline silicon
Color: black
dimension: 1650 x 990x 40mm
Front Glass: 3.2mm high transmissiontempered glass
Frame: Anodized Aluninium Alloy
connecter: 0.9m wire and MC4 connecter
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

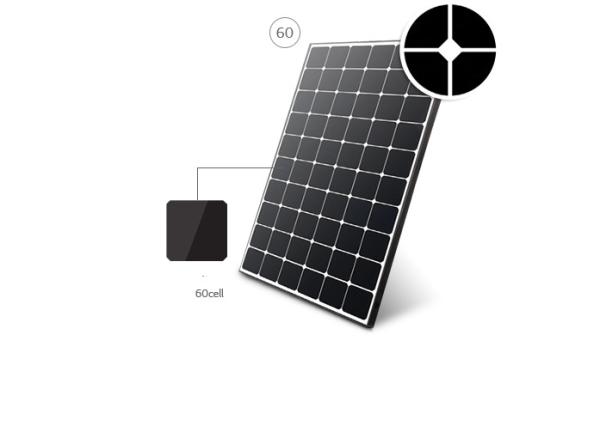

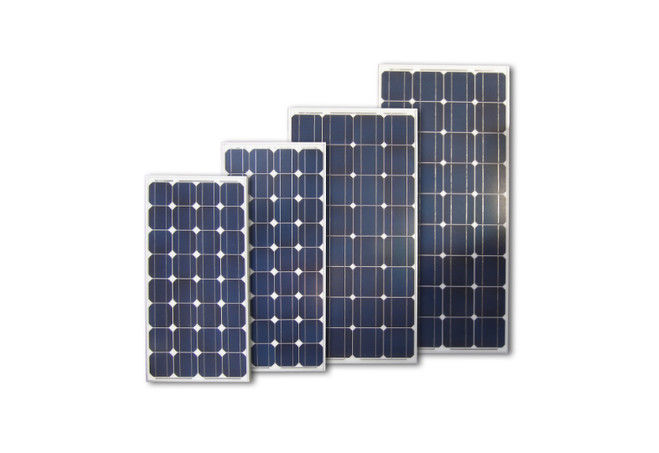

Solar Water Pumping High Efficiency Solar Cells / Solar Electrical Energy Panels

black color Aluninium frame 280watt mono Solar Panel Solar Cell charging for Solar water Pumping



Features:


High reliability with guaranteed 0% to +5% power output tolerance ,ensuring return on

investment

High conversion efficiency based on leading innovative photovoltaic technologies

Withstands high wind-pressure and snow load,and extreme temperature variations

Unique frame design, high mechanical strength, and easy Installation

Electrical Characteristics

TypeM325M320M315M310305M300M295M290M285M280
Wattage(W)325320315310305300295290285280
Open Circuit Voltage(V)45.3045.2045.104544.944.844.644.544.444.2
Short Circuit Current(I)8.878.798.718.978.878.88.738.678.68.49
Maximum Power Voltage(V)37.0036.8036.6036.436.236.135.935.835.735.5
Maximum Power Current(I)8.788.708.618.528.438.328.228.117.997.89
Cell Efficiency18.90%18.60%18.31%18.02%17.73%17.44%17.15%16.86%16.57%16.28%
Module Efficiency16.63%16.48%16.23%15.97%15.71%15.45%15.20%14.94%14.68%14.42%
Maximum System VoltageDC1000V
Temperature Coefficient of Voc-0.27%/°C
Temperature Coefficient of Isc+0.045%/°C
Temperaturecoefficient of Pmax-0.408%/°C
Maximum Series Fuse Rating15A
Number of Cells72(6*12) Mono Crystalline silicon, 156*156mm(6 inches)
Junction BoxIp67 rated/with 6 bypass diodes
Cable4.0mm2
(0.006inches2,symmetrical lengths(-)1100mm(43.30inches)and(+)1100mm(43.30inches))
Tempered Glass3.2mm(0.13inches)tempered glass
Cell EncapsulationEVA(Ethylene-vinyl-Acetate)
Back Sheetcomposite film
FrameAnodized aluminum alloy
Dimension1957*992*50mm(77.05*39.06*1.97inches)
Maximum Surface Load Capacity5400pa
Hailmaximun diameter of 25mm with impact speed of 23m-s-1
Temperature Range-40°C to + 85°C
Weight23.0kg(50.7bs)





Our Sevice:

1. We have our own factory with professional for solar panel and system over 8 years.

2. We have a strong R&D team.

3. Offering OEM service for your order.

4. Reply within 12 hours.

5. Offering competitive price, good after-sales service.

FAQ:


1. Q: Are you a factory or trading company?

A: We are a factory and we have our own foreign trade department.

2. Q: Where is your factory located? How can I visit there?

A: Our factory is located in yuyao city, zhejiang province, China,You are warmly welcomed to visit us!

3. Q: Can the price be cheaper?

A: Of course, you will be offered a good discount for big amount. The most reasonable price will be provided

to meet your requirements!

4. Q: Do you have solar project engineer who can guide me to install system?

A: Yes, we have a professional engineers team. They can teach you how to install a solar system.

Why Choose Us?

1. Golden supplier approved by MIC.

2. Supply suitable price and high quality product.

3. Offer free samples before order confirmed.

4. Commitment to delivery on time.

5. Offer a perfect pre-sale and after sale service.

6. Providing fast and economical transportation solutions.

7. We guarantee that the product is 100% compensated.

8. Providing product certificate,instructions and installation method.

9. Long-term cooperative attitude and the concept of development together.

10. A professional R&D team with 8 years history and Perfect quality management system.
