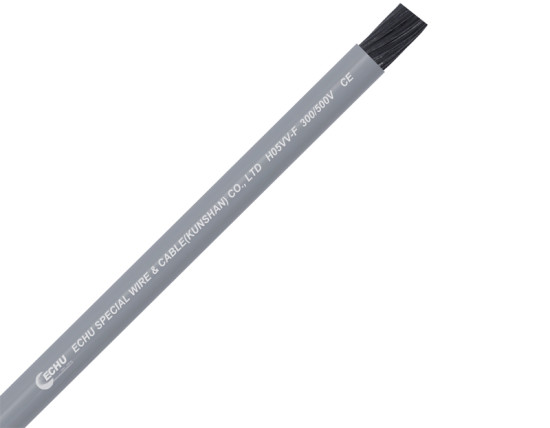

Oil-Resistant PVC Control Cable Anti-Oil Cable RVVY RVVYP

Oil-Resistant PVC Control Cable Anti-Oil Cable Rvvy Rvvyp

Double Jacket Control Cable with CE Certificate

Harmonized Wire H05VV-F 1.0mm2 3G Bulk Power Cord Wire

Oil-Resistant PVC Control Cable Anti-Oil Cable RVVY RVVYP

Applications:

As installation cable, it is used under dry or wet indoor situation, for moving or industrial envoronment condition, such as machine tool, wooden tool, qrinding machine.

Properties:

Water proof, oil resistance, cool resistance, flame resistance, normal working temperature is 40C
Its bending for life is more than normal installation cable's, but could not be used as tray cable

Standards:

Acc. to IEC227-7: 1995 GB5023.7-2008
Oil resistance: ASTM GB/T2951.5

Structure:
Conductor: Fine oxygen-free coppper acc VDE0295 CLASS 5
Insulation: PVC
Sheath: Modified oil reistance PVC Sheath
Black (RAL9005) or Grey (RAL7001)
Rated Voltage: 300/500V
Testing Voltage: 2500V

Technical data:
Working temperature:
Fixed installation: -40C to 105C
Flexible Installation: -5C to 70C
The minimum bending radius:
Fixed Installation: 4 x external diameter
Flexiing Installation: 15x external diameter
As UL the most is 16AWG voltage 300/300V 80C

Type	Size	Conductor		Weight KG/KM	O.D. Down(mm)	O.D. UP (mm)
RVVY	1.5*2C	51	0.19	104.7	7.7	8.5
RVVY	1.5*3C	51	0.19	127.3	8.2	9
RVVY	1.5*4C	51	0.19	157.2	9.1	9.9
RVVY	1.5*5C	51	0.19	194.6	9.9	11.4
RVVY	1.5*6C	51	0.19	233.6	10.9	12.4
RVVY	1.5*7C	51	0.19	275.2	12	13.5
RVVY	1.5*8C	51	0.19	326.4	13.4	14.9
RVVY	1.5*9C	51	0.19	377.2	14.3	15.8
RVVY	1.5*10C	51	0.19	375.3	14.4	15.9
RVVY	1.5*11C	51	0.19	398.4	14.5	17
RVVY	1.5*12C	51	0.19	414.6	14.5	17
RVVY	1.5*13C	51	0.19	455.1	15.4	17.9
RVVY	1.5*14C	51	0.19	471	15.4	17.9
RVVY	1.5*15C	51	0.19	514.4	16.4	18.9
RVVY	1.5*16C	51	0.19	530.5	16.4	18.9
RVVY	1.5*17C	51	0.19	575.4	17.4	19.9
RVVY	1.5*18C	51	0.19	591.7	17.4	19.9
RVVY	1.5*19C	51	0.19	614.8	17.4	19.9
RVVY	1.5*20C	51	0.19	642.7	17.9	20.4
RVVY	1.5*21C	51	0.19	677.3	18.4	20.9
RVVY	1.5*22C	51	0.19	689.9	19.3	22.3
RVVY	1.5*23C	51	0.19	729.2	20.4	23.4
RVVY	1.5*24C	51	0.19	752.3	20.4	23.4
RVVY	1.5*25C	51	0.19	784	20.9	23.9
RVVY	1.5*26C	51	0.19	807.2	20.9	23.9
RVVY	1.5*27C	51	0.19	830.4	20.9	23.9
RVVY	1.5*28C	51	0.19	868.3	21.8	24.8
RVVY	1.5*29C	51	0.19	891.5	21.8	24.8
RVVY	1.5*30C	51	0.19	914.7	21.8	24.8
RVVY	1.5*31C	51	0.19	954.7	22.8	25.8
RVVY	1.5*32C	51	0.19	977.9	22.8	25.8
RVVY	1.5*33C	51	0.19	1001	22.8	25.8
RVVY	1.5*34C	51	0.19	1042.6	23.9	26.9
RVVY	1.5*35C	51	0.19	1065.7	23.9	26.9
RVVY	1.5*36C	51	0.19	1088.9	23.9	26.9

RVVY	2.0*2C	67	0.19	126	8.4	9.2
RVVY	2.0*3C	67	0.19	154.1	8.9	9.7
RVVY	2.0*4C	67	0.19	190.9	9.7	11.2
RVVY	2.0*5C	67	0.19	236.7	10.8	12.3
RVVY	2.0*6C	67	0.19	284.6	12	13.5
RVVY	2.0*7C	67	0.19	335.6	13.1	14.6
RVVY	2.0*8C	67	0.19	397.9	14.2	16.7
RVVY	2.0*9C	67	0.19	460.1	15.2	17.7
RVVY	2.0*10C	67	0.19	458.6	15.3	17.8
RVVY	2.0*11C	67	0.19	487.3	15.9	18.4
RVVY	2.0*12C	67	0.19	507.9	15.9	18.4
RVVY	2.0*13C	67	0.19	557.5	16.9	19.4
RVVY	2.0*14C	67	0.19	577.6	16.9	19.4
RVVY	2.0*15C	67	0.19	630.8	18	20.5
RVVY	2.0*16C	67	0.19	651.3	18	20.5
RVVY	2.0*17C	67	0.19	706.2	18.6	21.6
RVVY	2.0*18C	67	0.19	726.7	18.6	21.6
RVVY	2.0*19C	67	0.19	755.7	18.6	21.6
RVVY	2.0*20C	67	0.19	790.2	19.2	22.2
RVVY	2.0*21C	67	0.19	832.9	19.8	22.8
RVVY	2.0*22C	67	0.19	821.1	20.8	23.8
RVVY	2.0*23C	67	0.19	866.4	21.9	24.9
RVVY	2.0*24C	67	0.19	895.3	21.9	24.9
RVVY	2.0*25C	67	0.19	932.9	22.5	25.5
RVVY	2.0*26C	67	0.19	961.9	22.5	25.5
RVVY	2.0*27C	67	0.19	990.8	22.5	25.5
RVVY	2.0*28C	67	0.19	1034.7	23.5	26.5
RVVY	2.0*29C	67	0.19	1063.7	23.5	26.5
RVVY	2.0*30C	67	0.19	1092.7	23.5	26.5
RVVY	2.0*31C	67	0.19	1138.6	24.6	27.6
RVVY	2.0*32C	67	0.19	1167.6	24.6	27.6
RVVY	2.0*33C	67	0.19	1196.6	24.6	27.6
RVVY	2.0*34C	67	0.19	1244	25.7	28.7
RVVY	2.0*35C	67	0.19	1273	25.7	28.7
RVVY	2.0*36C	67	0.19	1302	25.7	28.7

RVVY	2.5*2C	84	0.19	153.6	9.3	10.1
RVVY	2.5*3C	84	0.19	188.2	9.7	11.2
RVVY	2.5*4C	84	0.19	233.3	10.9	12.4
RVVY	2.5*5C	84	0.19	289.8	12.1	13.6
RVVY	2.5*6C	84	0.19	348.9	13.4	14.9
RVVY	2.5*7C	84	0.19	411.7	14.2	16.7
RVVY	2.5*8C	84	0.19	488.7	15.9	18.4
RVVY	2.5*9C	84	0.19	565.7	17	19.5
RVVY	2.5*10C	84	0.19	563.6	17.2	19.7
RVVY	2.5*11C	84	0.19	599	17.8	20.3
RVVY	2.5*12C	84	0.19	624.2	17.8	20.3
RVVY	2.5*13C	84	0.19	685.5	18.9	21.4
RVVY	2.5*14C	84	0.19	710.2	18.9	21.4
RVVY	2.5*15C	84	0.19	775.9	19.7	22.7
RVVY	2.5*16C	84	0.19	801.1	19.7	22.7
RVVY	2.5*17C	84	0.19	869	21	24
RVVY	2.5*18C	84	0.19	894.3	21	24
RVVY	2.5*19C	84	0.19	930	21	24
RVVY	2.5*20C	84	0.19	972.5	21.6	24.6
RVVY	2.5*21C	84	0.19	1025.4	22.2	25.2
RVVY	2.5*22C	84	0.19	1136.8	24	27
RVVY	2.5*23C	84	0.19	1178.6	25.3	28.3
RVVY	2.5*24C	84	0.19	1201.3	25.3	28.3
RVVY	2.5*25C	84	0.19	1256.1	25.9	28.9
RVVY	2.5*26C	84	0.19	1291.9	25.9	28.9
RVVY	2.5*27C	84	0.19	1258.8	25.9	28.9
RVVY	2.5*28C	84	0.19	1316.4	27	30
RVVY	2.5*29C	84	0.19	1352.2	27	30
RVVY	2.5*30C	84	0.19	1387.9	27	30
RVVY	2.5*31C	84	0.19	1448.6	28.3	31.3
RVVY	2.5*32C	84	0.19	1484.3	28.3	31.3
RVVY	2.5*33C	84	0.19	1520.1	28.3	31.3
RVVY	2.5*34C	84	0.19	1582.9	29.5	32.5
RVVY	2.5*35C	84	0.19	1618.7	29.5	32.5
RVVY	2.5*36C	84	0.19	1654.5	29.5	32.5

RVVY	4.0*2C	77	0.25	211.8	10.5	12
RVVY	4.0*3C	77	0.25	262.9	11.2	12.7
RVVY	4.0*4C	77	0.25	328	12.5	14
RVVY	4.0*5C	77	0.25	408.6	14	15.5
RVVY	4.0*6C	77	0.25	492.7	15	17.5
RVVY	4.0*7C	77	0.25	582	16.5	19
RVVY	4.0*8C	77	0.25	690.2	18.5	21
RVVY	4.0*9C	77	0.25	798.8	19.3	22.3
RVVY	4.0*10C	77	0.25	799.5	19.5	22.5
RVVY	4.0*11C	77	0.25	851.2	20.2	23.2
RVVY	4.0*12C	77	0.25	890.1	20.2	23.2
RVVY	4.0*13C	77	0.25	977.1	21.5	24.5
RVVY	4.0*14C	77	0.25	1015.2	21.5	24.5
RVVY	4.0*15C	77	0.25	1108.1	22.9	25.9
RVVY	4.0*16C	77	0.25	1146.8	22.9	25.9
RVVY	4.0*17C	77	0.25	1242.7	24.4	27.4
RVVY	4.0*18C	77	0.25	1281.5	24.4	27.4
RVVY	4.0*19C	77	0.25	1334.6	24.4	27.4
RVVY	4.0*20C	77	0.25	1396.4	25.2	28.2
RVVY	4.0*21C	77	0.25	1472.2	25.9	28.9
RVVY	4.0*22C	77	0.25	1500.9	27.9	30.9
RVVY	4.0*23C	77	0.25	1585.3	29.4	32.4
RVVY	4.0*24C	77	0.25	1638.4	29.4	32.4
RVVY	4.0*25C	77	0.25	1708	30.2	33.2
RVVY	4.0*26C	77	0.25	1761.1	30.2	33.2
RVVY	4.0*27C	77	0.25	1814.2	30.2	33.2
RVVY	4.0*28C	77	0.25	1896.1	31.5	34.5
RVVY	4.0*29C	77	0.25	1949.2	31.5	34.5
RVVY	4.0*30C	77	0.25	2002.3	31.5	34.5
RVVY	4.0*31C	77	0.25	2088.3	32.9	35.9
RVVY	4.0*32C	77	0.25	2141.4	32.9	35.9
RVVY	4.0*33C	77	0.25	2194.4	32.9	35.9
RVVY	4.0*34C	77	0.25	2283.4	34.4	37.4
RVVY	4.0*35C	77	0.25	2336.5	34.4	37.4
RVVY	4.0*36C	77	0.25	2389.6	34.4	37.4

RVVY	6.0*2C	77	0.31	285	12.1	13.6
RVVY	6.0*3C	77	0.31	357.5	13	14.5
RVVY	6.0*4C	77	0.31	448	14.5	16
RVVY	6.0*5C	77	0.31	558.7	15.6	18.1
RVVY	6.0*6C	77	0.31	673.8	17.3	19.8
RVVY	6.0*7C	77	0.31	795.6	19	21.5
RVVY	6.0*8C	77	0.31	941.9	20.8	23.8
RVVY	6.0*9C	77	0.31	1089	22.2	25.2
RVVY	6.0*10C	77	0.31	1096.1	22.5	25.5
RVVY	6.0*11C	77	0.31	1169.4	23.3	26.3
RVVY	6.0*12C	77	0.31	1226.4	23.3	26.3
RVVY	6.0*13C	77	0.31	1345.2	24.8	27.8
RVVY	6.0*14C	77	0.31	1401.1	24.8	27.8
RVVY	6.0*15C	77	0.31	1527.7	26.4	29.4
RVVY	6.0*16C	77	0.31	1584.3	26.4	29.4
RVVY	6.0*17C	77	0.31	1714.7	28.2	31.2
RVVY	6.0*18C	77	0.31	1771.5	28.2	31.2
RVVY	6.0*19C	77	0.31	1846.8	28.2	31.2
RVVY	6.0*20C	77	0.31	1933.3	29	32
RVVY	6.0*21C	77	0.31	2037.8	29.9	32.9

RVVY	10*2C	77	0.4	489	16	18.5
RVVY	10*3C	77	0.4	607.5	17.2	19.7
RVVY	10*4C	77	0.4	760	18.8	21.8
RVVY	10*5C	77	0.4	923.1	21	24
RVVY	10*6C	77	0.4	1093.5	23.4	26.4
RVVY	10*7C	77	0.4	1262.3	25.8	28.8
RVVY	10*8C	77	0.4	1455.4	28.9	31.9
RVVY	10*9C	77	0.4	1645.7	31	34
RVVY	10*10C	77	0.4	1820.5	31.3	34.3
RVVY	10*11C	77	0.4	1996.1	32.5	35.5
RVVY	10*12C	77	0.4	2086.2	32.5	35.5

RVVY	16*2C	121	0.4	677.7	18.6	21.1
RVVY	16*3C	121	0.4	850.8	19.5	22.5
RVVY	16*4C	121	0.4	1069.1	21.9	24.9
RVVY	16*5C	121	0.4	1301.8	24.5	27.5
RVVY	16*6C	121	0.4	1544.2	27.2	30.2
RVVY	16*7C	121	0.4	1784.5	30	33
RVVY	16*8C	121	0.4	2057.1	33.6	36.6
RVVY	16*9C	121	0.4	2326.5	36	39

RVVY	25*2C	189	0.4	1036.2	22.5	25.5
RVVY	25*3C	189	0.4	1306.9	24.2	27.2
RVVY	25*4C	189	0.4	1646.4	27.2	30.2
RVVY	25*5C	189	0.4	2007.7	30.4	33.4
RVVY	25*6C	189	0.4	2383.8	33.8	36.8

RVVY	35*2C	265	0.4	1499	27.6	30.6
RVVY	35*3C	265	0.4	1886.1	29.7	32.7
