P5 Outdoor LED Module 16x16 32x32 Dots 5mm Pixel Pitch Good Heat Dissipation

Categories LED Display Module
Brand Name: COREMAN
Model Number: CM-OS-P5-1/8S-160mm x 160mm
Certification: CE,Rohs, FCC, CCC, UL, CAS,SASO
Place of Origin: China
MOQ: 1pcs
Price: 11.5~13.5USD
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 50,000pcs/ month
Delivery Time: 5-10 days
Packaging Details: Cartoon case, wooden case
Color: RGB
Funciton: text,picture,animation, video
chip: Silan,Epistar,opto,Nicha,Cree(optional)
Input: 5V
LED module size: 160mm x 160mm
Module resolution: 32 x 32
LED chip: SMD2727
IC: MBI5124, ICN2038S, MBI5153 etc
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

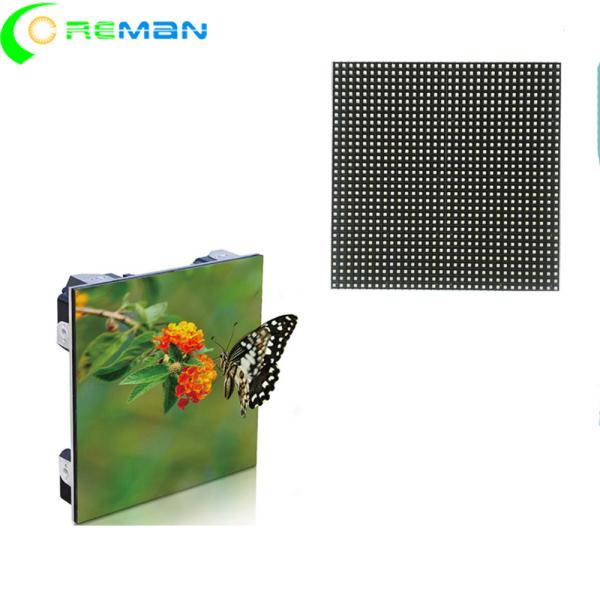

P5 Outdoor LED Module 16x16 32x32 Dots 5mm Pixel Pitch Good Heat Dissipation


Product feature :


1) Testin the led mdule under strict condition, the led display can be used in extream hot or cold weather

2) High adjustable brightness can meet the demands of the changing requirement of Customer in different environments.

3) No mosaic due to excellent flatness and nice uniformity of light-emitting.

4) Wide viewing angles and the horizontal angle can reach 140° , The images effect will not change largely in the range.

5) Good heat dissipation capability because of the unique design of vent fan (liking shutter).


Specification:

Pixel pitch5mm5mm
Module size160mm*160mm320mm*160mm
Resolution of module32*32 dots64*32 dots
Density of pixel40,000 dots/m240,000 dots/m2
LED SizeSMD2727SMD2727
Pixel configuration1R1G1B1R1G1B
Best viewing distance≥5m≥5m
Horizontal viewing angle140º140º
Viewing angle140º140º
Driving method1/8 scan1/8 scan
Brightness≥6500cd/m2≥6500cd/m2
Refresh rate≥1920Hz≥1920Hz
IP gradeIP65IP65
Max power consumption26.5W/pcs50W/pcs
Avg power consumption8.8W/pcs16.7W/pcs
Input voltageDC5VDC5V
Storage temperature—40°C~65°C—40°C~65°C
Working temperature—30°C~55°C—30°C~55°C
MTBF≥10,000 hours≥10,000 hours
Life span≥100,000hours≥100,000hours
Control systemNova/Linsn/Colorlight/DBstar etcNova/Linsn/Colorlight/DBstar etc
Specification might be slightly different based on different components

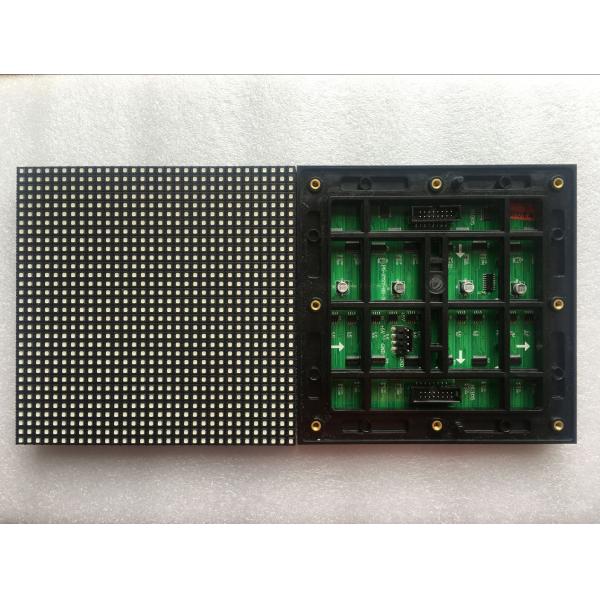

Detail picture of led module

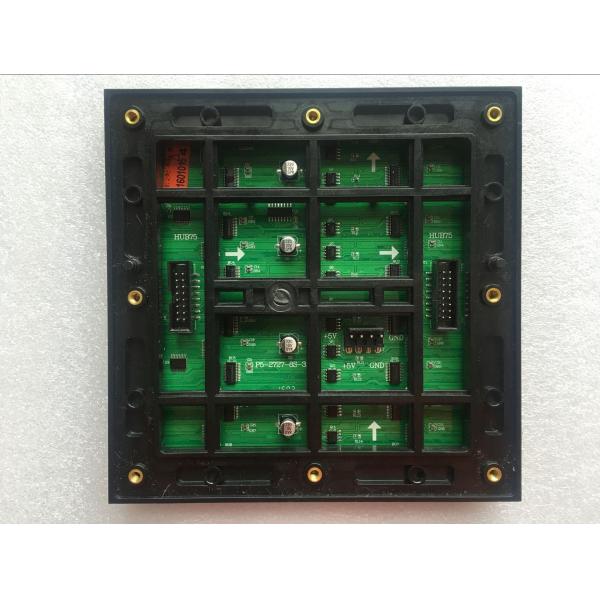

P5-160mm x 160mm-32x32-1/8S

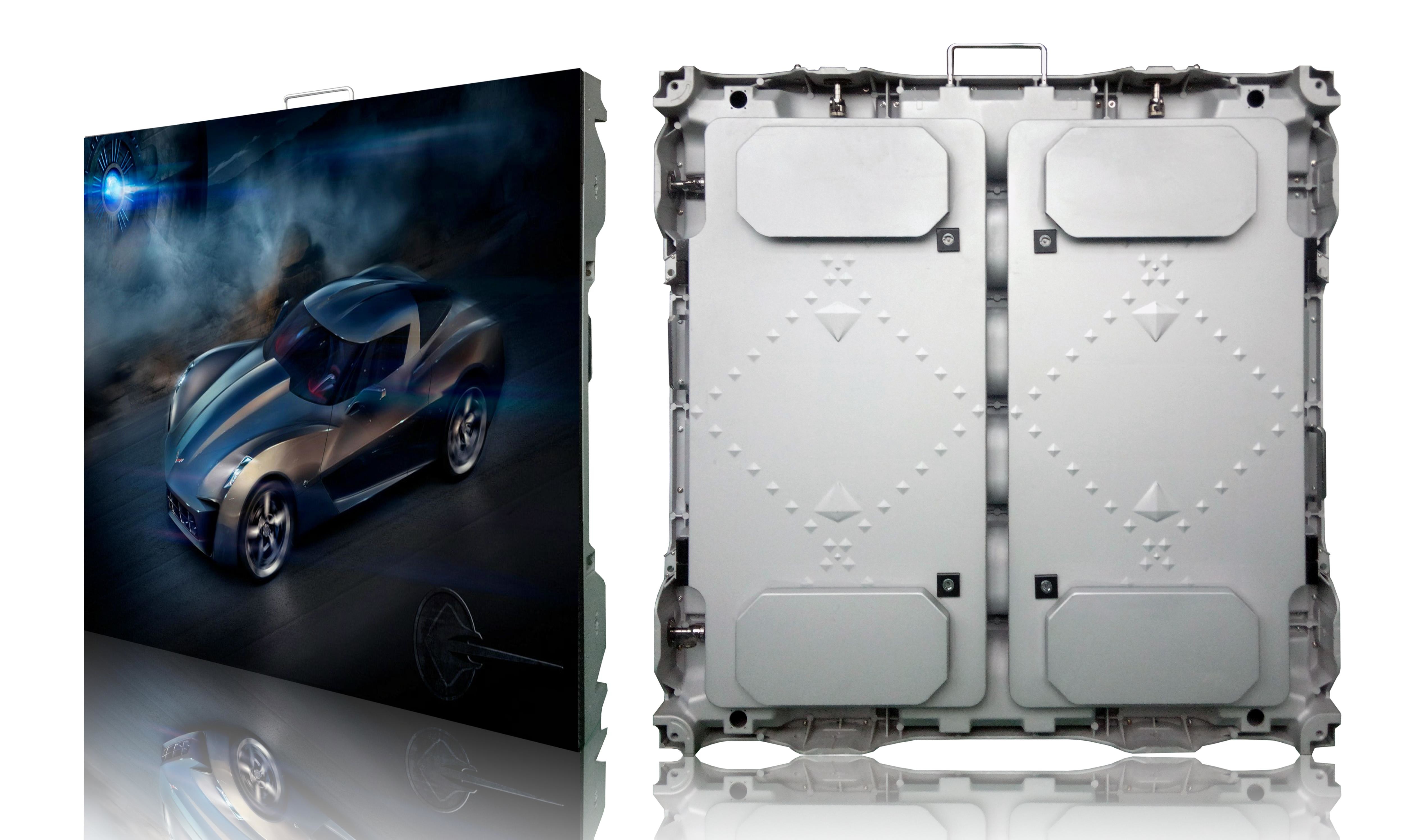

Cabinet detail and feature


Rental cabinet size : 640mm(W) x 640mm(H) or 960mm(W) x 960mm(H)

Fixing cabinet size : Customized , Standard size is 960mm(W) x 960mm (H)


Rental cabinet fature

Ultra-light, it is 40% of the regular steel cabinet

Super slim,thickenss is 60~75cm, the traditional cabinet thickness is 120cm

High strength: support the weight of 300kg through tension test.

Easy installation: installed by quick lock for 20s only

High precision: seamless splicing though CNC machining

High universality: can be processed according to module drawing,used for outdoor and indoor

Easy maintenance: can be maintained form front side


Rental type cabinet can be used for rental and fixing type led display), but fixing type cabinet can't be used for rental type display.


640mm(W) x 640mm(H)





960mm(W) x 960mm(H)



Rental type display Installation : hanging type / standing on the floor





Fxing type led display



Connection diagram


(Video processor is not must, it depends on the size of the display)

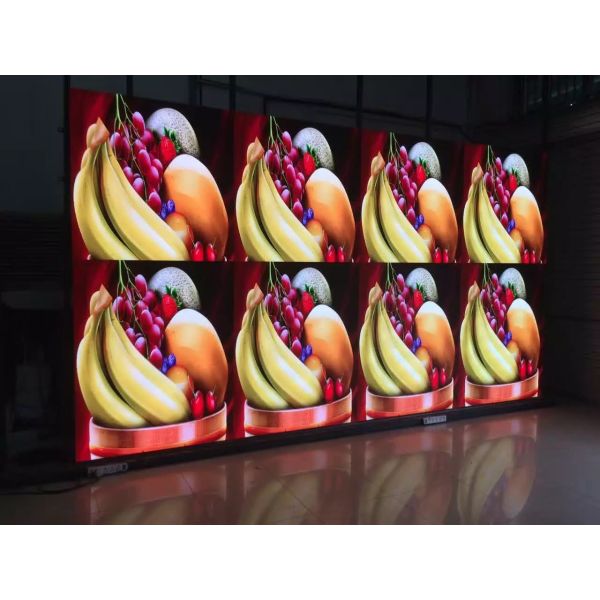

Test and aging effect

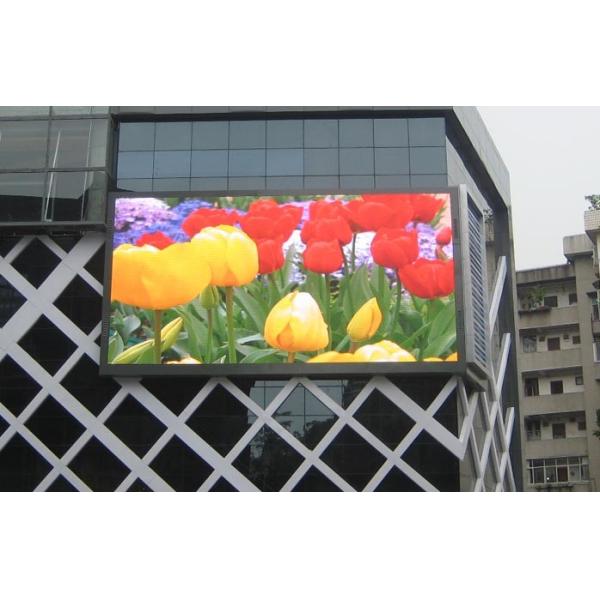

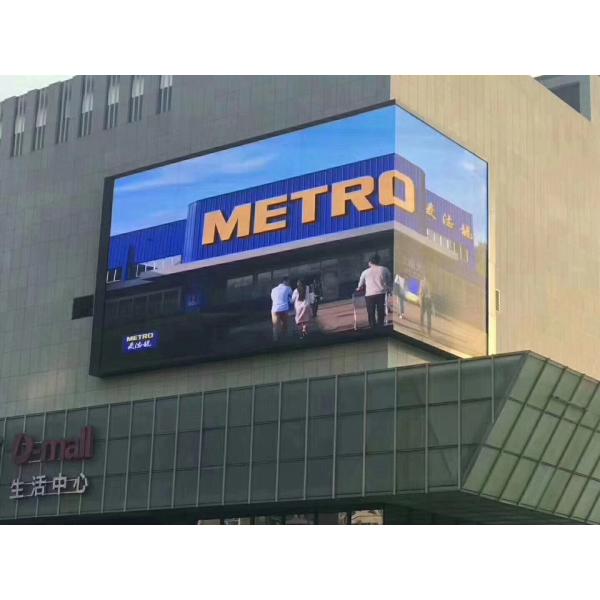

Application:

Shopping center,stage concert background, festival celebration , wedding, exhibition, meeting room, CCTV center airport etc



Our service


1) Can provide the installation draw and send the engineer to install the led display according to negotiation


2)Your inquiry related to our products or price will be replied in 24hrs


3)OEM&ODM,any your customized lightings we can help you to design and put into product


4)Distributoership are offered for your unique design and some our current models


5)Protection of your sales area,ideas of design and all your private information


6)Top Quality+Reasonable Price+Responsible After Service=Successful & Win
