| Categories | Fiber Laser Cutting Machine |
|---|---|
| Brand Name: | ZODO |
| Model Number: | ZD-6015 |
| Certification: | CE,FDA,ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | USD38000-42000$/SET |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50SETS PER MONTH |
| Packaging Details: | international wooden case |
| apply material: | metal,carbon steel |
| model: | f6015 |
| working area: | 6000*1500mm |
| laser source: | 2000w |
| laser type: | fiber laser |
| Company Info. |
| Liao Cheng Zuogong Tool Co.,Ltd |
| View Contact Details |
| Product List |
METAL FIBER LASER CUTTING MACHNE
6015 Fiber laser cutting machine 1500*6000mm for stainless steel carbon steel piping and sheet
| Model | 1560 |
| Working area (L*W) | 6000×1500mm |
| X-axis running area | 6500mm |
| Y-axis running area | 3000mm |
| Z-axis running area | 150mm |
| X/Y axis Repeated Position Precision | ±0.02mm |
| Machine Outlook | Open Type |
| Fiber Laser source | MAX2000w |
| Cross beam | Reinforced aluminum alloy crossbeam |
| Laser Head | Empower head |
| Transmission system | Dual-drive, precise rack and pinion |
| Guide rail | PMI OR hiwin from Taiwan |
| Rack&pinion | APEX from Taiwan |
| Speed Reducer | Motor reducer shimpo ,Japan |
| Sheet part Servo motor | Yaskawa from Japan, Y axis-- 850w*2, X axis--1000w*1, Z axis-- 400w*1 |
| Water chiller | Hanli water chiller or S&A |
| Control System | Bochu brand Cypcut control software |
| Solenoid valve | SMC from Japan |
| Computer | Industry computer |
| Cutting Head | Auto tracking and Auto height adjustment |
| Operating console | LCD screen with key board and mouse |
| SMOKE Extraction | 1500W blower for suction of fumes. |
Scrap removal system | Wheel mounted trays are provided below the cutting area to Scrap removal system remove the scrap or small work piece fallen below the work support grits. |
| Oil injector | Automatic lubricating system |
Can do OEM machine according to customer's requirements about logos. 5.Warranty: Three Years warranty for the whole machine(consumbles except).
Fiber source can be 800w-3000W ,can be Max source ,Raycus fiber source,IPG fiber source.
2.Application
Metal cutting, manufacturing of electrical switches, elevator manufacturing, household appliances manufacturing, kitchenware ,Instrument,decoration and so on
manufacturing, processing tools, and other machinery manufacturing and processing industries.

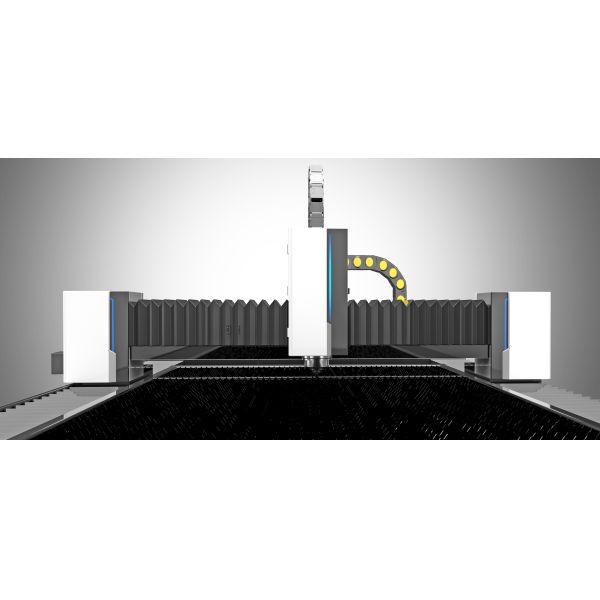

3.Machine pic
|
