| Categories | LCD Video Wall |
|---|---|
| Brand Name: | Brand Name |
| Model Number: | Model Number |
| Place of Origin: | Place of Origin |
| Price: | Negotiation |
| MOQ: | 1 Unit/Units |
| Products Status: | Stock |
| Application: | Application |
| Screen Size: | Screen Size |
| Response Time: | 8ms |
| Brightness: | Brightness |
| Interface Type: | D-Sub, DVB, DVI, HDMI, RS232C, S-Video, TV-out, YPBPR |
| Language: | Chinese/English(customized) |
| color: | Black(customized) |
| On mode(average): | 300W(max) |
| Standby mode: | 3w(max) |
| Packaging Details: | Carton Box within PE Foam, wooden box |
| Delivery Time: | 3-8 working days after delivery |
| Payment Terms: | T/T,L/C,Western Union,Paypal and MoneyGram |
| Supply Ability: | 1000 Piece/Pieces per Week |

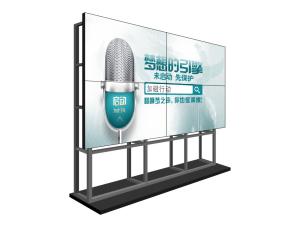

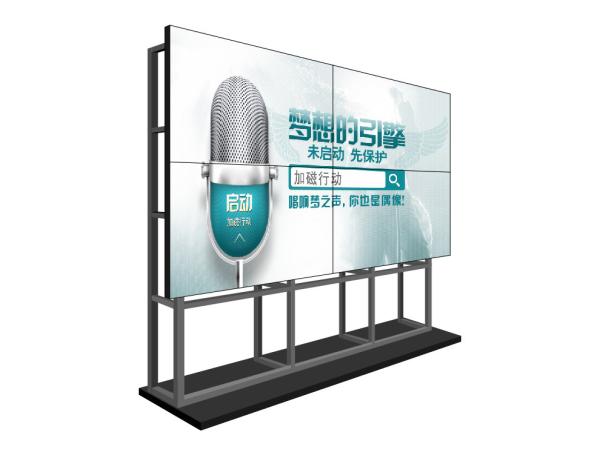

| LCD Video Wall Screen (SAMSUNG DID) | |||||
| Specifications | |||||
| Model No. | PJ4603(US-LTI460AA05) | ||||
| Panel Size | 46'' Samsung DID LCD Screen(super narrow bezel 6.7mm) | ||||
| Aspect Ratio | 16:9 | ||||
| Max Resolution Support | 1366x768 | ||||
| Color | 8Bit,16.7M | ||||
| Brightness (nits) | 450cd/m2 | ||||
| Contrast | 2000:1 | ||||
| Visual Angle (H/V) | 178° | ||||
| Response Time | <=6ms | ||||
| Life(hrs) | >60,000(hrs) | ||||
| Input and output | |||||
| DVI | 1 | ||||
| HD | 1 | ||||
| VGA | 1 | ||||
| YPbPr | 1(BNCx3) | ||||
| S-video | 1(BNCx2) | ||||
| Composite Video Input/(AV) | 3(BNCx3) | ||||
| Composite Video Output | 2(BNCx2) | ||||
| Control signal input and loop out | RS232(RJ45-8) | ||||
| Split Screen | Support Picture in Picture(PIP/POP) | ||||
| Power | |||||
| Power Supply | AC100V~240V | ||||
| Maximum Power Consumption | 250W | ||||
| Standby Power Consumption | <=3W | ||||
| Temperature | |||||
| Working Temperature | 0°C~50°C | ||||
| Working Humidity | 20%-80% | ||||
| Dimension | 1025.65x579.84x126.73mm | ||||
| Video Wall Controller(Built-in each Screen) | |||||
| Model No. | US-P816A | ||||
| Input | CVBS | ||||
| VGA | |||||
| YPbPr/YCbCr | |||||
| Y/C | |||||
| Output | LVDS | ||||
| Operate mode | Panel key operation(Customized) | ||||
| Standard RS232 port( provide free control software) | |||||
| Infrared Remote Control Operation | |||||
| Engineering software | Customized | ||||
| Working temperature | 0~70 °C | ||||
| working humidity | 5~95 %RH | ||||
| AC voltage power supply | 100-240V/50, 60Hz | ||||
| power consumption | Max 300W,according to different Screen models | ||||
| Dimension | 338×295×60(mm) | ||||
| Weight | About 3.5KG | ||||
|
