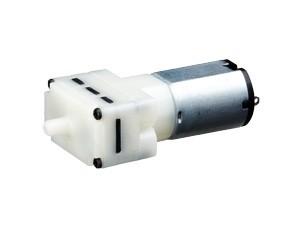

AIRJET fluid transfer pump 3V mini air pump

Model: KMP12A-3A

Characteristic

1. Rated Voltage DC3.0V

2. Range of Operating Voltage DC2.0~ 3.2 V

3. Rated Current <460mA

4. Inflation Time <8sec (From 0 to 300mmHg in a 50cc tank)

5. Power Consumption 1.1W

6. Fluid Applied Air

7. Oulet Port O.D. 3.1mm

8. Air Flow >1.0LPM

9. Maximum Pressure >350mmHg

10. Leakage Max 3mmHg/min (From 300mmHg at 50cc tank)

11. Restart Voltage 2.0V

12. Noise <65dB (30cm away)

13. Life 30,000 times (on 7sec,off 7sec as one cycle)

KMP12A-3A outline figure

Electric parameters
