Weatherproof Network Base Station Cabinet , Large Outdoor Electrical Cabinet

Quick Details:

Payment & Shipping Terms:

1. Specifications

(1) Technical Parameters

(2) Accessories List

2. Description

The cabinet is two compartments cabinet. The cabinet cooling use air conditioner and fans, to ensure the equipments operate normally at stable temperature range, so as to make the service life of the equipments much longer and their performance more stable.

2.1 Cabinet Material

The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.

2.2 Cabinet Structure

The cabinet includes 19” equipment installation rack and battery shelf. The cabinet includes two air conditioners, installed on front doors.

2.3 Cabinet Door and Lock

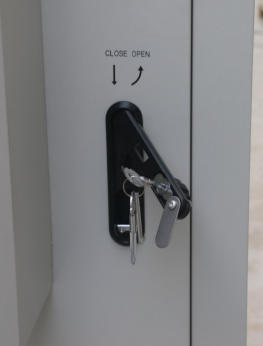

The cabinet includes two front doors. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.

2.3.1 Door lock theft proof design

• Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

• Three point lock

2.4 Cable Inlet

Feeder cable and other external cables all use bottom wiring method.

2.5 Grounding Protection

• The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
• The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
• Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

2.6 Connection and Fastening

• Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
• Door hinges use inner hinge mode.

2.7 Appearance and Surface Treatment

Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.

3. Applications

The DDTE039 Outdoor Base Station Cabinet is mainly used in wireless communication base station, such as 3G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

Cooling Diagram

4. Packing and Shipping

Our Delivery Agent

The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
