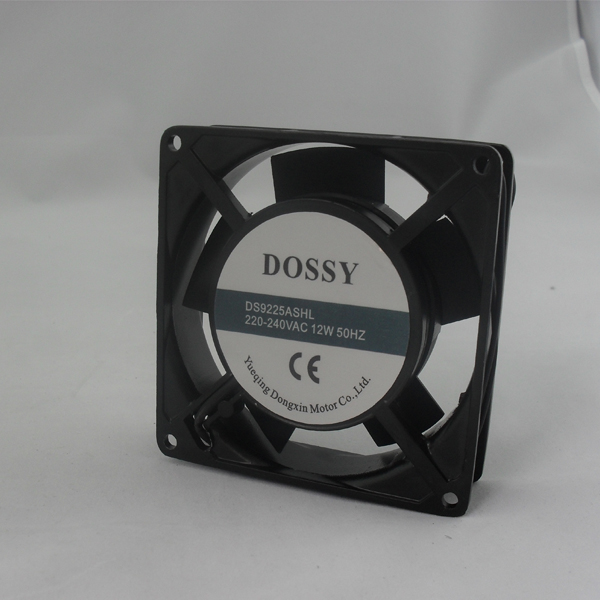

Axial fan 92*92*25mm with plastic blades ac axial flow fan 220v

Specifications of DOSSY Axial Flow Cooling Fan

1.Fan Size:92mm axial cooling fan
2.Our AC axial cooling fan with Stable balance work,good price
3.Our cooling fan have sleeve and ball bearing for choose
4. Our Axial fan have CE/CCC certifcation
5.OEM servic make your company logo in the middle of the axial fan

1. Axial flow fan motor: Shaded pole motor structure.impedance protect
2. Axial fan Frame:Casting aluminum alloy with black paint,anti-corrosion,anti-oxidization
3. Cooling Fan blades:Once moulded by pour mold,PBT+30%grass firbe+VO anti-burning preparation
4. Withstand voltage:Creep age current;0.5mA,witstand 1800V/Min
5. Isulating grade:B protecting grade:IP30
6. The setting bolt of fan: M4*8
7. Power supply:wires and switches connection
8. Blades rotating direction:counter-clockwise looking from the blades

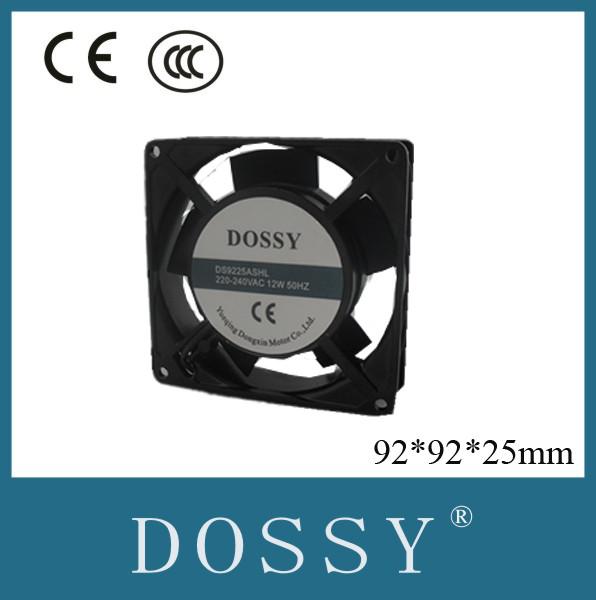

9. 92mm ac axial cooling fan 92*92*25mm

10. Model	Bearing System	Rated Voltage (AC)	Frequency (HZ)	Power (W)	Speed (RPM)	Air Flow (CFM)	Noise DB(A)	Weight (g)
    DS9225ASHL	Slevee	110V/220V/380V	50HZ/60HZ	12	2350	49	36	260
    DS9225ABHL	Ball	110V/220V/380V	50HZ/60HZ	12	2350	49	36	260
    DS9225ASHT	Slevee	110V/220V/380V	50HZ/60HZ	12	2350	60	36	260
    DS9225ABHT	Ball	110V/220V/380V	50HZ/60HZ	12	2350	60	36	260
