| Categories | Rock Drill Parts |
|---|---|
| Brand Name: | YYG |
| Model Number: | YYG 260 |
| Place of Origin: | China |
| MOQ: | 1PCS |
| Price: | Price negotiations |
| Payment Terms: | T/T |
| Supply Ability: | 1+PCS+20 work days |
| Delivery Time: | 20 work days |
| Packaging Details: | wooden box package |
| Models: | YYG 260 |
| Percussion Oil Pressure: | 175 bar |
| Percussion Oil Flow: | 140 I/min |
| Rotation Oil Flow: | 70 I/min |
| Rotation Oil Pressure: | 150 bar |
| Output energy: | 30 kW |
| Company Info. |
| Xi'an Huizhong Mechanical Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

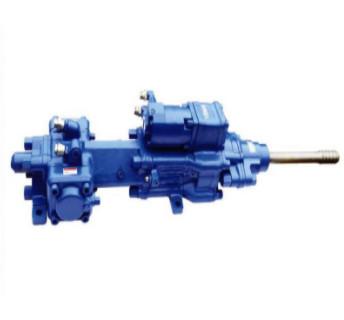

Rock Drilling Tools YYG 260 hydraulic rock drill used in surface mining, underground deep hole
Product feature of Rock Drilling Tools
YYG260 is used in surface mining, underground deep hole.
Contains a high strength spline sleeve for T51 specifications.
Effective aperture is 127mm or maximum aperture 165mm.
Product data of Rock Drilling Tools
| Technical data | ||
| Percussion Oil Pressure | bar | 175 |
| Percussion Oil Flow | l/min | 140 |
| Rotation Oil Pressure | bar | 150 |
| Rotation Oil Flow | l/min | 70 |
| Rotation torque(max) | Nm | 1500 |
| Rotation speed(max) | rpm | 190 |
| Percussion frequency | min | 2500-3700 |
| Percussion energy | J | 450 |
| Output energy | kW | 30 |
| Drilling diameter | mm | 127 - 165 |
| Weight | kg | 260 |
|
