100 Ton Lowbed Semi Trailer , Gooseneck 4 Axle Lowboy Trailer

Categories Lowbed Semi Trailer
Brand Name: ALSTON
Model Number: ATM3316LBT
Certification: CCC, ISO, CE
Place of Origin: CHINA
MOQ: 1 unit
Price: $12000/unit-$18000/unit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 units per month
Delivery Time: 15-30 working days
Packaging Details: Nude, Waxing before delivery
Product Name: Lowbed Semi Trailer
Type: Truck Trailer
Suspension: Mechanical Suspension
Axle: 13ton Fuwa brand
Dimension: 13000x3000x1650mm
Loading Weight: 100 Tons
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

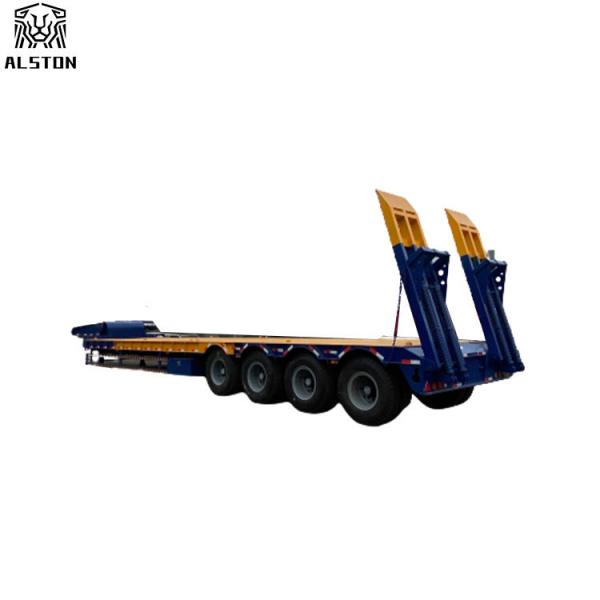

100 Ton Lowbed Semi Trailer , Gooseneck 4 Axle Lowboy Trailer

4 Axles 100 Tons Heavy Duty Gooseneck Platform Deck Lowbed Semi Trailer


Lowbed Semi Trailer Features:


Lowbed semi trailers are incredibly versatile. Various industrial sectors can use this equipment to facilitate

the movement of heavy and over-width cargo. Heavy duty machinery which needs an extra width for loading

on this trailer. As per your requirements and specifications, we can modify the trailer’s structure for extra space.


The stability factor of lowbed semi trailer makes it a popular piece of equipment in the marketplace. This trailer’s

consistent stability renders it suitable for everyday use as it keeps the cargo stable even when it is mobile.

It is used for transporting heavy cargo and for tracking purposes. Lowbed semi trailers are heavy-duty vehicle.

It can easily transport heavy, comprehensive, and tall cargo from one place to another. The strength can be

maximized by increasing the width of the support base. This trailer’s cargo platform is positioned to lower the

cargo centre’s height, hence increasing the stability of the loaded goods during transportation.


LOWBED SEMI TRAILER SPECIFICATIONS

Dimension and Weight
Overall Dimension(mm)13000x3000x1650mm
Working Deck Dimension(mm)9000x3000x1350mm
Platform thickness(mm)4mm Diamond Plate
Main Beam“H”main beam design,Q345B carbon steel,
the height of the beam is 500 mm,
upper plate is 16mm,down plate is 18mm, middle plate is 10 mm.
Wheelbase7,650mm+1,310mm+1,310mm+1,310mm
Payload60,000kg
Tare weight9,000kg
G.V.W.R.69,000kg
FunctionTo transport bulk goods or heavy equipment like loader or excavator
Running System
Axle13Ton, ZY brand optional FUWA brand,
one hundred fifty thousand Kilometers no need maintenance
Axle NumberFour
Tire11.00R20, 16 pcs Taitong brand
Rim8.0*22.5 steel disc wheel, 10 holes ISO, 16 pcs
Suspension systemCommon Mechanical Suspension
Steel Spring10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical SystemChinese standard 24V lighting system
Brake system:Dual line pneumatic brake, SAE hose and connector,optional ABS
Brake air chamber8 units T30/30 spring brake chambers
Emergency relay valveWabco relay valve
Traction/King Pin2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster
Landing GearZhenhua brand 28ton external two speed telescopic manual operation. 2,500mm behind the kingpin location

Container

Ro-Ro Ship

Bulk Ship
