F3000 50 Ton Dump Truck 8x4 Cargo Dump Truck Diesel Fuel

Categories Heavy Duty Dump Truck
Brand Name: SHACMAN
Model Number: SX3315DR366
Certification: CCC,ISO
Place of Origin: China
MOQ: 1unit
Price: USD43,500.00-USD46,000.00 per unit
Payment Terms: 30%TT as deposit, the balance should be paid before delivery; 100% irrevocable confirmed L/C at sight
Supply Ability: 3000units/month
Delivery Time: 30-45 days
Packaging Details: Nude packing after painted wax
Loading capacity: 40-50 tons
Drive wheel: 8x4
Engine capacity: > 8L
Fuel type: Diesel
Gross vehicle weight: 31000
Cab: with Air conditioner
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

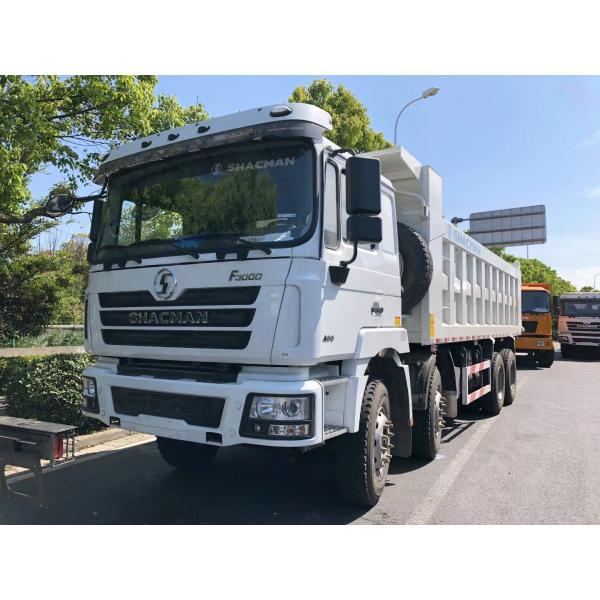

F3000 50 Ton Dump Truck 8x4 Cargo Dump Truck Diesel Fuel

SHACMAN F3000 8x4 40-50 Ton Construction Work Heavy Duty Dumper Truck


SHACMAN F3000 Dump Trucks can easily cope with long-distance heavy haul transportation such as mines

and muck in various markets of the world.

ModelShacman F3000 Dump Truck
Driving type8x4
WeightComplete curb mass (kg)12160
GVW (kg)32500
DimensionsLxWxH (mm)12000x2490x3450
Body size(mm)7400x2300x1100,1300,1500
Front/rear overhang(chassis)1525/1450
Wheel base (mm)1800+3800+1350
Track width (mm)2036/1850
EngineBrandWeichai
ModelWP10.336
Power (kw/HP)247/336
Max. torque (N.m)/rpm1250/1200-1600
Displacement (L)9.726
Emission standardEuro 2
AxlesBrandHANDE
Front axle7500kg
Rear axle16000kg,Double reduction driving axle with inter-wheel differential and differential lock
Ratio5.262
Optional9500kgfront axle
PerformanceMax. speed ( km/h)76
Min. turning circle (m)15
Min. ground clearance (mm)314
Approach/Departure angle(°)28/30
Max. Gradeability (%)32
TransmissionBrandFAST
Model9JS135
Control typeManual
Gear shift9-forward and 1-reverse speeds

This truck adopt through-ype technology and rear axle single-stage reducer, so which is with high efficiency drive.

The use of advanced design and optimized the design of he frame, making the strucure more reasonable, durable, with strong bearing capacity.
