| Categories | Intelligent Pressure Switch |
|---|---|
| Brand Name: | WNK |
| Model Number: | WNK-SPS |
| Place of Origin: | Anhui, China |
| MOQ: | 1pcs |
| Price: | $85.00 - $105.00/Pieces |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 2000 Set/Sets per Week |
| Delivery Time: | 5-8 work days |
| Packaging Details: | each product in one inner paper box with foam protection |
| Max. Current: | 1.0A |
| Max. Voltage: | 30V DC |
| Max. Working Pressure: | 600bar |
| Measured media: | liquid, gas and steam |
| Pressure range: | -100KPa~60MPa |
| Output signals: | 4~20mA, 0-5V, 0-10V, RS485 |
| Accuracy: | 0.5%F.S |
| Switching type: | NO/NC |
| Display: | OLED |
| Protection class: | IP65 |
| Housing material: | 304SST |
| Power supply: | 12-30V DC |
| Port: | Shanghai port |
| Company Info. |
| Hefei WNK Smart Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

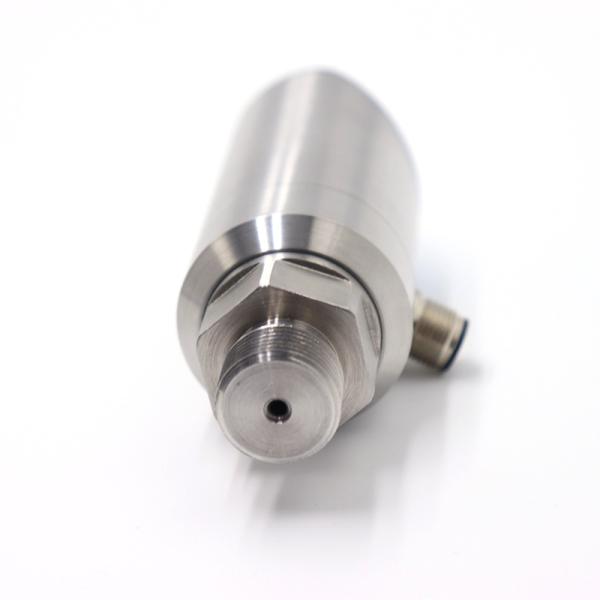

4-20mA Modbus Output Flush Diaphragm High Temperature Electronic Pressure Switch
The pressure switch SPS is designed for pressure monitoring and measure-ment in liquid and gaseous media. The SPS is suited for general industrial applications such as machine and plant engineering, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one and the same device. In its standard configuration it has two switching outputs (PNP or NPN). In addition, there are configurations available with an analog output signal (0...20mA| 420 mA or 0...5V| 010 V) as well as with RS485 Link.
1. Smart type, with PNP/NPN switching.
2. Swithing points settable, NO/NC availalbe
3. With OLED display, with 5 digit available.
4. Provide RS485 communication for option.
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
|
