| Categories | Stone Crusher Machine |
|---|---|
| Brand Name: | ZTIC |
| Model Number: | 2PGC Roller Crusher |
| Certification: | ISO/CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
| Delivery Time: | 30 days |
| Packaging Details: | Standard shipping packaging |
| Model: | S800 |
| Roller diameter mm: | 800 |
| Capacity t/h: | 2-5 |
| Broken materials: | PLASTIC, METAL |
| feeding size mm: | 800 |
| Discharging size mm: | 0-50 |
| feature: | large processing capacity |
| advantage: | lower maintenance cost |
| Company Info. |
| Luoyang Zhongtai Industries CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

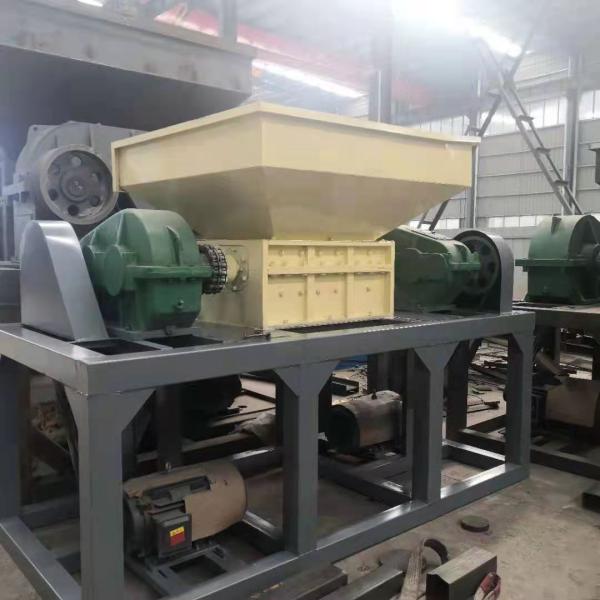

Shredder Application and Features
It is mainly used for crushing packing belt, tire, film, woven bag, fishing nets and other plastic waste utilization.The biaxial independent drive ,Unique knife shaft structure and a four angle rotary knife ,In the production process of high torque in low speed,No shaft winding ,clamping device phenomenon ,Improve production efficiency .
shredder Main technical parameters
| Shredder Model | SX-B 600 | SX-B 800 | SX-B 1000 | SX-B 1200 | SX-B 1600 |
| Diameter Rotary | 255mm | 255mm | 300mm | 300mm | 300mm |
| Rotate the number of knives | 60pcs | 78pcs | 96pcs | 114pcs | 1501pcs |
| Rotate the cutter shaft speed | 90rpm | 90rpm | 90rpm | 90rpm | 90rpm |
| Number of fixed knives | 4pcs | 4pcs | 4pcs | 8pcs | 8pcs |
| Maximum yield | 650kg/h | 900kg/h | 1000kg/h | 1200kg/h | 1500kg/h |
| Feeding caliber | 700mm*800mm | 880mm*1100mm | 1070mm*1150mm | 1280mm*1300mm | 1650mm*2000mm |
| Power of main motor | 18.5KW*2 | 22KW*2 | 30KW*2 | 37KW*2 | 45KW*2 |
| Host weight | 4000kg | 5400kg | 6200kg | 8000kg | 9500kg |
The common structure of shredding machine mainly has two axis (or four axis) shear type, single axis roller cut coarse crushing with tear type and so on three kinds.
1) shear shredder

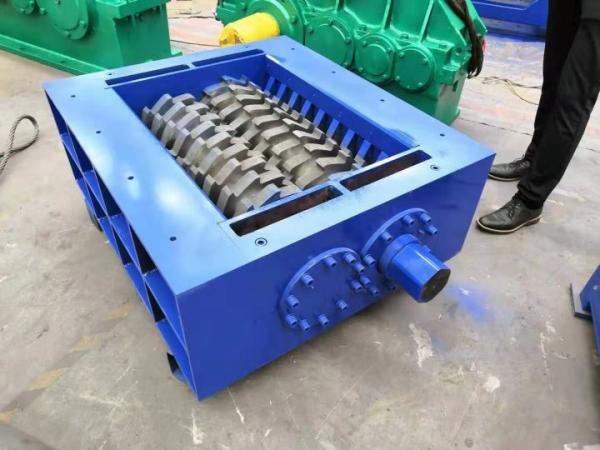

The most common is the shear crusher, he has two to four knife shaft, mainly rely on the principle of "cut and cut" to complete the crushing process, the knife structure is shown in the following figure.The principle of the shredder is to shatter objects like scissors.
2) Roller cutting mill
The following figure is the structure of a roll cutting mill.The machine is mounted on a rotating knife roller with a plurality of blades, and the fixed blade to form a pair cutting, to complete the effect of material crushing.
3) Tear coarse crusher
The principle of tear type coarse crusher is to shake the hook to tear garbage material.This type is mainly used for coarse crushing
| item | description |
| type | one shaft, two shaft |
| materials | plastic, metal recycling |
