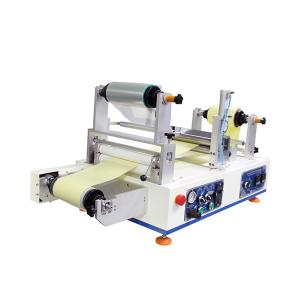

Adhesive Tape Medical Micropore Manufacture Supplier Hot Melt Roll Coating Machine
Use:
The precision laboratory benchtop Hot Melt Coater is capable of producing coated samples or small production of hot melt adhesives, and then laminating to a variety of foils, films, and papers. Lab scale simulations of production processes can be easily set up and studied.
Specification:
| Maximum operating temperature | 200℃ |
| The maximum coating width | 200mm |
| The maximum width of the sheet | 260mm |
| The maximum width of coating | 160 mm |
| The coating length | Unlimited |
| Coating speed | Adjustable, max coating speed: 4.5m/min, the most suitable speed is 1-2m/min, |
| Max capacity | 150g |
| Minimum coating thickness | 0.05mm |
| The maximum gap of total coating | 500 μ m(base material thickness) |
| The optimum coating thickness | ≥ 20 μ m |
| Coating accuracy | ±5 μ m |
| Dimension | 150×518(Containing motor 720)×658mm(L*W*H) |
| Weight | About 120kg |
| Power source | 1 phase, AC 220V,50HZ |
| Rate of power | 1050W |

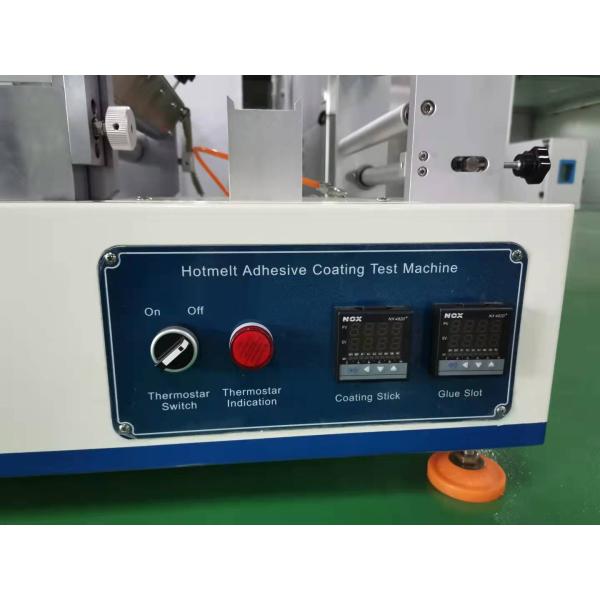

Reference Pictures:
