30W 45W Energy Efficient Flood Lights Outdoor Led Industrial Area Lighting

Sealion Series 30W 45W 60W 80W Industrial LED Flood Light Power Factor > 0.98

Features And Benefits:

1. High efficacy LED Source with long lifespan>50,000 hours
2. 5-year performance warranty
3. Low THD around 10%,Less interference
4. 5KV Surge Protection
5. Robust aluminium housing and strong tempered glass
6. Vibration and shock resistant
7. Low maintenance

Specifications:

Certificate:CE,RoHS
Executive Standard:

Luminaire Efficacy: 140m/W
Lifespan:>50,000 hours
Operating Voltage: 100V-277V/347-480V/141V-392V/491V-679V

Power:30W,45W,60W,80W

Frequency:50/60Hz

Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:8.5Kg
Size:φ 275*195mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0-4mm²(L+N+PE)
Cable Entries: 2X M25*1.5 (M20*1.5,NPT 3/4” are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

Applications:

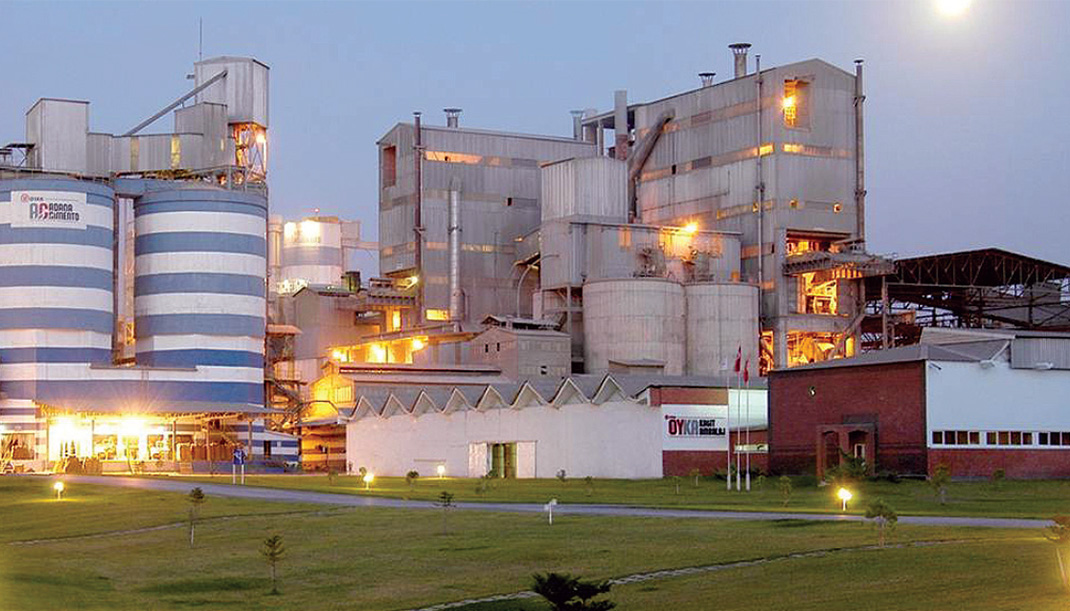

1,Cement plants
2,Warehouse
3,Factory
4,Power Genera
5,Power Transmission
6,Shipping industry

Ordering Information:

Remarks:

1.*Stands for beam angle , including H4V4 / H5V5 / H6V6 .

2.For beam angle H4V4 and H5V5,the luminous flux will be 15% less;

Candela Distribution:



Installation Method:
