| Categories | Drilling Mud Pump |
|---|---|
| Brand Name: | Jereh |
| Model Number: | JR1000QS |
| Certification: | API |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3 sets per month |
| Delivery Time: | 45days |
| Packaging Details: | SKID-MOUNTED |
| Rated Brake Horsepower: | 1000 hp |
| Gear Ratio: | 4.61:1 |
| Maximum Rod Load: | 100,000lbf |
| Overall Dimension: | 50.87×74.6×26.89 in |
| Stroke Length: | 6 in |
| Weight: | 7,231 lbs |
| Company Info. |
| Shaanxi FORUS Petroleum Machinery Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

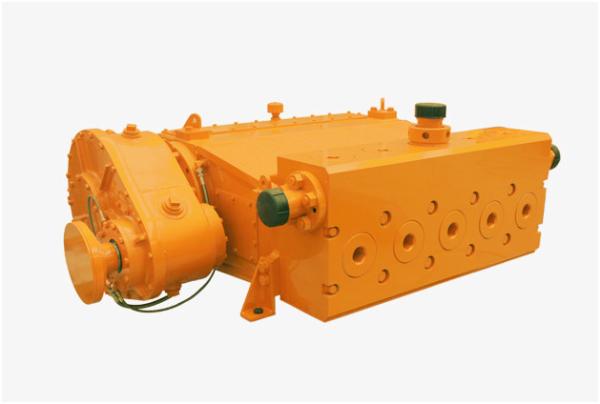

Drilling Mud Pump JR1000QS Quintuplex Plunger Pump 4 1/2" Plumger
Now we has a complete series of high pressure plunger pumps, ranging from 500 hp to 7,000 hp, suitable for various applications such as cementing, acidizing and fracturing. Spare parts mainly include fluid cylinder, valve, valve insert, valve seat, plunger, packing set, junk ring, valve spring and seal. Such complete inventory effectively guarantees quick delivery. Besides, good interchangeability of spare parts can meet customer’s unique requirements.
JR1000QS Quintuplex Plunger Pump
JR1000QS pump is a quintuplex plunger pump with offset design similar to JR600S in configuration, yet with higher horsepower and larger displacement under the same pressure. The compact structure enables twin-pump layout on one unit, making it the top choice of cementing and fracturing unit.
Specifications
| Rated Brake Horsepower: 1000 hp | Gear Ratio: 4.61:1 |
| Maximum Rod Load: 100,000lbf | Overall Dimension: 50.87×74.6×26.89 in |
| Stroke Length: 6 in | Weight: 7,231 lbs |
| Plunger Dia. | Disp. | Displacement at Pump Strokes per Minute | |||||||||||
| in (mm) | gal/rev (L/rev) | 50 | 100 | 120 | 200 | 300 | 450 | ||||||
| gpm (L/min) | psi (MPa) | gpm (L/min) | psi (MPa) | gpm (L/min) | psi (MPa) | gpm (L/min) | psi (MPa) | gpm (L/min) | psi (MPa) | gpm (L/min) | psi (MPa) | ||
| 2 3/4 | 0.77 | 39 | 16,836 | 77 | 16,836 | 93 | 16,665 | 154 | 9,999 | 231 | 6,666 | 347 | 4,444 |
| 69.85 | 2.92 | 146 | 116.1 | 292 | 116.1 | 350.4 | 114.9 | 584 | 69 | 876 | 46 | 1,314.00 | 30.6 |
| 3 | 0.92 | 46 | 15,000 | 92 | 14,147 | 110 | 14,003 | 184 | 8,402 | 275 | 5,601 | 413 | 3,734 |
| 76.2 | 3.48 | 173.8 | 103.5 | 347.5 | 97.6 | 417 | 96.6 | 695 | 57.9 | 1,042.50 | 38.6 | 1,563.80 | 25.8 |
| 3 1/2 | 1.25 | 62 | 10,394 | 125 | 10,394 | 150 | 10,288 | 250 | 6,173 | 375 | 4,115 | 562 | 2,743 |
| 88.9 | 4.73 | 236.5 | 71.7 | 473 | 71.7 | 567.6 | 71 | 946 | 42.6 | 1,419.00 | 28.4 | 2,128.40 | 18.9 |
| 4 | 1.63 | 82 | 7,958 | 163 | 7,958 | 196 | 7,877 | 326 | 4,726 | 490 | 3,151 | 734 | 2,100 |
| 101.6 | 6.18 | 308.9 | 54.9 | 617.8 | 54.9 | 741.3 | 54.3 | 1,235.60 | 32.6 | 1,853.30 | 21.7 | 2,780.00 | 14.5 |
| 4 1/2 | 2.07 | 103 | 6,288 | 207 | 6,288 | 248 | 6,224 | 413 | 3,734 | 620 | 2,489 | 929 | 1,660 |
| 114.3 | 7.82 | 390.9 | 43.4 | 781.9 | 43.4 | 938.3 | 42.9 | 1,563.80 | 25.8 | 2,345.60 | 17.2 | 3,518.40 | 11.4 |
| Brake Power (hp/kW) | 421/314 | 842/628 | 1,000/746 | 1,000/746 | 1,000/746 | 1,000/746 | |||||||
| Input Speed (rpm) | 231 | 461 | 553 | 922 | 1,383 | 2,075 | |||||||
Based on 90% ME and 100% VE- intermittent service only.
