| Categories | Manual Hand Winch |
|---|---|
| Brand Name: | Newart |
| Model Number: | LDC1400C |
| Certification: | CE,ISO & SGS |
| Place of Origin: | Ningbo,China |
| MOQ: | 200pcs |
| Price: | Get Newest Price |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A |
| Supply Ability: | 15000pcs/month |
| Delivery Time: | Around 25-30days after deposit |
| Packaging Details: | Inner color boxes and outside exported cartons |
| Capacity: | 1400 lb |
| Gear Ratio: | 4.5:1 |
| Application: | Boat Trailer / Boat Pulling |
| Surface Treatment: | Color Zinc Or White Zinc Plated |
| Material: | Body / Steel A3; Hook / Steel 45; |
| Color: | Customized |
| Product name: | Boat Hand Winch |
| Brake: | yes |

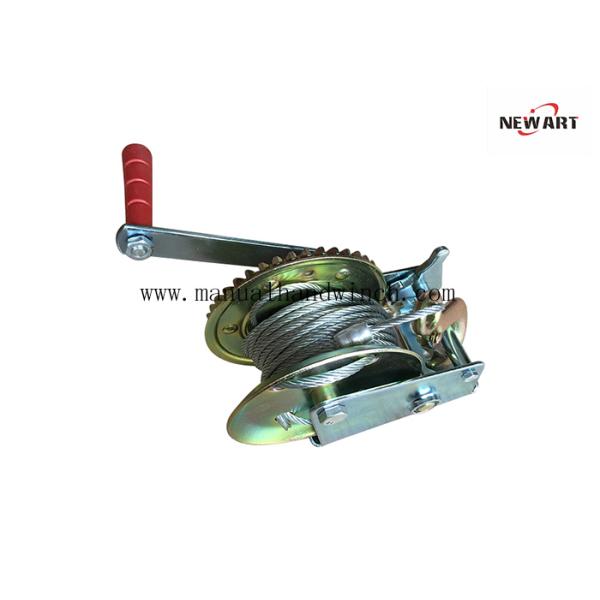

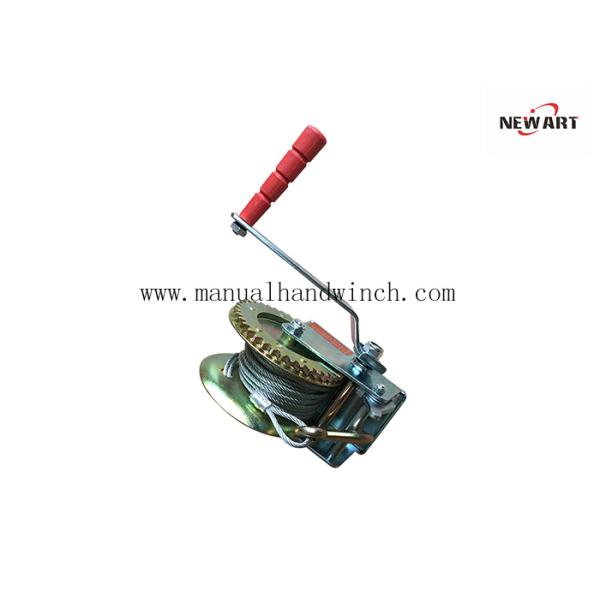

1400 lb Boat Trailer Hand Winch , Small Boat Winch / Cable Winch For Trailer Boat
Description:
The Newart Hand Winch is a high quality multi-purpose winch used for a wide variety of lifting and hoisting applications. The brake ensures the load remains suspended when the crank is released and avoids unchecked descent of the load; there is no freewheeling making the hand winch extremely safe to operate. All the mechanical components are enclosed for protection against dust, dirt and rain contamination. This equipment has a lifting capacity ranging from 600lbs to 3500lbs.
Specifiations:
| Model | Capacity (LBS/KG) | Gear Ratio | Handle Length(mm) | Drum-Hub Dia(mm) | Cable Size (mm×m) | PCS/Carton | Size package (cm) |
| LDC600C | 600(270) | 3.1:1 | 165 | φ16 | φ4.2×8 | 6 | 59×26×16 |
| LDC800C | 800(360) | 3.1:1 | 175 | φ16 | φ4.2×8 | 6 | 59×26×16 |
| LDC1000C | 1000(450) | 4.1:1 | 200 | φ18 | φ4.2×10 | 6 | 66×27×18 |
| LDC1200C | 1200(540) | 4.1:1 | 225 | φ18 | φ4.2×10 | 6 | 66×27×18 |
| LDC1400C | 1400(630) | 4.5:1 | 225 | φ18 | φ4.5×10 | 6 | 67×27×19 |
| LDC1600C | 1600(720) | 5.1:1 | 225 | φ20 | φ4.8×10 | 4 | 46×31×20 |
| LDC1800C | 1800(810) | 4.1:1&9.8:1 | 250 | φ20 | φ4.8×10 | 4 | 52×31×20 |
| LDC2000C | 2000(900) | 4.1:1&9.8:1 | 250 | φ20 | φ5×10 | 4 | 52×31×20 |
| LDC2500C | 2500(1100) | 5.1:1&12.2:1 | 275 | φ42 | φ5×10 | 4 | 54×31×22 |
| LDC3000C | 3000(1363) | 5.1:1&12.2:1 | 275 | φ42 | φ5×10 | 4 | 54×31×22 |
| LDC3500C | 3500(1590) | 5.1:1&12.2:1 | 275 | φ42 | φ5.5×10 | 4 | 54×31×22 |
Our Advantage:
+Quick Delivery: within 30-35 days for one 20ft container.
+Competitive Price
+Good Quality: ISO certificate approval
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
|
