600 m Truck Mounted Portable Water Drilling Machine BZC600CA With HOWO Chassis And 2300r / Min Engine

Categories Pile Drilling Machine
Brand Name: BZ
Model Number: BZC600CA
Certification: ISO
Place of Origin: China
MOQ: 1 piece
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 500 pieces per month
Delivery Time: 30-45 work days
Packaging Details: Nude
Model Number:: BZC600CA
Dimension(L*W*H):: 11510×2480×2800
Depth:: 600m
Max. pull force of the main winch (KN):: 360
Drilling diameter:: 500mm
Speed (r/min):: 2300
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

600 m Truck Mounted Portable Water Drilling Machine BZC600CA With HOWO Chassis And 2300r / Min Engine

BZC600CA 600 m Truck mounted Portable Water Drilling With HOWO Chassis And 2300r/min Engine


Product parameter


Drilling depth (M)600
Borehole diameter (mm)500
Max. pull force of the main winch (KN)360
Max. pull force of the auxiliary hydraulic winch (KN)260
Drill stemMain drill stem (mm)108×108×7500
Second drill stem (mm)89×10×5700
BW850/2A slurry pump / mud pumpTheoretical flow rate (L/min)500 600 700 850
Rated pressure (Mpa)7 6 5 4
Hydraulic pumpModelCB-HP80/40
Pump delivery (ml/r)80/40
Rated speed (r/min)1500
Rated pressure(MPa)20
ChassisDrive type8×4
EngineModel and typeWater cooled, 4 stroke, intercooled supercharged diesel engine Euro III
Rated power (KW)190
Speed (r/min)2300
Overall dimension (L×W×H) (mm)11510×2480×2800
Generating setModelMF
Rated power (kw)15
Rated voltage (v)400
Rated current (A)27
Power factor0.8
Speed (r/min)1500
Rated frequency (Hz)50
Insulation classH
Protection ratingIP21

Product feature


1. Truck mounted drilling rig is a rotary table drilling rig.

2. The truck chassis adopts the special crane chassis of brand SINO TRUCK and the main drive system, the transfer case, gearbox, double winch unit, mud pump, turntable, drilling tower, feed mechanism are set up on the chassis.

3. This rig is a rotary drilling rig with directional circulation. It is equipped with mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

4. The power of truck engine transfer to PTO, and then drive drilling rig.

5.The main drive of rig is mechanical and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are air operated.

6. According to client’s requirement, the YM600 can carry out down-the-hole hammer drilling with Air Compressor.

7. The appearance of rig is pretty. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, and geothermic well and other foundation working, it is popular at home and abroad.


Packing:


Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.

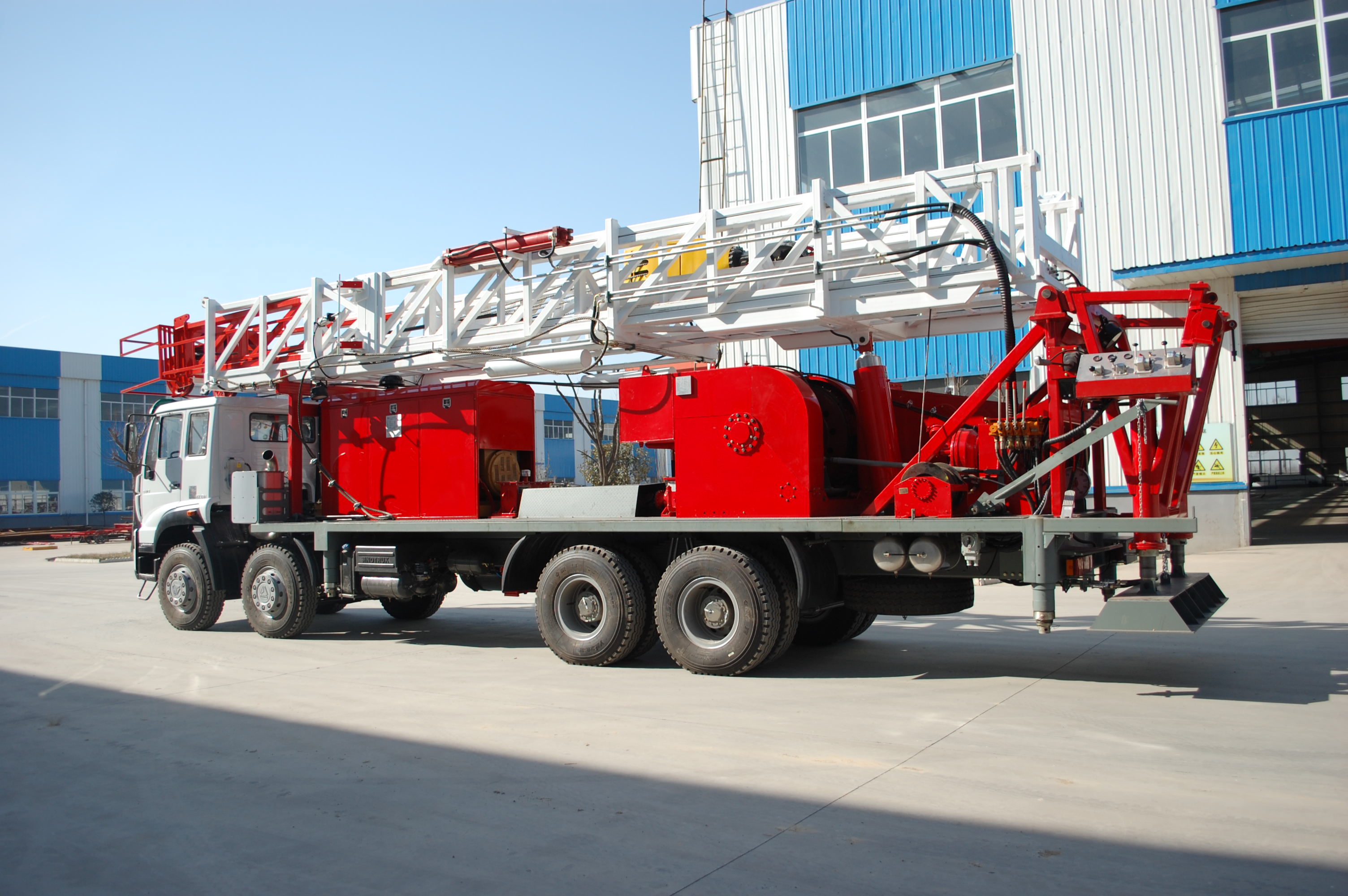

Product picture



Quality 600 m Truck Mounted Portable Water Drilling Machine BZC600CA With HOWO Chassis And 2300r / Min Engine for sale
