190Kg Adsorption Compressed Air Dryer , Industrial Air Dryer For Compressor

Adsorption Dryers Compressor

Benefits

High resistance to abrasion;

High performance and high efficiency;

Long service life adsorbent material;

Easily accessible main components to facilitate maintenance interventions;

Top quality components;

Maximum reliability.

⊙ Introduce

In many applications experiment, the compressed air moisture, the cost is often caused the main reason for compressed air to address the losses caused by moisture, such as downtime or system damage, the upgrade maintenance costs, adverse selection of goods and so, we must use the compressed air purification. While the company’s production system without heat adsorption compressed air drying completely solve the problem caused by the water in distress; provide yon up to a 40℃in the pressure dew point, except for compressed air moisture to meet any field station demand.

⊙ Working Principle of Adsorption Dryer
A large number of air compressor from the inflow of imported diameter, through air control valve: the two entered a drying tower in the bottom, when the air flow to the tower, one of the Humidity will be by suction alumina desiccant stem. So, it will enable the discharge of the air compressor dew point temperature dropped to -40℃,and reached a dehumidification effect. The entire system takes 10 minutes. The entire circulatory system is as follows: When a tower in the desiccant or operation of five minutes, while the other tower is renewable and clean only 4.5 minutes, continued pressure only 30 seconds, so the two towers interactive operation of such duplication. When the machine was operating renewable wind of 12 percent. Superior design, saving maintenance costs.

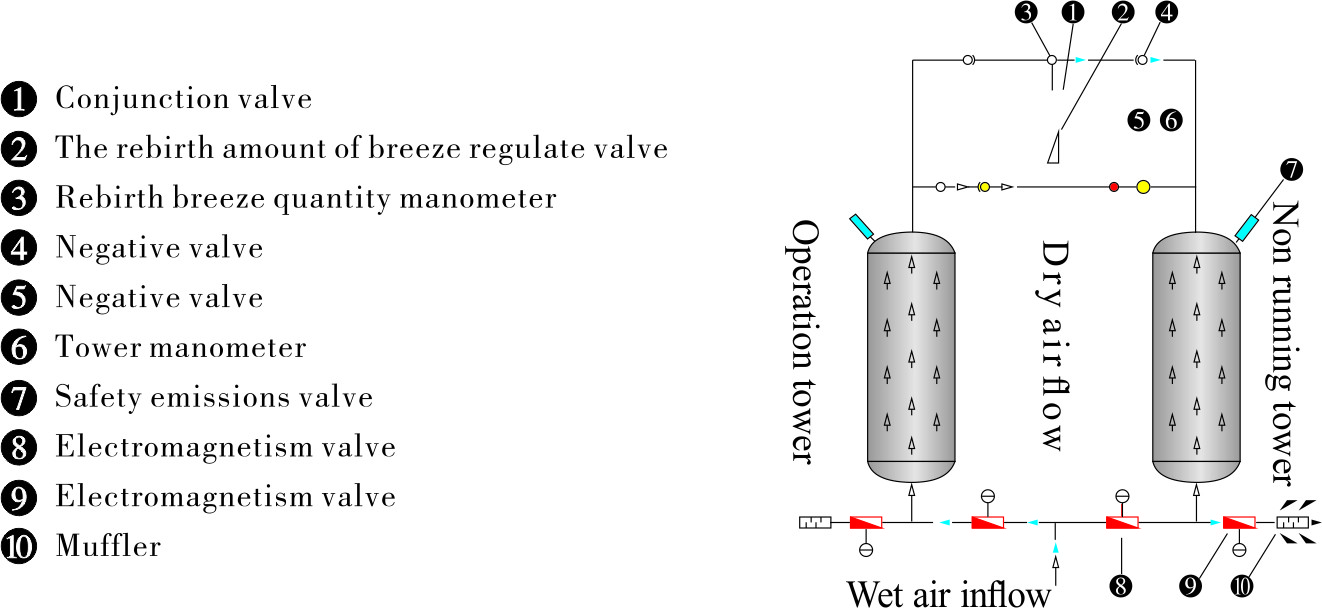

⊙ Adsorption dryer configuration schematics

⊙ High efficiency heat exchanger

➤ Adopting high strength thick copper pipe and oxygen-free welding with quotient silver content electrode; long service life and high heat transfer efficiency.
➤ Adopting anaerobic welding method, the system is free of impurities and keeps the system clean. The whole series of copper tubes are manufactured by mechanical expansion, which are closely combined with fins, with low heat transfer impedance and high heat transfer efficiency.
➤ The coil is cleaned by sound wave and there is no residual oil. It is not easy for eel slices to stick dust, and no carbonization occurs during welding.
➤ Adopt the anaerobic welding method to ensure the cleanliness of the system.

⊙ Adsorption Dryers Compressor Specification

The biggest usage condition:A.Entrance temperature 40℃ B.The air pressure 10Kg/cm³; Rebirth breeze quantity 12%;
Girculation time be 5 minutes; Time of rebirth is 4.5minutes;
Continous press time for 0.5 minutes; The atmospheric pressure of the dewdrop temperature 40℃; The power supply is 10 Ф 220V 50 Hz/60Hz.

⊙ Combined dryer

        Shanghai Schneider-Sunshine Mechanical Group is co-invested by Schneider Investment Group（Canada）,Shanghai Sunshine Co., Ltd and TMC Group (Italy), and mainly engaged in compressor manufacture, sales, Customer Service and its technology R&D. We have full experienced technology, advanced production equipment, complete quality assurance system and good sale-after service. We have a wide range of compressor products, including Screw Air Compressor, Permanent Magnetic Compressor, Process Screw Compressor, Vane Compressor, Oil-free compressor, Air Purification Equipment, Air Drier, Remote Monitoring System Based on IOT etc. and our products’ capacity covers from 1 m³/min to 100 m³/min. Our products have been certificated by “Shanghai Well-Known Brand Products” “Recommend Engineering Construction Products”, also our company is ISO9001:2008 and ISO14001:2004 Certificated enterprise, and one of the state-grade Hi-tech enterprise.

        Since its inception the company of his strong scientific and technological forces, advanced production equipment, has introduced new high-technology products. Products widely used in machinery, light industry, food, petroleum, chemicals, metallurgy, electricity, urban construction, medical research and scientific research for national defense and other industries. Products sold throughout the country and Europe, the Americas and Africa.

       The company's office corner, spacious office area, and various departments work closely together to provide customers with fast and convenient services.

        Company strictly abide by the group policy, adhering to the “people-oriented, credibility first, customer service” as the objective; Uphold the “scientific management, elaborate manufacture” as management concept; Adhered to the “cohesion, do better, boehner, innovation” for the enterprise spirit; Manufacturing enterprise will be “first-class air system” as the goal, the company in technology, quality, management, and equipment in the same industry leading position, the company will, as always, to high-quality products, excellent service sincerely cooperate with friends both at home and abroad, create brilliant.
