3 Axle HOWO 30 Ton Heavy Duty Dump Truck In Africa Euro 2 Manual Transmission Type

Categories Heavy Duty Dump Truck
Brand Name: SINOTRUK
Model Number: ZZ3257N3647A
Certification: ISO/CCC
Place of Origin: China
MOQ: 1 piece
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 500 pieces per month
Delivery Time: 30-45 work days
Packaging Details: Nude
Drive Wheel: 6x4
Horsepower: 251 - 350hp
Transmission Type: Manual
Fuel Type: Diesel
Capacity (Load): 21 - 30t
Emission Standard: Euro 2
Tire: 12.00R20
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

3 Axle HOWO 30 Ton Heavy Duty Dump Truck In Africa Euro 2 Manual Transmission Type

Heavy Duty SINOTRUK 3 Axle HOWO 30 Ton Heavy Dump Truck In Africa Euro 2


Product Description


Sinotruck Dump Truck Product Advantages:

1.Popular dump truck both in domestic country and abroad.

2.10 Years export operation experience

3.Reasonable Price

4.Quick Delivery

5.Low oil consumption and longer lifespan.


Howo Dump truck applications:

1.The engine power 266hp-371hp,suitable for all kinds of roads.

2.Left hand driving and right hand driving for different countries.

3.Heavy loading dump truck,loading ranges from 15 tons to 70 tons.

4.For different weather and different environment,different trucks we can supply.No matter in Russia,Africa,south Amercia,middle east,southest Asia,it performs very well.


Product Parameters


SINOTRUK HOWO 336HP 6x4 dump truck
Truck ModelZZ3257N3847A
Steering typeLHD or RHD
Dimension of box (LxWxH)5800x2300x1500 mm
Thickness of box (mm)Deck:8mm;side:6mm
Lifting Type of carriageMiddle Lifting,T type
Overall dimensions (LxWxH)8607*2560*3386 mm
Approach angle/Departure angle(°)19/23
front/rear suspension (mm)1500/1870
Wheelbase (mm)3825+1350
Max speed(km/h)75
Vehicle Curb weight(kg)12460
Gross mass (kg)25000

Engine


Model

SINOTRUK WD615.69,

4-stroke direct injection diesel engine,

6-cylinder in-line with water cooling,

turbo-charging and intercooling

Power, max(kw/rpm)336 HP
EmissionEuro2
Transmission/Gear boxModelHW19710, 10 speeds forward ,2 reverse

Brake system


Service brakeDual circuit compressed air brake
Parking brakespring energy, compressed air operating on rear wheels
Auxiliary brakeEngine exhaust brake
Steering systemModel8118,hydraulic steering with power assistance
Front axleHF 9,drum type
Driving axleHC16,16ton double reduction
Tire12.00R20,radial tyres,11pcs (one spare)
Clutchφ430 diaphragm spring clutch,hydraulic control air power assisted
Cab

HW76,one bed,with A/C.

VOLVO technology ,comfortable cab.

4-point support floating suspension and shock absorbers,

up/down and front/back adjustable steering wheel,

VDO instrument and control module,safety belt ,

air horn,outer sun visor.

Electric systemBattery2x12V/165Ah
Alternator28V-1500 KW
Starter7.5 Kw/24 V
Colorred,white,yellow. Optional as per customer’s requests.

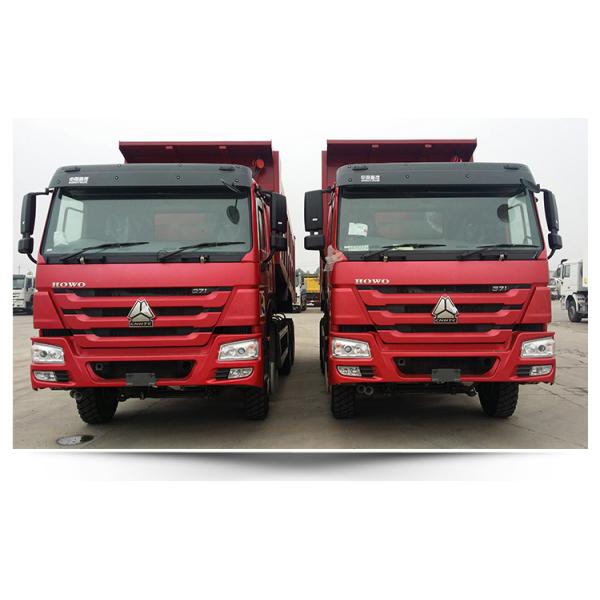

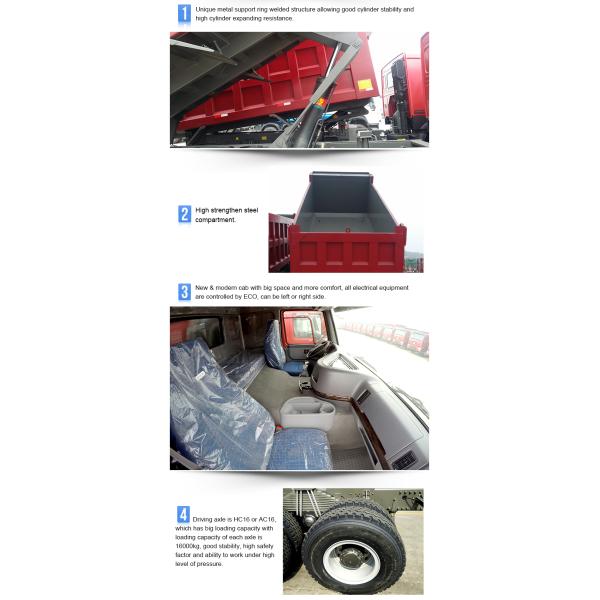

Product Picture


Quality 3 Axle HOWO 30 Ton Heavy Duty Dump Truck In Africa Euro 2 Manual Transmission Type for sale
