| Categories | Thermocouple Bare Wire |
|---|---|
| Brand Name: | Tankii |
| Model Number: | K |
| Certification: | ISO9001 |
| Place of Origin: | China Mainland |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram, |
| Supply Ability: | 1000Ton per year |
| Delivery Time: | 5-7 days after getting the payment |
| Packaging Details: | Standard exoprt package in carton box or wooden box |
| Standard: | ANSI, IEC584 |
| Application: | thermocouple,temperature measurement |
| Tolerance: | IEC class 1 |
| Diameter: | customized |
| Delivery time: | 5~10 days after getting the payment |
| Item: | Tankii N Type Thermocouple Wire 0.2mm With DIN125 Bobbin |
| Conductor type: | Stranded |
| Shape: | wire on bobbin |
| Company Info. |
| Shanghai Tankii Alloy Material Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Tankii N Type Thermocouple Wire 0.2mm With DIN125 Bobbin
Tankii NiCrSi-NiSi thermocouple wire type N
The Type N thermocouple is composed of a nickel-14% chromium-1 1/2% silicon (+) wire versus a nickel 4 1/2% silicon-1/10% magnesium (-) wire. It was developed to be used under the same conditions as a Type K.
Shanghai Tankii Type N should be used in oxidizing or inert atmospheres with a service temperature range between -200°C and 1260°C (-330°F to 2300°F). The addition of silicon and chromium makes this type of thermocouple more resistant to Green-Rot and less drifting when compared to a Type K.

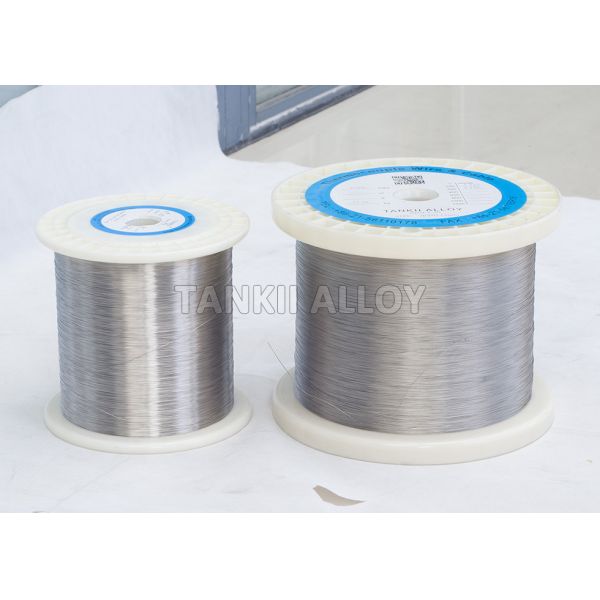

Tankii N Type Thermocouple Wire 0.2mm With DIN125 Bobbin
Shanghai Tankii Thermocouple wire's Characteristics:
The thermocouple wires have excellent performance and are
extensively used in the temperature measurement and control in
different fields, such as metallurgy, chemical industry, petroleum
industry, machinery-electric industry, energy industry, agriculture
and military industry.
Tankii products conform to the standards of IEC584 -1and IEC-2.
Thermocouple type and index | Measurement Range ℃ | |
Type | Index | |
| B | 600~1700 |
| R | 0~1600 |
| S | 0~1600 |
| K | -200~1300 |
| E | -200~900 |
| J | -40~750 |
| T | -200~350 |
| N | -200~1300 |
The allowable grade and Tolerance are obtained at 0℃
Thermocouple | Grade | Temperature range | Allowable Tolerance /℃ |
| Type B | Ⅱ | 600~1700 | ±0.25% t |
| Ⅲ | 600~800 | ±4 | |
| 800~1700 | ±0.5%t | ||
| Type R(S) | Ⅰ | 0~1100 | ±1 |
| 1100~1600 | ±[1+(t－1100) ×0.3％] | ||
| Ⅱ | 0~600 | ±1.5 | |
| 600~1600 | ±0.25% t | ||
| Type K and Type N | Ⅰ | -40~1100 | ±1.5℃ or ±0.4%t |
| Ⅱ | -40~1300 | ±2.5℃ or ±0.75%t | |
| Ⅲ | -200~40 | ±2.5℃ or ±1.5%t | |
| Type E | Ⅰ | -40~1100 | ±1.5℃ or ±0.4%t |
| Ⅱ | -40~1300 | ±2.5℃ or ±0.75%t | |
| Ⅲ | -200~40 | ±2.5℃ or ±1.5%t | |
| Type J | Ⅰ | -40~750 | ±1.5℃ or ±0.4%t |
| Ⅱ | -40~750 | ±2.5℃ or ±0.75%t | |
| Type T | Ⅰ | -40~350 | ±0.5℃ or ±0.4%t |
| Ⅱ | -40~350 | ±1.0℃ or ±0.75%t | |
| Ⅲ | -200~40 | ±1.0℃ or ±1.5%t |
