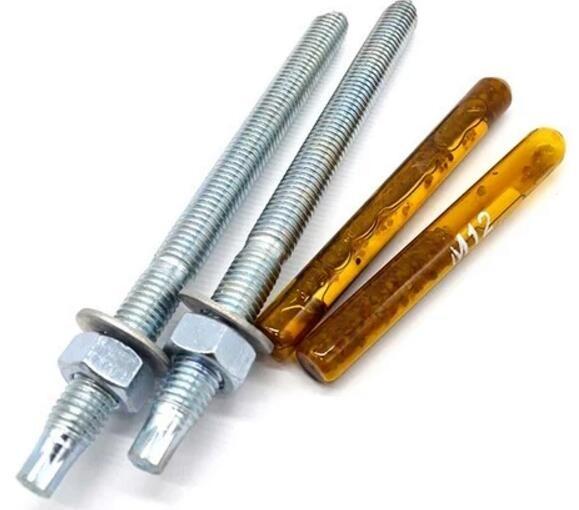

Galvanized Steel M8 - M30 Chemical Anchor Bolts High Strength 4.8 Grade ISO10664

Categories Hex Head Bolt
Brand Name: Summery
Model Number: M30 Chemical Anchor Bolts
Certification: ISO10664
Place of Origin: Shanghai
MOQ: Negotiable
Price: Negotiation
Payment Terms: D/A, L/C, T/T, Western Union
Supply Ability: 10000000
Delivery Time: 7-10 Days
Packaging Details: Poly bags
Product Name: M30 Chemical Anchor Bolts
Material: medium carbon steel
Size: M3x16
Tolerance: 6h
Surface: Zinc plate
Grade: 4.8
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Galvanized Steel M8 - M30 Chemical Anchor Bolts High Strength 4.8 Grade ISO10664

High Strength Galvanized Steel M8 - M30 Chemical Anchor Bolts
Product Description

Expansion Bolts
expansion bolt, using the cone and inflation (or expansion sleeve) of relative motion, prompting expansion expansion, and the expansion of hole wall concrete extrusion, pulling force, and through the shear friction effects from implementation of a component by fitting the anchoring expansion type anchor bolt according to the installation force control method is different, divided into torque control and displacement control The first with torque control, the latter to displacement control
Product Name
Expasion Anchor
Material
Q235
Surface
White-blue/Yellow Zinc
Grade
4.80
Product Advantage
Large load, wide use, convenient installation, replace the anchor wire, cancel embedded parts, shorten the construction period
Application
It is suitable for the installation and reinforcement of all kinds of steel structure, such as keel rail, bracket, bracket, rail, air conditioner, security door and machine equipment
Notice
For concrete strength below C25 or brick wall, use thickened casing
Size
Length
Material
Hole Dia
Load(KN)
Shear Force(KN)
M6
50-100
Q235
10.00
2.50
6.00
M8
60-200
Q235
12.00
5.00
10.00
M10
60-200
Q235
14.00
12.00
15.00
M12
80-300
Q235
16.00
16.00
20.00
M14
100-300
Q235
18.00
24.00
29.00
M16
100-380
Q235
20.00
28.00
38.00
M16 large dia
120-350
Q235
22.00
30.00
36.00
M18
150-380
Q235
22.00
32.00
51.00
M20
150-380
Q235
25.00
50.00
70.00
M22
150-380
Q235
28.00
52.00
78.00
M24
150-380
Q235
28.00
52.00
96.00
