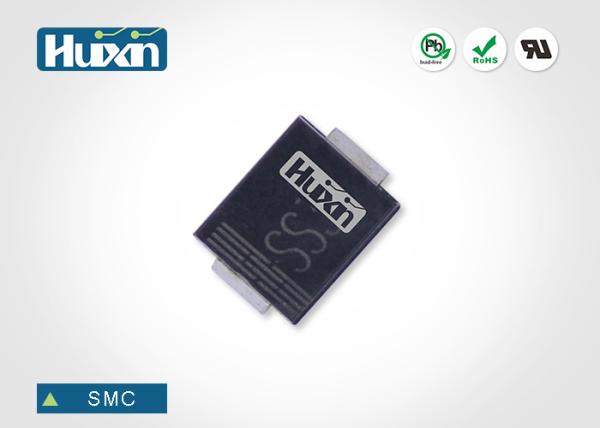

SMC 600V 5.0Amp Super Fast Recovery Surface Mounted Rectifiers

SMC 600V 5.0Amp Super Fast Recovery Surface Mounted Rectifiers

ES5A~ES5J SMC Datasheet.pdf

​

• The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
• Idea for printed circuit board
• Glass passivated Junction chip
• Low reverse leakage
• High forward surge current capability
• High temperature soldering guaranteed

• Case : Molded plastic body
• Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
• Polarity : Polarity symbol marking on body
• Mounting Position : Any
• Weight : 0.008 ounce, 0.225 grams

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Note: 1.Reverse recovery condition IF =0.5A,IR =1.0A,Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
