| Categories | Electrolytic Copper Foil |
|---|---|
| Brand Name: | OEM |
| Place of Origin: | China |
| Supply Ability: | 550T Per Month |
| Packaging Details: | Exporting Wooden Case |
| MOQ: | 50kg |
| Price: | Negotiable |
| Certification: | ISO / SGS / RoHS |
| Delivery Time: | 10 - 15 Days |
| Payment Terms: | L/C, T/T |
| Application: | battery |
| Width: | customized |
| Material: | Brass |
| Grade: | Pure Copper |
| Cu (Min): | >=99.8 |
| Alloy Or Not: | Non-alloy |
| wettability: | ≥32mN/m |
| Color: | Red |
| Shape: | customised |
| Type: | Flat |
| Company Info. |
| Beijing Silk Road Enterprise Management Services Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

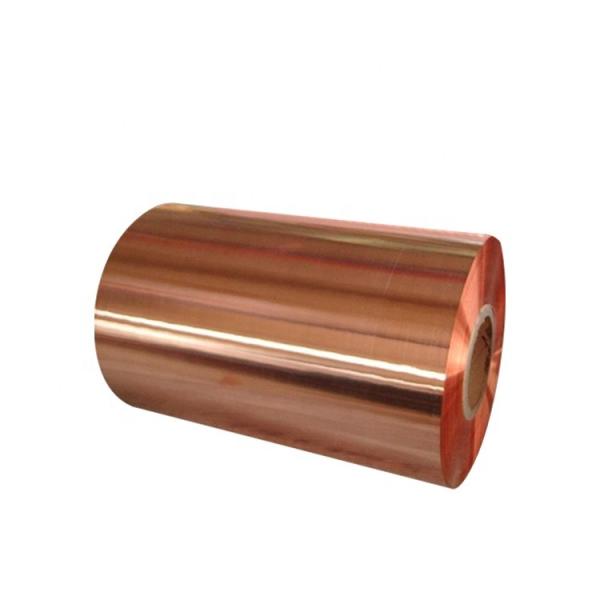

Rolled Electrolytic Copper Foil
Product Description

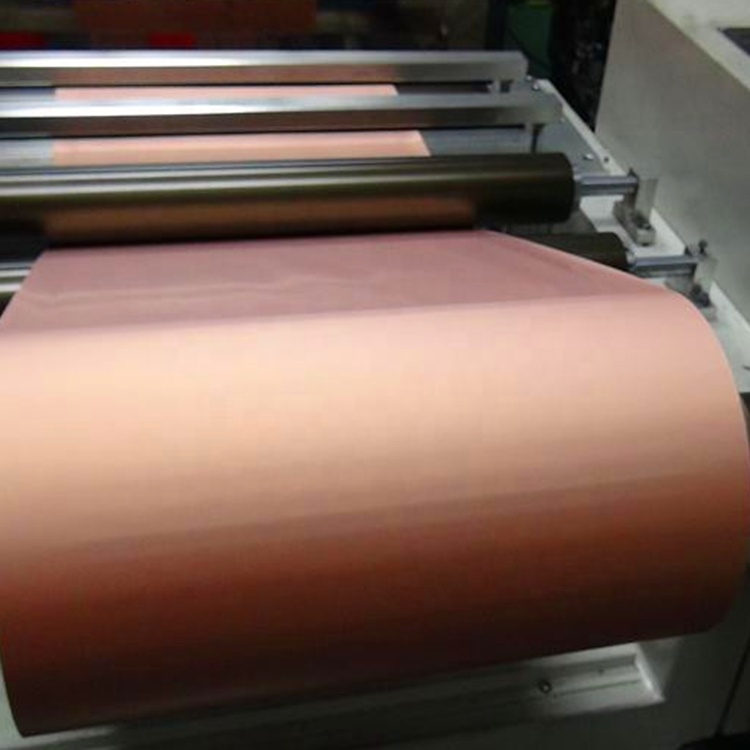

Copper strip is made of electrolytic copper and it goes through the
processes of ingot, hot rolling, cold rolling, heat treatment,
surface cleaning, cutting, finishing, and then packing. The
material has excellent thermal and electrical conduction, flexible
ductility and good corrosion resistance performance. It has been
widely used in electrical, automotive, communications, hardware,
decoration and other industries.
Features:
1. Double -side treated copper foil with high binding force to laminate
2. Excellent etchability.
3. Direct multi-layer laminate
4. the treated foil is pink
The specification of Copper foil
Item | DB44/837-2010 standard | Q/HZY001-2012 standard | |||||||||
Double side polished | Single side polished | Double side polished | Single side polished | ||||||||
Standard Thick | um | 8 | 9 | 12 | 9 | 7 | 8 | 9 | 12 | 8 | 9 |
Basic weight | g/m2 | 70-75 | 85-90 | 100-105 | 85-90 | 62-65 | 70-75 | 85-90 | 100-105 | 70-75 | 85-95 |
Test thickness | um | / | / | / | / | ≤8 | ≤9 | ≤10 | ≤13 | ≤10 | ≤11 |
Cu | % | ≥99.8 | ≥99.8 | ≥99.8 | ≥99.8 | ≥99.8 | ≥99.8 | ≥99.8 | ≥99.8 | ≥99.8 | ≥99.8 |
TS | Room | ≥294 | ≥294 | ≥294 | ≥245 | ≥294 | ≥294 | ≥294 | ≥294 | ≥245 | ≥245 |
180℃ | ≥196 | ≥196 | ≥196 | ≥147 | ≥196 | ≥196 | ≥196 | ≥196 | ≥147 | ≥147 | |
Ductility | Room | ≥5 | ≥5 | ≥5 | ≥2.5 | ≥5 | ≥5 | ≥5 | ≥5 | ≥2.5 | ≥2.5 |
180℃ | ≥3 | ≥3 | ≥3 | ≥2 | ≥3 | ≥3 | ≥3 | ≥3 | ≥2 | ≥2 | |
surface roughness | Polished side | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 |
Coarse side | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.5 | |
wettability | mN/m | ≥32 | ≥32 | ≥32 | ≥32 | ≥32 | ≥32 | ≥32 | ≥32 | ≥32 | ≥32 |
high temperature oxidation resistance | 160℃/10 min copper foil surface should be no oxidation discoloration | 180℃/10 min copper foil surface should be no oxidation discoloration | |||||||||
|
