M16 connector AISG Cable Assembly Male Female Straight Circular Waterproof for AISG Electrical Connector

Categories M12 Circular Connector
Brand Name: RITIAN
Model Number: M16 solder connector
Certification: CE RoHS
Place of Origin: China
MOQ: 100
Price: Negotiable
Payment Terms: T/T
Supply Ability: 2000 each week
Delivery Time: 5 to 8 working days
Packaging Details: Standard Exported Cartons and Pallets
Type: circular connector
Gender: Male/ Female
Coupling method: threaded connection
orientation: straight / right angle
Contact: Contacts: 2 / 3 / 4 / 5 / 6 / 7 / 8 / 12 / 14 / 24 Pin
mounting type: PCB Mount / Panel Mount / Cable
rated current: 7A for 2/3 pin, 6A for 4/5 pin, 3A for 12/14/19 pin, 1A for 24 pin
Application: Petroleum / Chemical Industry / Iron and Steel / Electricity
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

M16 connector AISG Cable Assembly Male Female Straight Circular Waterproof for AISG Electrical Connector

M16 connector AISG Cable Assembly Male Female Straight Circular Waterproof for AISG Electrical Connector

The Antenna Interface Standards Group (AISG) creates and maintains standards for the control and monitoring interface between a base station and a variety of tower-top equipment. These include antennas with remote electrical tilt (RET), tower mounted amplifiers and a variety of sensors that are used to monitor the operation of tower-top equipment. These are referred to as subunits. A complete list of those currently supported can be found here.

Product Fetures

1.Extremely strong resistant to acid,alkali,chemical cleaning agent /reagent properties;

2.Resistant to welding spark,continually twist ;

3.Resistant to oil,coolant ,lubricant and emulsion;

4.Pin configurations:2,3,4,5,7,8,12,14,19,24 properties ;

5.Shield and un-shield Version Available with metal or plastic housing;

6.Meet IP67/IP68 waterproof requirements;

7.Temperature Range:-25℃ ~ +85℃;

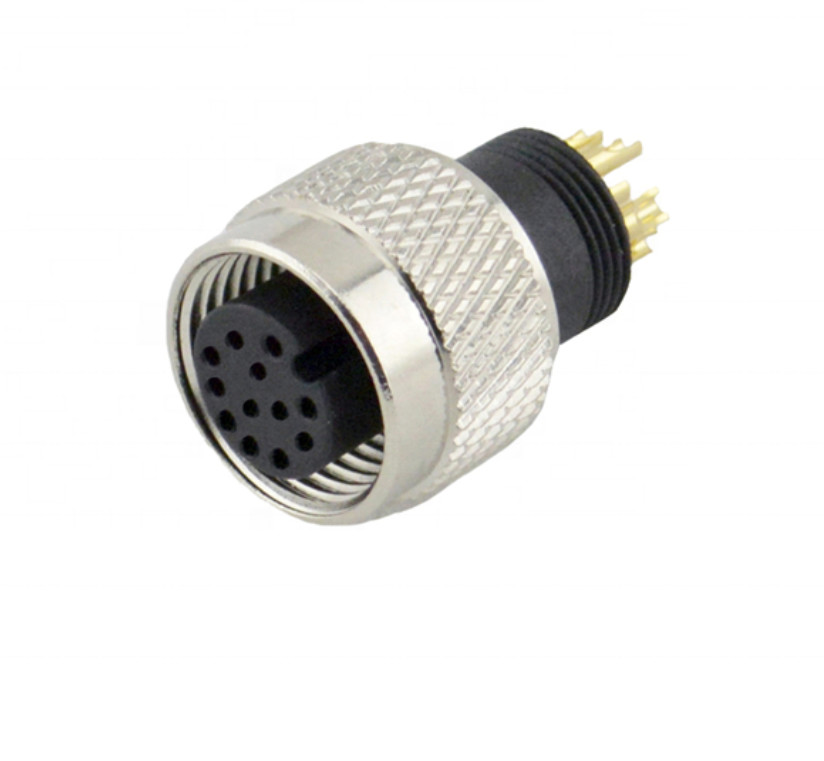

M16 Connector
Number of Positions2 / 3 / 4 / 5 / 6 / 7 / 8 / 12 / 14 / 24 Pin
GenderMale / Female
OrientationStraight / Right Angle
Mounting TypePCB Mount / Panel Mount / Cable
Shell MaterialMetal / Plastic
Termination StyleScrew-joint / Solder Type
ShieldShield / Unshielded
