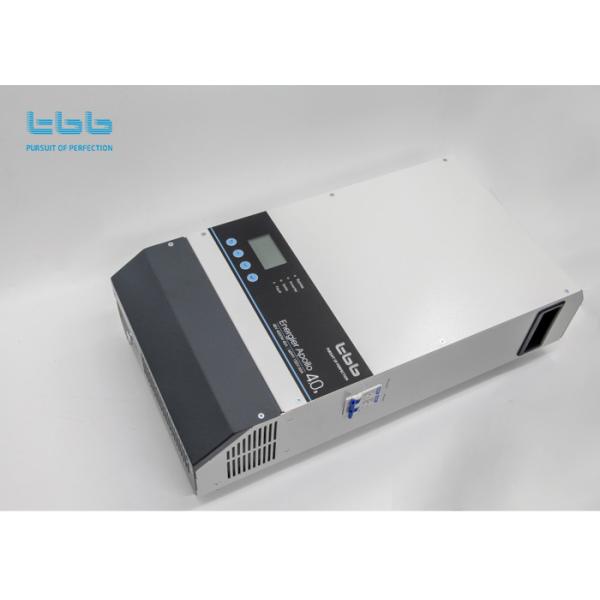

Smart battery charger and power Inverter in one MPPT controller in
solar system
Smart battery Charger function
There is a MPPT solar charge controller and an AC charger built in
the Energier Apollo, and the
battery can be charged via AC grid and solar photovoltaic (PV)
array at the same time.
The power from solar photovoltaic will be the higher priority
charging source to the battery first,
when qualified AC input source and solar photovoltaic are presented
at the same time.
The total charging current of battery bank will be limited by
setting values of the battery capacity
and the max charging rate.
AC charger function can be enabled or disabled by LCD panel or
Rapconfig
High performance pure sine wave
Energier Apollo is a sine wave inverter which generates a near
perfect sinusoidal AC wave power
output that is very similar or even better to what you can get from
your utility grid. Pure sine wave
can guarantee the correct function of sensitive equipment
(computer, laser printer, TV etc.) or most
demanding inductive load. Also, your home appliances such as
fridge, microwave and power tools
will work smoother, cooler and more efficient.
Features.
-All in one unit integrating multiple functions.
-Can be applied for solar hybrid and power backup system.
-High efficiency up to 93%.
-High performance designed for all kinds of home appliances.
-TBB premium II multi stage charging algorithm with built in
-automatic temperature & voltage compensation charging.
-Equalization charging program was available for flooded and OPZS
battery.
-PWM solar charge controller with built in MC4 terminal.
-Lithium Battery charging was available.
-Designed for tropical region.
-Designed to work with weak grid.
-Extremely low status consumption power.
-ALL-IN-ONE for Solar Hybrid-system
-Compatible with majority of cheap generators in the market.
-Built in AEA
The following figure is charging characteristics of a GEL battery
for reference
Specfication
| Model No. | CH1350L | CH2040M | CH2.0M | CH2.0S | CH3.0S | CH4.0S |
| LCD display | N/A | Yes |
| AC IN MCB | N/A | D40 |
| AC OUT MCB | N/A | C16 | C16 | C25 | C32 |
| Inverter |
| Nominal battery Voltage(VDC) | 12 | 24 | 24 | 48 |
| Nominal input voltage Range(VDC) | 9-17 | 18-34 | 18-34 | 40-62.8 |
| Power 30mins @25℃(W) | 1300 | 1700 | 2000 | 2000 | 3000 | 4000 |
| Cont. power @25℃(W) | 1100 | 1300 | 1800 | 1800 | 2700 | 3600 |
| Cont. power @40℃(W) | 1000 | 1200 | 1600 | 1600 | 2400 | 3200 |
| Output voltage | 230Vac±2%,220/230/240Vac Settable, 50HZ±0.05%, 50/60Hz Settable |
| Total harmonic distortion | <3% |
| Efficiency (MAX) | 90.5% | 93% | 93% | 96% | 96% | 96% |
| Zero load power(W) | 10 | 13 | 14 | 14 | 17 | 20 |
| AC input range (VAC) | UPS mode | 184-264 |
| Weak grid &GEN | 168-276 |
| Typical transfer time | <20ms(typical 10ms) | <4ms |
| Transfer switch (A) | 16 | 31 | 31 | 31 | 31 |
| AC Charger& Solar Charger |
| Solar charger type | PWM | MPPT |
| Nominal Output Voltage(VDC) | 12 | 24 | 24 | 48 | 48 | 48 |
| Max PV open circuit voltage (Voc) (VDC) | 25 | 50 | 100 | 150 | 150 | 150 |
| Recommended PV(W) | | | 2000 | 4000 | 4000 | 4000 |
| MPPT range (VDC) | 16-19 | 32-37 | 32-100 | 64-140(150VDC absolute maximum coldest conditions,140VDC start-up
and operating maximum) |
| Max PV short circuit current(A) | N/A | N/A | 40 | 40 | 40 | 40 |
| Rated charging current –adjustment (A) | AC charger | 50 | 40 | 40 | 20 | 30 | 40 |
| Solar charger | 50 | 50 | 60 | 60 | 60 | 60 |
| Max charging current (A) | 100 | 90 | 100 | 80 | 90 | 100 |
| MPPT efficiency | / | / | 99.90% |
| Solar Charger Max efficiency | 98% | 98% | 98.00% |
| Battery types | AGM/GEL/LFP/Flooded | AGM / GEL/ LFP / Flooded /Lead-carbon/Traction / Semi-traction |
| Temperature compensation | Yes, -4mV / ℃/cell, settable |
| Other Data |
| Protection | a)shortcut, b)over load, c)over temperature, d)input voltage out of
range, e)battery low voltage disconnect, f)battery high voltage
protection, g)fan lock |
| AC out1 current (A) | N/A | N/A | 16 | 16 | 25 | 32 |
| AC out2 current (A) | N/A | N/A | 40 | 40 | 40 | 40 |
| Auxiliary output | x1, programmable | X2, programmable |
| Remote on-off | Yes | Yes | N/A | N/A | N/A | N/A |
| CAN Bus communication port | N/A | N/A | Yes | Yes | Yes | Yes |
| General purpose com. Port | RS485 | CAN, RS485 |
| Operating ambient temperature range | -20℃~60℃ |
| Storage temperature range | -40℃~85℃ |
| Relative humidity in operation | 95% without condensation |
| Mechanical Data |
| Dimension (mm) (max) | 470*233*95 | 515*275*145 |
| Net Weight (kg) | 11.6 | 12 | 20 | 20 | 22 | 25 |
| Cooling | Forced fan |
| Protection | IP20 | IP21 |
| Standard |
| Safety | EN62109-1, EN62109-2 | EN 62477-1 EN 62109-1,EN 62109-2 |
| EMC | EN61000-3-2, EN61000-3-3,EN61000-6-1, EN61000-6-3 | EN61000-6-4,EN61000-6-2,EN61000-3-3,EN61000-3-2 |
