| Categories | Mining Rock Drilling Machine |
|---|---|
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO,CE |
| Supply Ability: | Based on the detailed quotation |
| Packaging Details: | Wooden cases standard export package |
| MOQ: | 1 set |
| Price: | Negotiation |
| Local Service Location: | None |
| Showroom Location: | None |
| Condition: | New |
| Type: | Rotary Drilling Rig |
| Applicable Industries: | Farms, Construction works , Energy & Mining |
| Power Type: | Diesel |
| Usage: | Ore |
| Voltage: | 380V |
| Dimension(L*W*H): | 2.75X0.95X1.60m |
| Weight: | 760kg(No include power) |
| Marketing Type: | New Product 2020 |
| Video outgoing-inspection: | Provided |
| Core Components: | Motor, Pump, Gear, Bearing, Engine, Gearbox |
| Key Selling Points: | can drill soil, sand, rock, etc. |
| Name: | mining core drilling machine |
| Application: | Core and Water Well Drilling |
| Drilling depth: | max. 180m |
| Engine: | Diesel or electric |
| Drilling diameter: | 75-400mm |
| Drilling bit: | Alloy and diamond bit |
| Spindle Speed: | 71.142.310.620r/min |
| Mud pump: | Horizontal single urn twin-action |
| Shipping: | Sea, air or express |
| Delivery Time: | 10-20 days working days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Company Info. |
| Beijing Silk Road Enterprise Management Services Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Hydraulic Spindle 180m Rotary Mining Rock Drilling Machine
Product Description

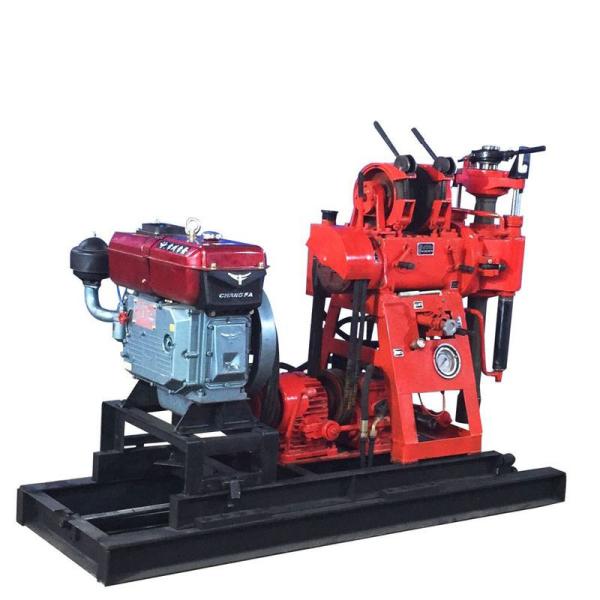

XY-180 180m hydraulic spindle rotary mining core drilling machine for sale
XY-180 mining core drilling machine is a small drilling rig for 180m deep, widely applied for Geology general check exploration, Earth physics exploration, Road and hihg layer buiding ground survey, Water Bore Well, blast opening et cetera, drilling engineering, etc.
Main Specification
Unity machine parameter | |
Drilling depth | 180m |
Maximum open hole caliber | 400mm |
End hole caliber | 75mm |
Drill rod caliber | 50mm |
Drilling angle | 90~75 |
Drill weight(No include power | 760kg |
Unity machine dimensions | 2.75X0.95X1.60m |
Spindle | |
Spindle speed | 71.142.310.620r/min |
Spindle stroke | 450mm |
Hoist | |
Max.xingle line hoisting capacity | 2008Kb |
Tightrope caliber | 13mm |
Tightrope cubic measure | 35m |
Reel lifting speed | 17, 35, 75, 160rm/s |
Hug floodgate belt width | 70mm |
Power | |
Diesel engine | 22HP |
Speedlimit | 2200r/min |
Electric motor | 15kw |
Speedlimit | 1460r/min |
|
