Home > Air Conditioners >

Container Type 1000 KVA Cummins Diesel Generator

Categories Cummins Generator Set
Brand Name: Hosem Power
Model Number: A-C1000H
Certification: CE/ISO9001
Place of Origin: CHINA
MOQ: 1 SET
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 500 unit per month
Delivery Time: 30 days
Packaging Details: ply-wood or plastic film
Product Name: Diesel Generator Set
Frequency: 60Hz
Voltage: 230V
Standby Output: 1000kVA
Prime Output: 910kVA
Engine Brand: Cummins
Engine Model: KTA38-G2
Alternator Brand: Stamford
Alternator Model: HCI 634 G
Controller: Deepsea/ ComAp/ Smartgen
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

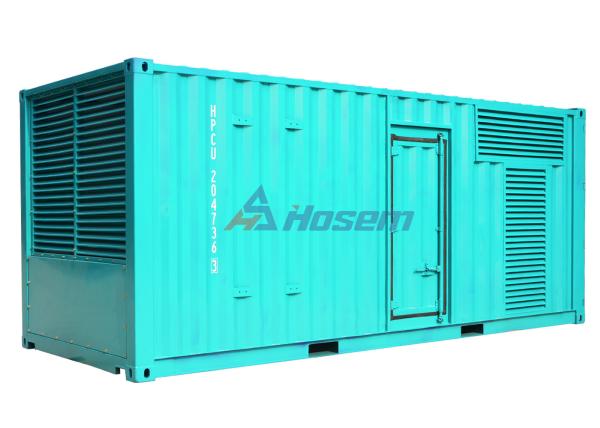

Container Type 1000 KVA Cummins Diesel Generator

Cummins Diesel Generator 1000kVA, KTA38-G2 Generator, Cummins backup generator, Container Type Generator


Specification:

ModelA-C1000H
Standby PowerkVA1000
kW800
Prime PowerkVA910
kW728
FrequencyHz60
Output VoltageV240
Oil ConsumptionL/H0.58
Dimension For Open-typemm4243 X 1820 X 2323
Weight For Open-typekg6058 X 2438 X 2591
Dimension For Soundproofmm80
Weight For Soundprofkg3923
Engine ModelKTA38-G2
No.of Cylinder12 Cylinder V Type
Boremm159
Strokemm159
DisplacementL37.8
Cooling Fan Air Flowm3/min1825
Compress Air Flowm3/min55.2
Exhaust Gas Flowm3/min158.6
Exhaust Gas Temperature552
Lubrication Oil CapacityL135
Cooling Water CapacityL194
Starting VoltageV24
Engine Max.Output PowerkW895
Alternator ModelHCI 634 G
Alternator BrandStamford
Rate OutputkVA925
FrequencyHz60
AltitudeM≤1000
InsulationClass H
Protection GradeIP23
Alternator for choiceWe also have Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator for your choice.
Control Panel ModelAF500
ControllerDeepsea Brand Model DSE7320
Function of control panelAutomatic genset start/stop
Automatic battery charger
Emergency stop
AMF (Automatic Mains Fault)
Remote control
Micro-processor based design
LED alarm indication and Sound alarm

Testing Items:
HOSEM provides a full line of brand new and high quality products.
Each and every unit is strictly factory tested before shipment.
1) Parts faults testing
2) Fuel tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insulation testing
6) Noise testing
7) Loading Testing: 25%, 50%, 75%, 100%, 110% load to check verify that all control systems, alarm and shut-down protection.


Cummins Diesel Generator 1000kVA , KTA38-G2 Generator, Cummins backup generator, Container Type Generator


Cummins Container Type Diesel Generator Feature:
1. The complete generator set is mounted as whole on a heavy-duty fabricated, steel base frame;
2. The generating set can be lifted or carefully pushed/pulled by the base frame;
3. Start system with maintenance-free battery;
4. Anti-vibration pads are fixed between the engine/alternator feet and base frame;
5. Open type, silent type, super silent type or mobile type generator;
6. The world-famous --first-class alternator, up to the GB755, BS5000, VDE0530, IEC34_1, AS2359 standard, brushless and self-exitation, it can supply excitation in many cases
7.Diesel generator including an absorber system, and protect the generator during its working time.
8. All generator surface after acidification and suitable wet condition working.
9.Standard control panel design basic the operation, and easy show all meters you care during generator working time.
10. Structure: adopt the high strength steel makes the underframe, and easily moved and stable long life.
11. We offer options generators as the below shows:
A. The frequency we offer 50HZ and 60HZ.
B.Voltage: we offer 110/220v, 240v,380v/440v,254v/440 etc,or depend on your request.
C.Phase: we offer three-phase or single-phase generator
D.Options parts like electric speed adjustment, LCD show panel, protection system, Automatic transfer system. Silent canopy, Weatherproof canopy, Fuel tank.


FAQ

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
Q: What is your lead time?
A: About 20-30 days after receiving advance deposit or original L/C.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
