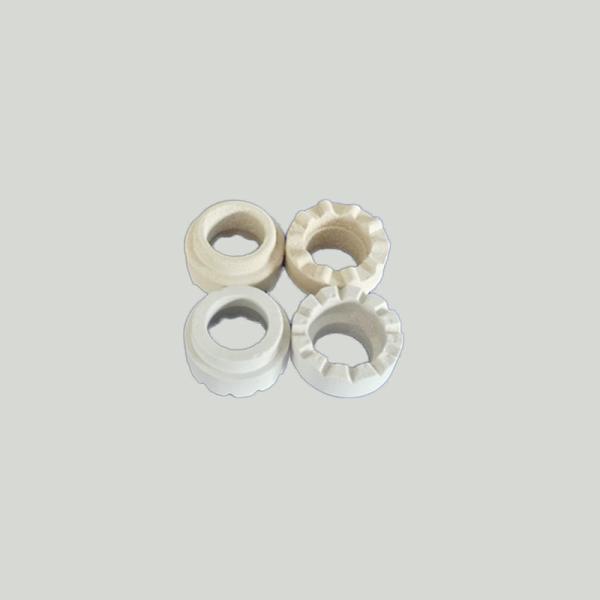

Welded Ceramic Ring UF13 Ceramic Protection Accessories For Boiler Equipment
Welded ceramic ring is a ring-shaped ceramic molten pool used to protect the welding nail and the molten metal of the base material from discharge after melting.
working principle:
Utilize the high temperature resistance of ceramics to protect the
welding melt from leaking, make it cool and form, and improve the
welding quality. Welding shear nails (also known as: welding nails,
studs, studs) accessories, used in conjunction with shear nails,
usually using professional stud welding machine welding.
Effect:
| NO | P/N | D1+0.5 | D2(±1) | D3(±1) | H3(≈) | D2(≈) |
| PF6 | 90/00001 | 5.6 | 9.5 | 11.5 | 6.5 | 3.3 |
| PF8 | 90/00002 | 7.4 | 11.5 | 15 | 6.5 | 4.5 |
| PF10 | 90/00003 | 9.2 | 15 | 17.8 | 6.5 | 4.5 |
| PF12 | 90/00004 | 11.1 | 16.5 | 20 | 9 | 5.5 |
| PF16 | 90/00005 | 15.0 | 20 | 26 | 11 | 7 |
| PF20 | 90/00006 | 18.6 | 30.7 | 33.8 | 10 | 6 |
| PF24 | 90/00007 | 22.4 | 30.7 | 38.5 | 18.5 | 14 |
| NO | P/N | D1+0.5 | D2(±1) | D3(±1) | H3(≈) | D2(≈) |
| UF6 | 90/00008 | 6.2 | 9.5 | 11.5 | 8.7 | 4.7 |
| UF8 | 90/00009 | 8.2 | 11 | 15 | 8.7 | 4.7 |
| UF10 | 90/00010 | 10.2 | 15 | 17.8 | 10 | 5.2 |
| UF12 | 90/00011 | 12.2 | 16.5 | 20 | 10.7 | 6 |
| UF13 | 90/00012 | 13.1 | 20 | 22.2(26) | 11 | 6.5 |
| UF16 | 90/00013 | 16.3 | 26 | 30 | 13 | 8.5 |
| UF19 | 90/00014 | 19.4 | 26 | 30.8 | 16.7 | 12 |
| UF22 | 90/00015 | 22.8 | 30.7 | 39 | 16.6 | 14 |
| UF25 | 90/00016 | 26.0 | 35.6 | 41 | 21 | 16.5 |
| NO | P/N | D1+0.5 | D2(±1) | D3(±1) | H3(≈) | D2(≈) |
| PF6 | 90/00017 | 6.2 | 9.5 | 12.2 | 10 | 6 |
| PF8 | 90/00018 | 8.2 | 12 | 15.3 | 9 | 5.5 |
| PF10 | 90/00019 | 10.2 | 15 | 18.5 | 11.5 | 7.5 |
| PF12 | 90/00020 | 12.2 | 17 | 20 | 13 | 8 |
| PF16 | 90/00021 | 16.3(14) | 20.5(26.2) | 26.5(32.5) | 15.3(8.8) | 10.8(4.5) |
| PF20 | 90/00022 | 17.5(20.3) | 26.2(28.5) | 32 | 9(22) | 5(11.5) |
| PF24 | 90/00023 | 21(24.3) | 30.4 | 36 | 12(25) | 6(12) |
The product is mixed and granulated with a variety of high temperature resistant ceramic raw materials, which are formed by compression and finally sintered by a high temperature tunnel kiln. It has the characteristics of good stability, high refractoriness, not easy to deform, and large mechanical strength.
It is widely used in manufacturing industries such as bridges, shipbuilding, boilers, pressure vessels, steel structures, and auto parts.
Carton packaging or according to customer needs
The company specializes in welding ceramic rings and supports customization.
1. Are you a businessman or a manufacturer?
We are a company, we have our own factory
2. How long is your delivery time?
Negotiable
3. Can the product be customized?
Can be customized
4. What is the product packaging?
Carton or according to customer requirements
|
