Low Polarization 1x2 5/95 Fused Fiber Coupler

Categories Fiber Optical Splitter
Brand Name: DAWNERGY
Model Number: LFC-102-P-13/15-5-1-09-10-N-09-10-N
Certification: CE ROHS
Place of Origin: CHINA
MOQ: 100
Price: 2.6USD
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10K per day
Delivery Time: 7days
Packaging Details: Blastic Package
Oprating Wavelength: 1310 or 1550 or 1310 and 1550
Directivity(db): no less than 50
Operating Temperature(℃): -40~+85
Name: Low Polarization 1x2 5/95 Fused Fiber Coupler
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

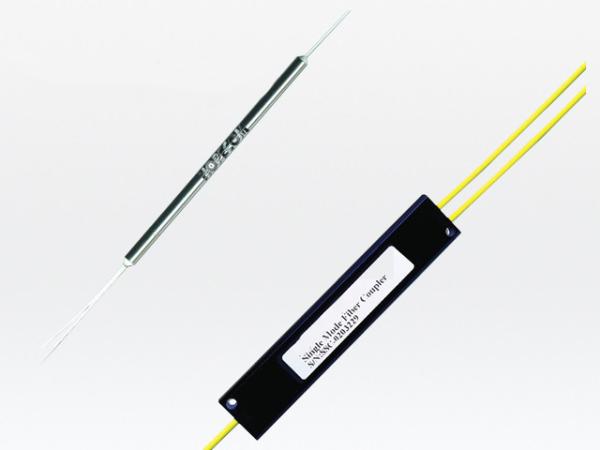

Low Polarization 1x2 5/95 Fused Fiber Coupler

1X2 FBT COUPLER 1310 1550 FUSED FIBER SPLITTER 5/95 LOW INSERTION LOSS LOW POLARIZATION


We mainly operate passive products in the field of optical cables and optical communication wiring, including: optical cables, fiber jumpers, pigtails, splitters, fiber distribution boxes, optical cable splice boxes, optical cross boxes, ODF, communication outdoor Cabinets, data center cabinets, etc. Domestically, we have a large market share in the centralized procurement of China Telecom, China Mobile, China Unicom and China Tower. At the same time, we are also a qualified supplier for major internationally renowned equipment manufacturers and fiber optic cable manufacturers. Our products are also widely used in special networks such as radio broadcast, television, electric power and military.


Low Insertion Loss

Low Polarization Sensitivity

Excellent Environmental Reliablity


Type1x2(2x2)-S1x2(2x2)-D1x2(2x2)T
Operating Wavelength1310 or 15501310 and 15501310,1490 and 1550
Bandwidth(nm)±15±401310/1550±40,1490±20
Grade Coupling RatioMax. Insertion Loss (dB)
PSPSPS
50/503.43.53.53.63.63.7
40/604.50/2.704.80/2.904.70/2.704.90/2.904.80/2.905.00/3.00
30/705.80/2.006.10/2.106.00/1.906.30/2.106.20/2.006.40/2.20
20/807.70/1.258.00/1.357.90/1.408.40/1.508.20/1.508.50/1.60
10/9011.20/0.7511.30/0.8511.30/0.8012.00/0.8511.50/0.8012.50/0.85
5/9514.50/0.4514.60/0.5514.60/0.5514.90/0.6014.70/0.6015.20/0.65
3/9716.70/0.3517.00/0.4516.70/0.3517.25/0.4517.20/0.4017.80/0.45
2/9818.50/0.3019.00/0.3518.65/0.3019.20/0.4019.00/0.3519.50/0.40
1/9921.50/0.3022.20/0.3521.80/0.3022.50/0.3522.00/0.3522.80/0.40
PDL (dB)≤0.10≤0.15≤0.15≤0.20≤0.15≤0.20
Directivity(dB)≥50
Operation Temperature(℃)-40 to +85
Store Temperature(℃)-40 to +85
Note: Connector loss is excluded in the above specification

Configuration1X2(2X2)
Dimensions(ΦXL)(mm)250μm bare fiberΦ3.0X50
900μm loose tubeΦ3.0X54
900μm/2mm/3mm loose tube90X20X10

CodePortGradeWavelengthCoupling RatioPackageInput Fiber

Input

Length

Input ConnectorOutput FiberOutput LengthOutput Connector
LFC

102=1x2

202=2x2

P=P grade

S=S grade

13= 1310nm

15= 1550nm

13/15= 1310/1550nm

13/14/15= 1310/1490/1550nm


50=50/50

40=40/60

30=30/70

20=20/80

10=10/90

5=5/95

3=3/97

2=2/98

1=1/99

1=Φ3.0X50mm

2=Φ3.0X54mm

3=90X20X10mm

SF=250um single fiber

09=0.9mm pigtail

20=2.0mm pigtail

30=3.0mm pigtail

05=0.5M

10=1.0M

15=1.5M

20=2.0M


N=None

SCA=SC/APC

SCU=SC/UPC

LCA=LC/APC

LCU=LC/UPC

FCA=FC/APC

FCU=FC/UPC

X=others

SF=250um single fiber

09=0.9mm pigtail

20=2.0mm pigtail

30=3.0mm pigtail

05=0.5M

10=1.0M

15=1.5M

20=2.0M


N=None

SCA=SC/APC

SCU=SC/UPC

LCA=LC/APC

LCU=LC/UPC

FCA=FC/APC

FCU=FC/UPC

X=others
