Travel Carrier No.2 Hyundai Excavator Final Drive Parts 3521120-0033 R290LC-3

Categories Excavator Final Drive
Brand Name: OEM
Model Number: R290LC-3 R290LC-7
Place of Origin: China
MOQ: 1 PCS
Price: Negotiable
Payment Terms: D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability: 100-2000
Delivery Time: 3-7 working days
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Product name: CARRIER ASSY NO.2
Excavator model: R290-3 R290-7
parts number: 3521120-0033
Warranty: 6 months
Category: Excavator Final Drive
Packing: Standard Wooden box
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Travel Carrier No.2 Hyundai Excavator Final Drive Parts 3521120-0033 R290LC-3

  • 3521120-0033 R290LC-3 Travel Carrier No.2 Applied Hyundai Excavator Final Drive Parts

  • Spec Sheet

Excavator spare parts nameCarrier Assembly No.2
Equipment ModelR290LC-3 R290LC-7
Parts Categoryexcavator travel reducer
Spare parts ConditionBrand new
MOQ of order(PCS, SET)1
Parts AvailabilityIn stock
Delivery Lead time1-3 days


  • Application

R250LC3, R290LC3, R290LC3H, R290LC3LL, R290LC7

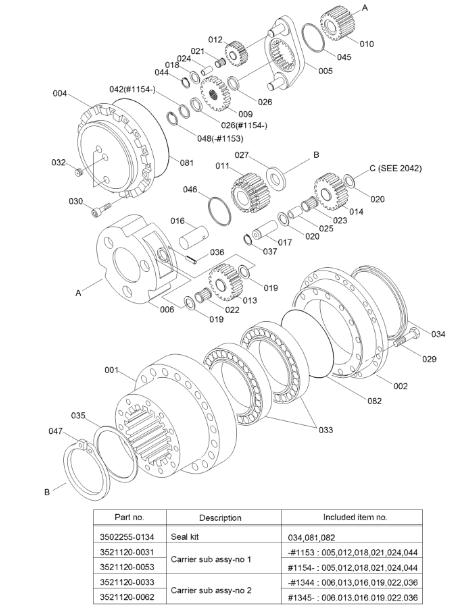

  • Parts Diagram
Pos.Part NoQtyParts nameComments
N*-2.3550D-01A[1]T/REDUCTION GEAR
N*-2.3550D-01B[1]T/REDUCTION GEAR
N*-2.3550D-01C[1]T/REDUCTION GEAR
13523170-0045[1]GEAR-RING
23523310-0160[1]HOUSING
43523150-0334[1]COVER-SIDE
43523150-0488[1]COVER-SIDE
53524120-0052[1]CARRIER-NO1
63524120-0057[1]CARRIER-NO2
63524120-0085[1]CARRIER-NO2
93503190-0109[1]GEAR-SUN,NO1
103503190-0110[1]GEAR-SUN,NO2
113503190-0143[1]GEAR-SUN,NO3
123503190-0117[2]GEAR-PLANE,NO1
133503190-0113[3]GEAR-PLANE,NO2
143503190-0141[4]GEAR-PLANE,NO3
163503540-0126[3]PIN-NO2
163503540-0288[3]PIN-NO2
173503540-0122[4]PIN-NO3
183524750-0190[2]PLATE-SIDE
183524750-0370[2]PLATE-SIDE
193524750-0179[6]PLATE-SIDE
203524750-0219[8]PLATE-SIDE
21PKT507028[2]CAGE-NEEDLE
22PKT506532X[3]CAGE-NEEDLE
23PBN506006HSCX[4]CAGE-NEEDLE
24P1R455028[2]RING-INNER
253503370-0241[4]BUSHING
2635050BAA-024[1]RING-THRUST
2635050BAA-024[2]RING-THRUST
273503160-0105[1]RING-THRUST
29OSBM16100[28]SCREW-HEX
30OSBM820[12]SCREW-HEX SOC HD
32OBP12[3]PLUG
33PAC6037[2]BEARING
K034.P353[1]SEAL
N035.3526330-0017[1]SHIMNOT USED
N035.3526330F0028[1]SHIM(2.5T)
N035.3526330G0028[1]SHIM(2.65T)
N035.3526330H0028[1]SHIM(2.7T)
36OSPV425[3]PIN-SPRING
36OSPV625[3]PIN-SPRING
37ORR42[4]RING-SNAP
4235050BAA-042A[1]SHIM(0.5T)
4235050BAA-042B[1]SHIM(1.0T)
44OSR45[2]RING-SNAP
45PWR95[1]CLIP
46PWR130[1]CLIP
47PSR300[1]RING-SNAP
48OSR40[1]RING-SNAP
K081.PCPP323[1]O-RING
K082.PCPP378[1]O-RING
S.3521120-0031[1]CARRIER SUB-NO1
S.3521120-0053[1]CARRIER SUB-NO1
S.3521120-0033[1]CARRIER SUB-NO2
S.3521120-0062[1]CARRIER SUB-NO2
K.3502255-0134[1]SEAL KIT(034,081,082)

  • Description


The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.

  • Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
