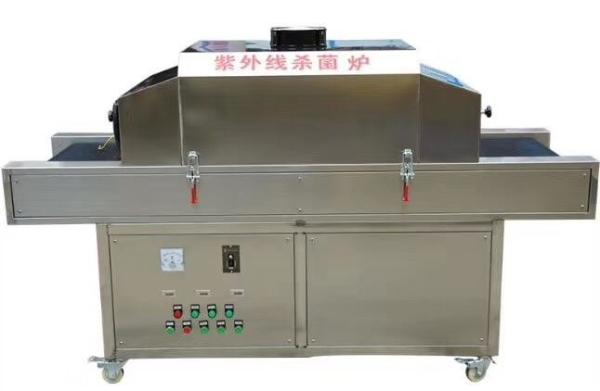

Environmental Test Chamber UV Sterilizer with High-Quality 304 Screen Stainless Steel

Product introduction of Environmental test chamber

Ultraviolet disinfection technology is the latest generation of disinfection technology emerging in the late 1990s. It integrates optics, microbiology, electronics, fluid mechanics, and aerodynamics. It has the characteristics of high efficiency, broad spectrum, low cost, long life, large water volume, and no secondary pollution. It is internationally recognized in the 21st century. Mainstream consumer technology.

Advantages of UV disinfection technology

The disinfection effect of ultraviolet C disinfection technology on bacterial viruses and other pathogens has been recognized worldwide, and it has unparalleled bactericidal efficiency. The germicidal effect of ultraviolet rays on bacteria and viruses is generally within one second. For traditional chlorine and ozone methods, it takes 20 to 50 minutes to achieve the sterilization effect of ultraviolet rays. It has a broad spectrum of efficient sterilization, no secondary pollution, safe and reasonable design, safe and reliable operation. Simple maintenance and low cost. This equipment occupies a small area and has no noise. Continuous mass sterilization. Wide application fields and many other advantages

Product parameters (according to customer requirements)

1. Total equipment length: 2000mm

2. Working area length: 1000mm

3. Feeding operation area: 500mm Discharging operation area: 500mm

4. Height of entrance and exit: 200mm

5. Conveyor width: 500mm

6. Conveyor belt from the ground: 750 ± 20mm

7. A total of 16 lamps are installed in the sterilizer, each power: 20W)

Product main configuration and structure

1. Work area tunnel body: high-quality 304 screen stainless steel

2. Working area tunnel cavity: mirror stainless steel Model: # 304

3. Body support frame: one set of Fangtong Steel Model: 2 ″ Fangtong

4. Air transport system: a set of forced air transport exhaust fans (extracting harmful gas) Model: 6 inches

5. Thermal insulation material: Vacuum aluminum silicate + silk cotton double layer Model: 60K

6. Conveyor belt: Teflon mesh belt 1. Main switch: 20A

7. Transport motor: 800W (inverter speed regulation)

8. Speed ​​governor: 500W (electronic stepless inverter speed regulation digital display speed operation)

9.Exhaust fan: CY-125

10. Ammeter: 50A set

11.Voltmeter: 220V one set

12. Working voltage: 200V--220V (± 5) Three-wire system 50Hz

Effective light moment of ultraviolet light source: 150mm

Tube length 460mm

16 UV germicidal lamp tubes * 20W UV lamps are located in the inner cavity longitudinally, and are installed on the top, bottom, left and right

The wavelength is 253.7nm, and the radiation intensity at a distance of 1 meter is more than 160 microwatts per square centimeter. Life is 8000 small

More than hours.)

UV Weathering Test Chamber.pdf
